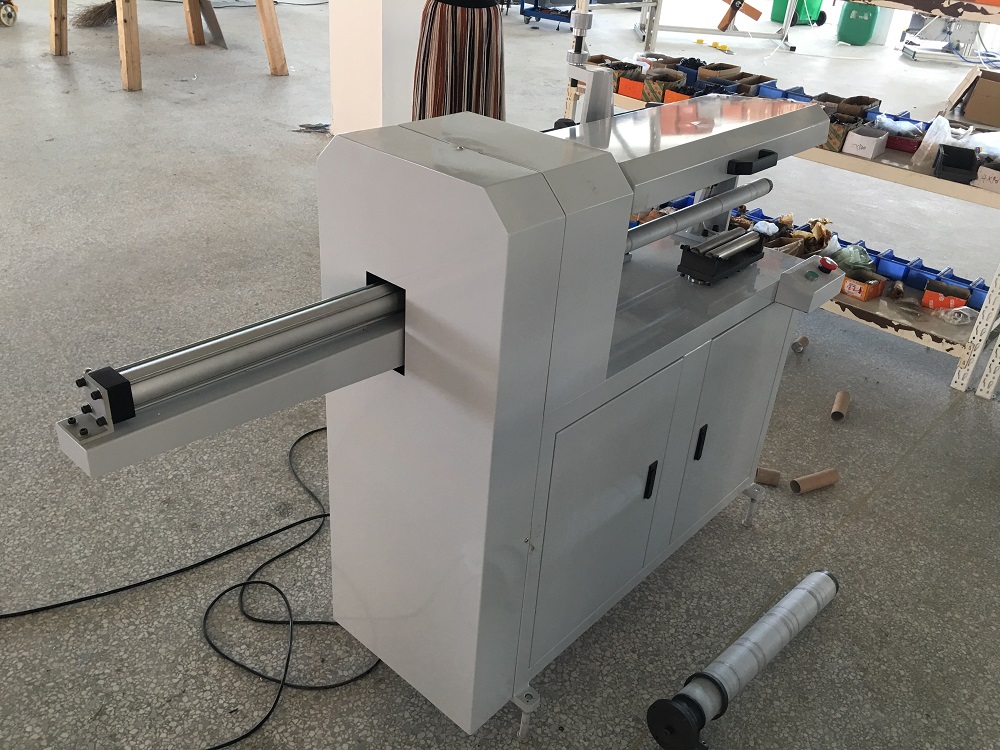

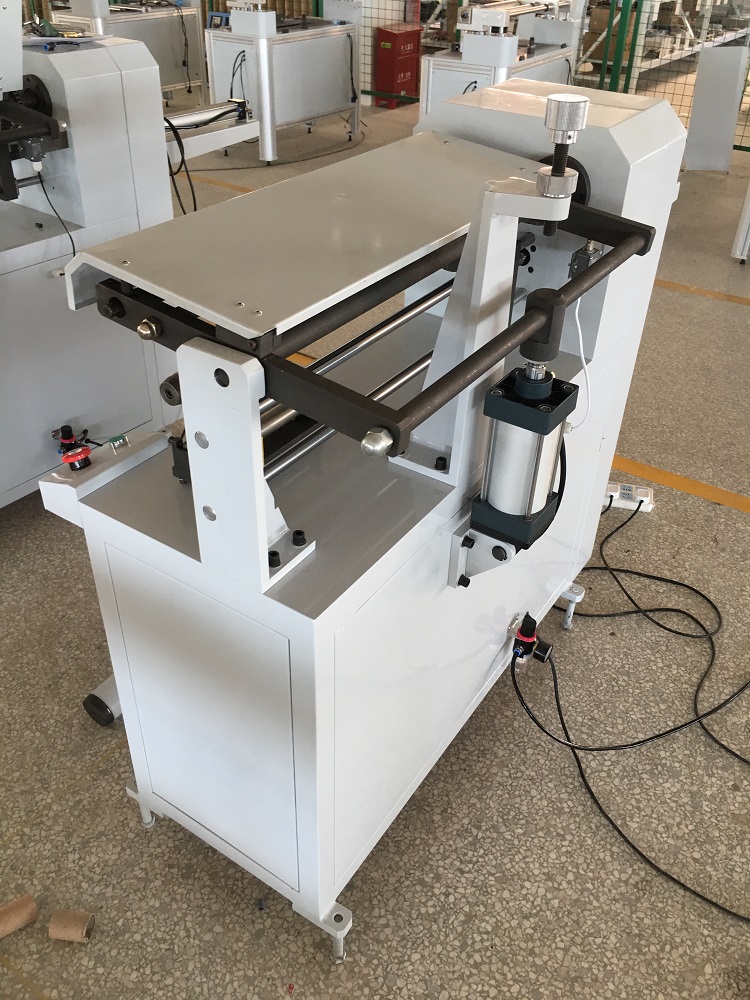

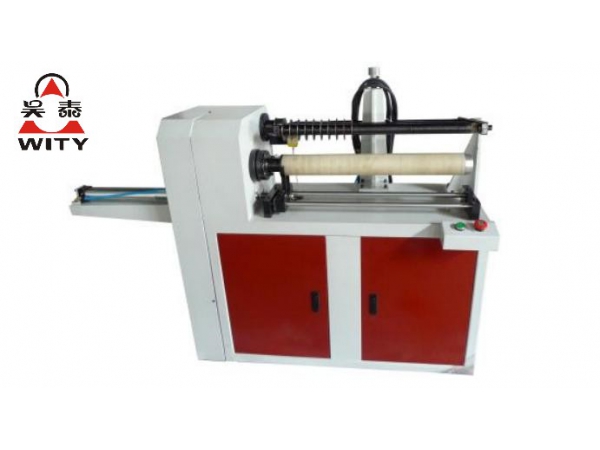

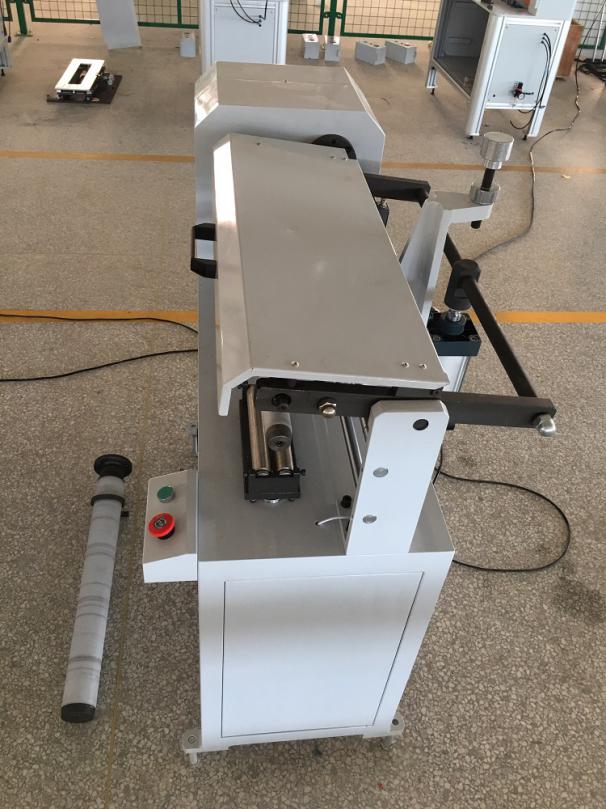

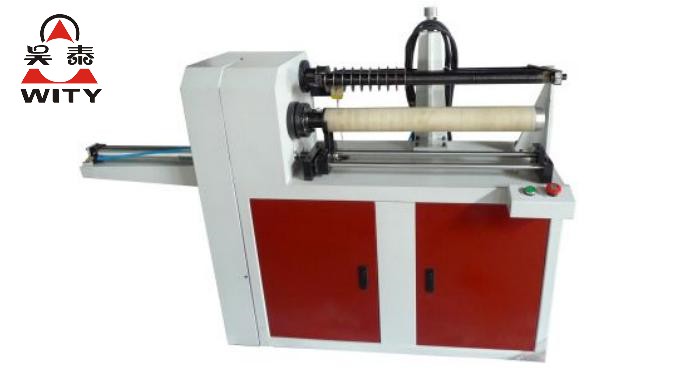

CC-600 Core Cutter
CC-600 Core Cutter CC-600 Core Cutter CC-600 Core Cutter CC-600 Core Cutter

CC-600 Core Cutter

CC-600 is used specially for paper core cutting in different thickness and different diameter, can make according to user’s requirement.

Inquiry
Website

Features



1) CC-600 is suitable for paper core cutting automatically and output automatically.

2) cutting depth can be controlled, the position of depth adjustment is high accurate.

3) convenient and fast operation, one button can run the motor, cutting on & off and discharge the paper core.

4) compact structure, fast speed and steady running.



Main Technical Specification



Max slitting width

600mm

Min slitting width

23mm (10mm need special made)

Paper core inner dia.

25-120mm

Paper core thickness

2-6mm

Blade dia.

76x25.4x1.2 / 76x45x1.2

Motor

1.1kw

Power supply

220V, 1P, 50Hz

Air

5kg/cm2

Weight

400kgs

Packing dimensions

1800 x 800 x 1500mm
