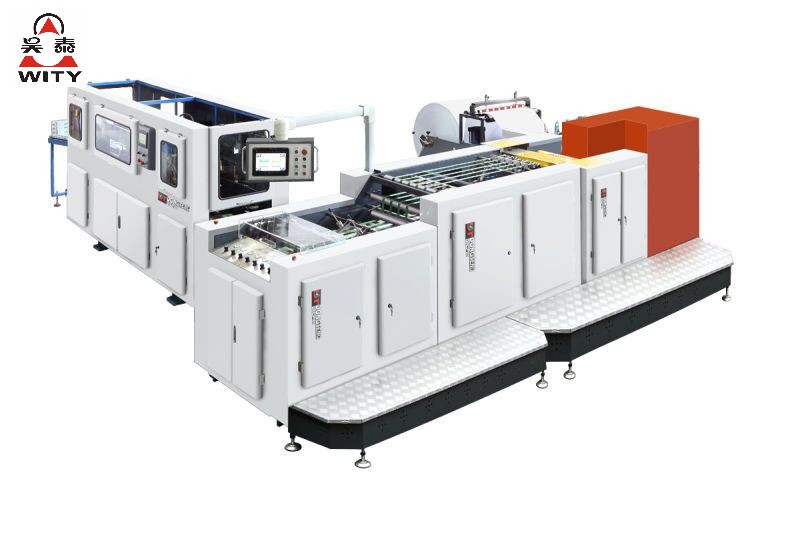

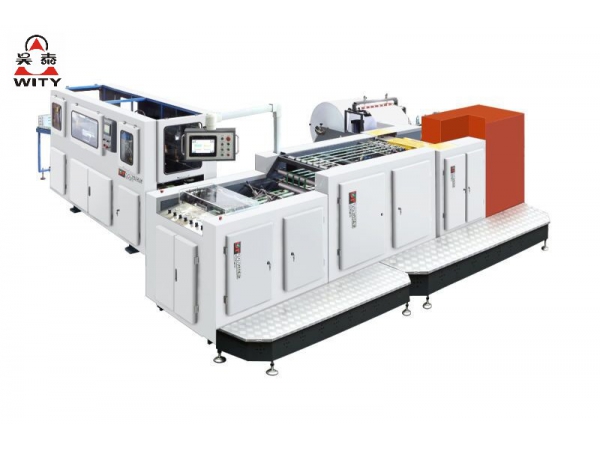

Model

DTCP-A4-5

Sheeting Unit

Unwinding Paper Reels

1

Number of vertical Cutting

4 group

Max. Gross Width of Paper Roll

845mm

Net Cutting Width

840mm

Diameter of Paper Roll

400-1200mm

Diameter of Core Chuck(mm)

3”(76.2mm)

Paper Thickness

60-100gsm

Length of Sheeted Paper

297mm

Paper Quantity per Ream

300-500pcs

Max. Ream Height

65mm

Trimming width

Both side at least 2.5mm

Working Speed of paper feeding

250--300m/min

Working Cutting Speed

1010 times/min

Ream Discharging speed

6—8 reams/min

Max. Knife Loading

400 (4×100)gsm

Paper cutting accuracy

Length:±0.2mm; width:±0.1mm, angle:±0.08%

Requirement for paper Reel

1.Stable Speed  2. Paper roll with no breakage  3. Qualified paper

Transmission

AC Frequency conversion, stepless speed regulating

Main power source

380v/50Hz 3phase 4 wires

Control voltage

220V AC/24V DC

Total Power

10kw

Overall Dimension

6.8x6.6x1.8m

Weight

10T

Wrapping Unit

Production Speed

6--8 reams/min

Motor power

5.1kw

Gluing power

3.7kw

Compressed air

0.6—0.8Mpa

Over wrapping Paper size

550-560×386mm

Overall Dimension

4.53x3.05x1.45m

Weight

2.5T
