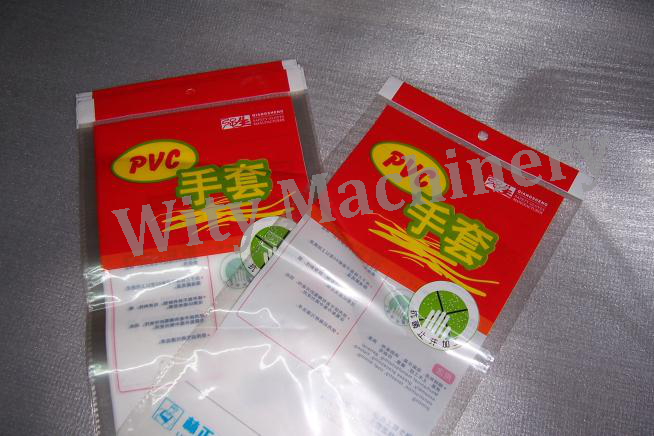

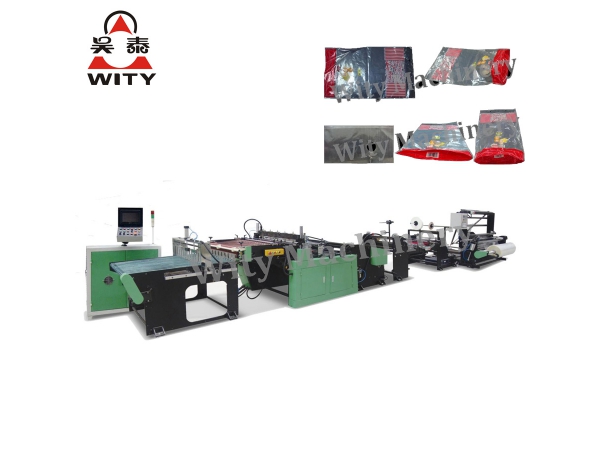

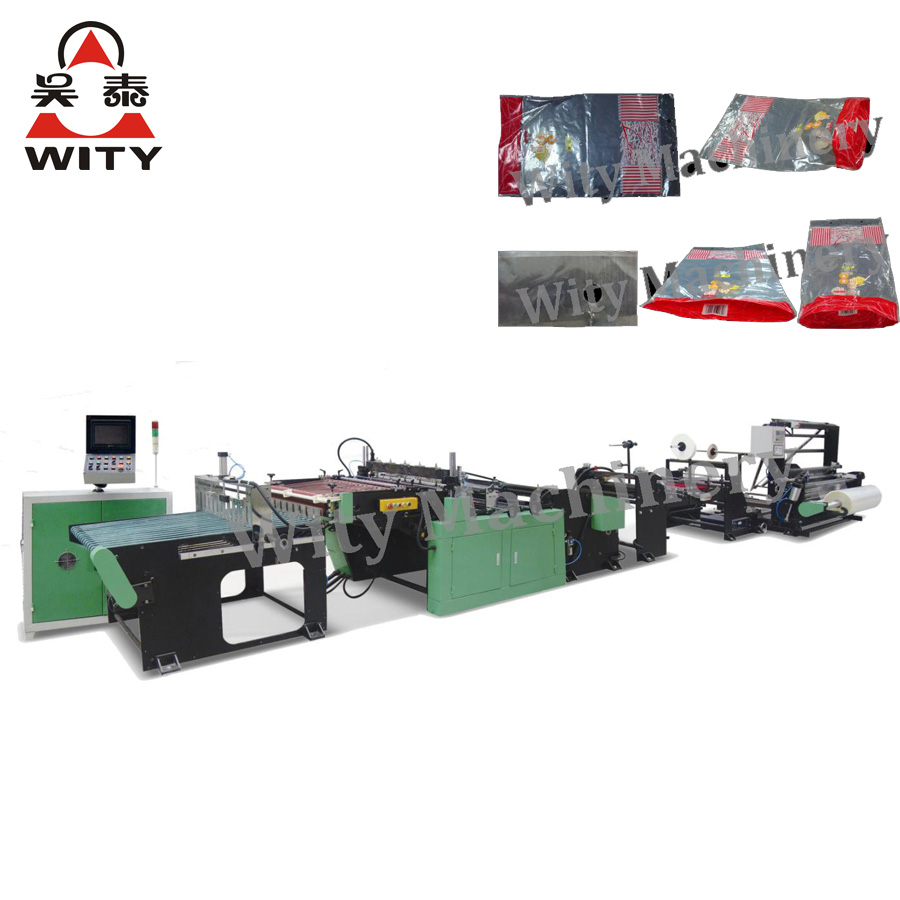

This machine is suitable for various kind of material such as BOPP, CPP, LDPE, HDPE, POF & laminated film,etc, which with printed or without printed. It is a kind of ideal equipment for making Stationery bag, ornaments bag, garment Bag, food bag and hang bag.
Features:
1. Touch screen operation, PLC control, with the function of photocell tracking, fixed-length, automatic counting, automatic stop of material breaking off, alarming when the color-mark is lost , automatic stop until the sealing in the highest position.
2. Adopt two sets of YASKAWA brand servo motors driving.
3. Driving system adopts 3 sets of YASKAWA brand frequency inverter
4. Printed bags tracking use Taiwan brand photocell switch

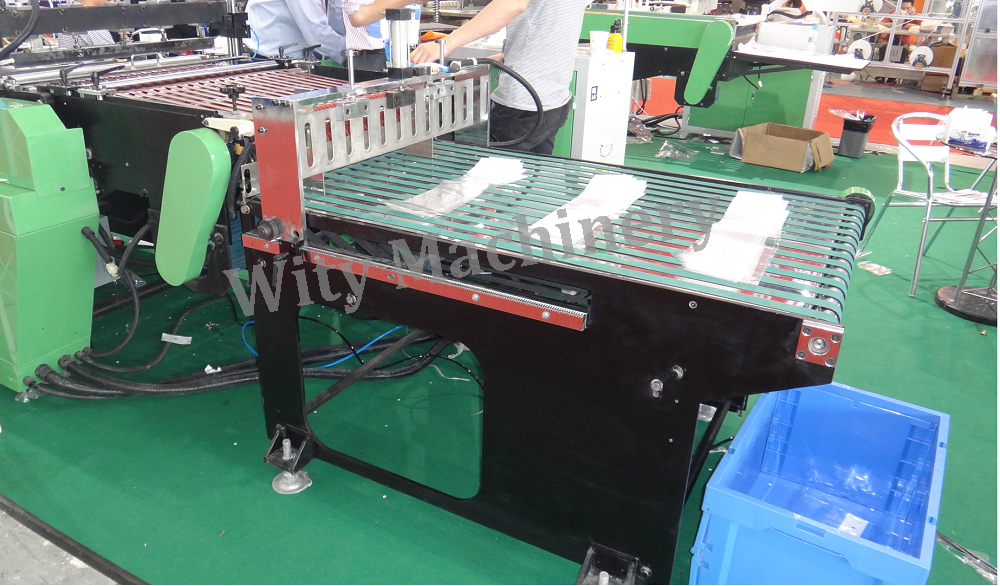

5. Equipped with automatic bag stacking device ,stepping motor driving, manipulator assist bag feeding .
6. Unwinding adopt air shaft, pneumatic type material loading, automatic constant tension control, the analog correction with Italy brand photoelectric make the material feeding accurate and smooth
7. Equipped with ultrasonic unit, double folding device, bottom M shape insert device,pearlized film insert device pneumatic punching device and synchronous double adhesive tape adding device.
8. Equipped with 8mm round hole puncher
