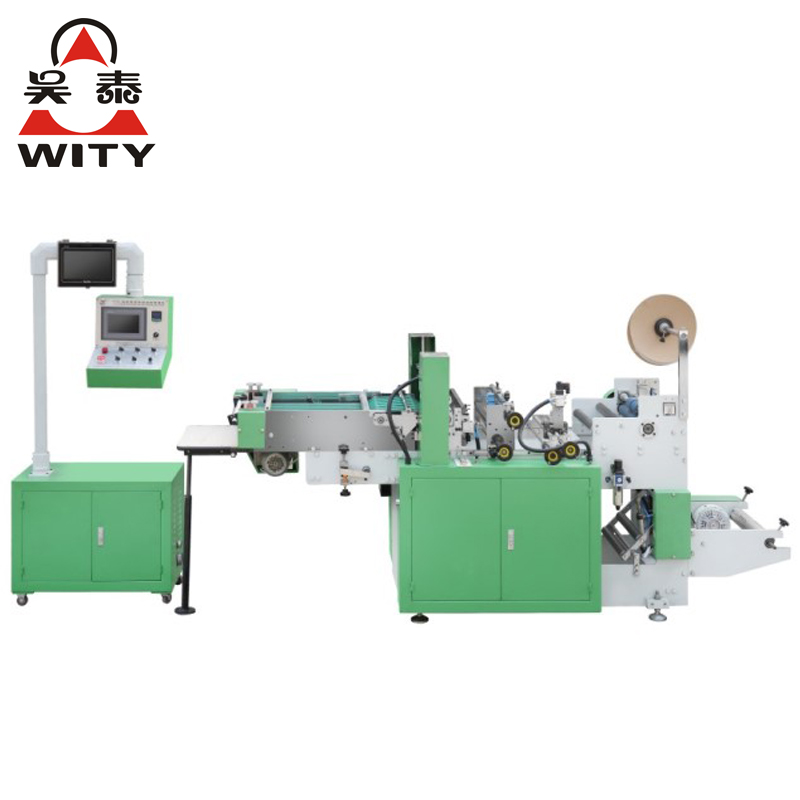

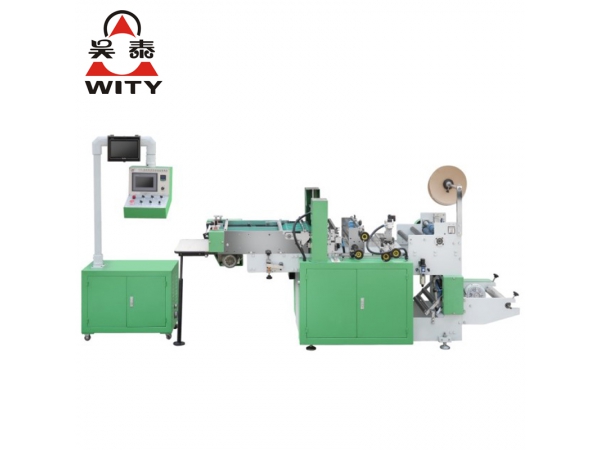

This machine is specially-made for ultra-narrow bag. The speed can reach up to 400pcs per minute and it can produce 20-150mm width of ultra-narrow OPP side sealing bag, which are used for packaging hairbrush, pen refill, accessories and other long and thin goods.
Features
1. Touch screen operation, motion controller programming.
2. Full smart linkage, imported servo motor driving, imported photocell for mark tracking;
3. Adopt air shaft unwinding and magnetic powder brake for tension control.
4. Specially-developed high-speed mute drive system;
5. Achievable double adhesive tape, hole punching and bag making completed by one time;
6. Optional pearlized film inserting device, ultrasonic embossing device and film folding machine with web-guiding.
Main specification
Model | DRQ350 |
Material | OPP , PE , PP |
Unwinding diameter | Ф550mm |
Bag making width | ≤300mm |
Bag making length | 20-200mm |
Max. speed | 400pcs/min |
Voltage | 220V/50hz |
Total power | 3KW |
Weight | 700KG |
Overall dimension | 2900×1400×1750mm |
