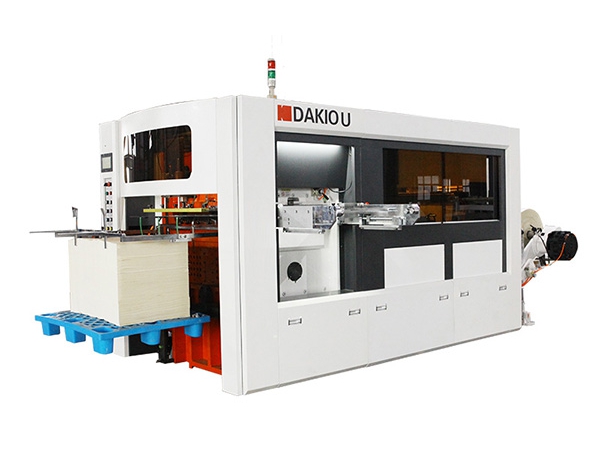

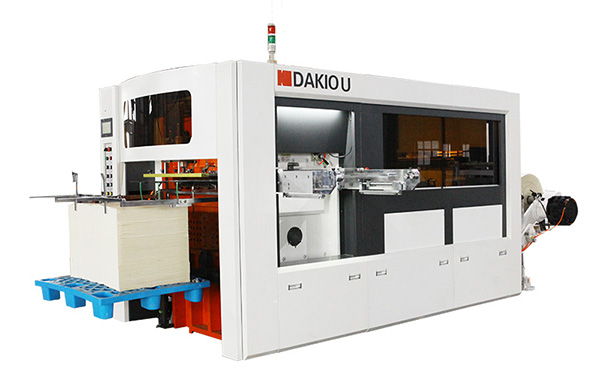

Designed to die-cut, crease and emboss various materials including PE coated paper, white cardboard, kraft paper and corrugated paper, this high speed die cutting creasing embossing machine is suitable for manufacturing paper cups, paper boxes, paper bags, medical packages, food packages and other eco-friendly packaging.
| Model | PY-950 | PY-1200 |
| Paper width | 950mm-400mm | 1200mm-400mm |
| Max. roll diameter | 1800mm | 1800mm |
| Cutting precision | ± 0.10mm | ± 0.10mm |
| Production capacity | 150-200 times/min | 150-200 times/min |
| Max. cutting size | 950 x540mm | 1200 x640 mm |
| Applicable materials | 100-800g/m2 white cardboard, PE coated paper, kraft paper, etc. | 100-800g/m2 white cardboard, PE coated paper, kraft paper, etc. |
| Max. cutting pressure | 350T | 350T |
| Power | 14.5KW | 14.5KW |
| Total weight | 6.3T(standard) | 8.4 T (standard) |
| Overall dimension | 4200 x 2100 x 1850 mm | 4200 x 2100 x 1850 mm |
| Working air source | Air pressure: 0.6Mpa; | Air pressure: 0.6Mpa; |
| Working air: 0.3m³/min; | Working air: 0.3m³/min; | |
| Other sizes can be customized. | ||
