Features:
lUnwinding system with automatic web-guiding system.
lPLC and touch screen control

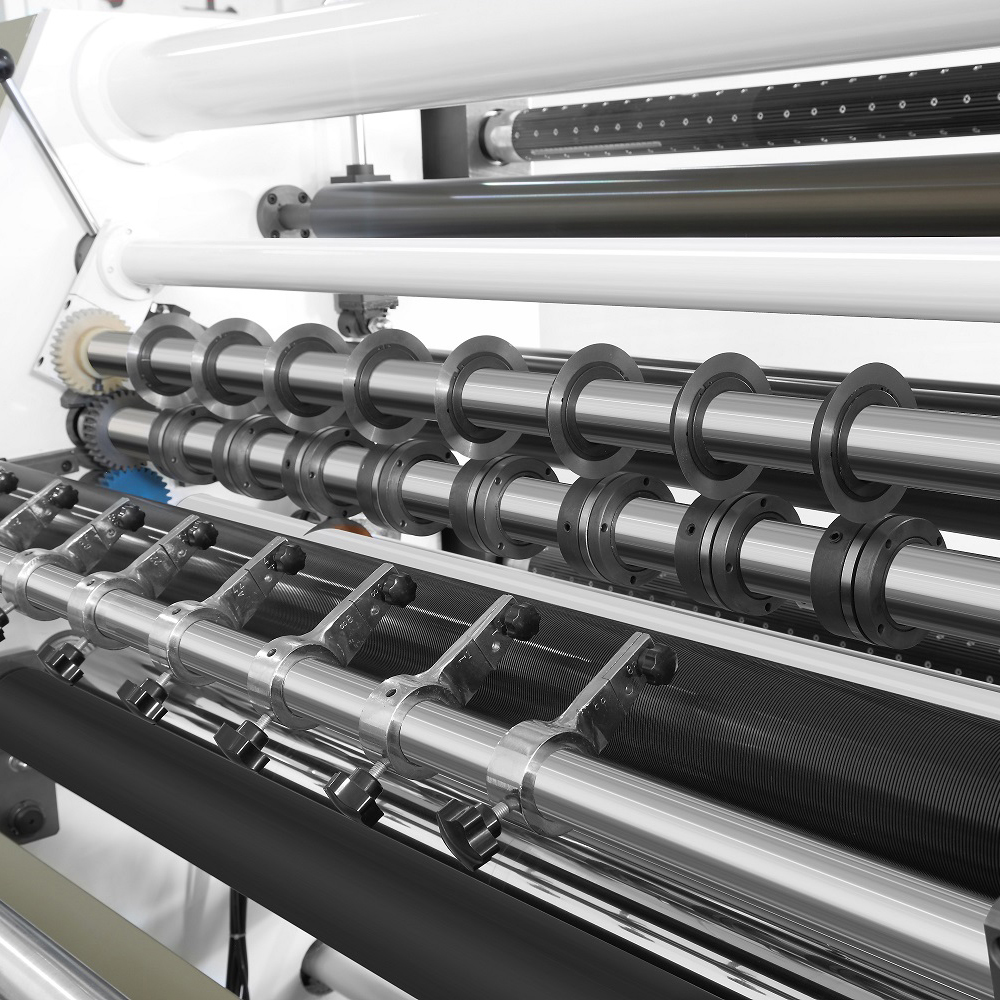

lRound blade and razor blade slitting device
lRewinding pressing roller self-weight lay-on type
lCantilever type rewinding structure
Parameters:
Model | FQL1300 |
Slitting material | 15~150um plastic film or paper |
Slitting width | 50~1300mm |
Mechanical speed | 220m/min |
Slitting speed | 200m/min according material |
Max unwinding diameter | ￠600mm 3 inch air shaft |
Max rewinding diameter | ￠500mm 3 inch air shaft |
Main motor | 5.5kw frequency conversion motor |
Rewinding tension | 2*50NM magnetic clutch |
Waste blowing fan | 0.75kw 3 phase |
Driven style | Synchronous belt and triangle belt |
Guiding roller | ￠80 AL alloy roller HV700 type |
Machine structure | Cast iron and steel plate |
Web guiding range | 120mm error±0.5mm |
Voltage | AC 380V 3P 50Hz (or other request) |
Machine weight | About 2500kg |
