Features
The machine is designed and manufactured by the standard of “GMP” in medical industry and “QS” in food industry.
This machine can do forming, punching and blanking at the same time to avoid the cross-contamination of product.
The forming heating plate can open and close automatically, also can delay to start, so as to control and lower the waste of the material during the production.
Easy to replace the mold, application to different specifications of products.
Design the mold according to customer’s requirements.

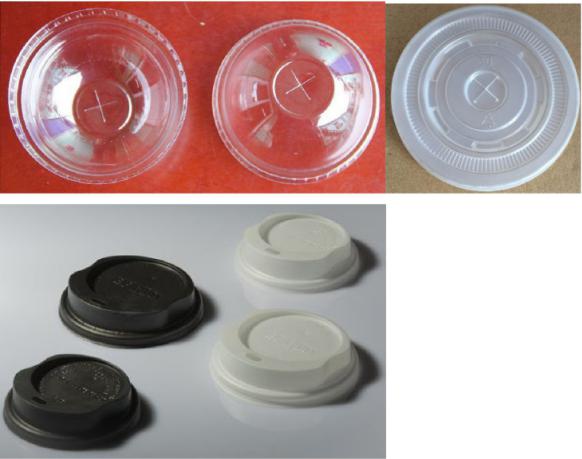

Applicable projects: the material of HIPS, PVC, PET, PS.
Main technical specification
Cutting Frequency | 15--45(times/min) |
Power | 380v/220v/50HZ |
Stroke adjustable range | 60--280mm |
Max. Forming Depth | 45mm |
Max. Forming Area | 430×280mm |
Motor Power | 3kw |
Consumption | >042m3/min |
Pressure | 0.4--0.7mpa |
Overall Dimensions | 3500x1000x1700mm |
Weight | 1500kg |
