Features
Main engine frequency for speed adjustment, PLC touch screen control system, auto counter quantity, auto fixed length, auto machine stop when had alarm, auto tension control function.

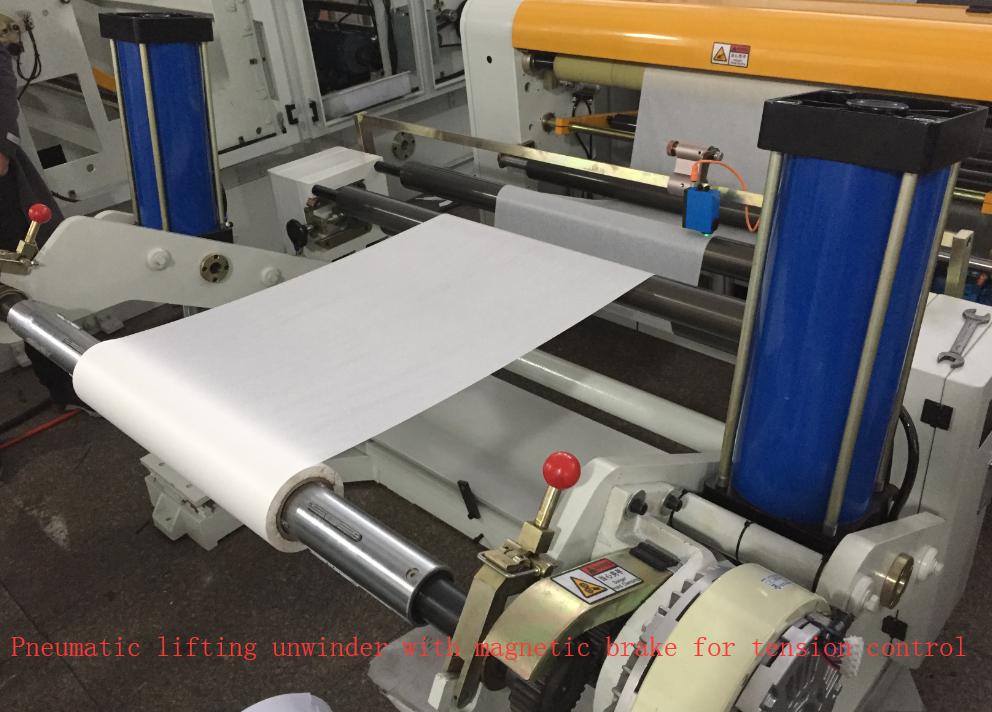

Feeding roll uses auto loading system (150’ pneumatic cylinder), 3’ air shaft (76mm paper tube core)

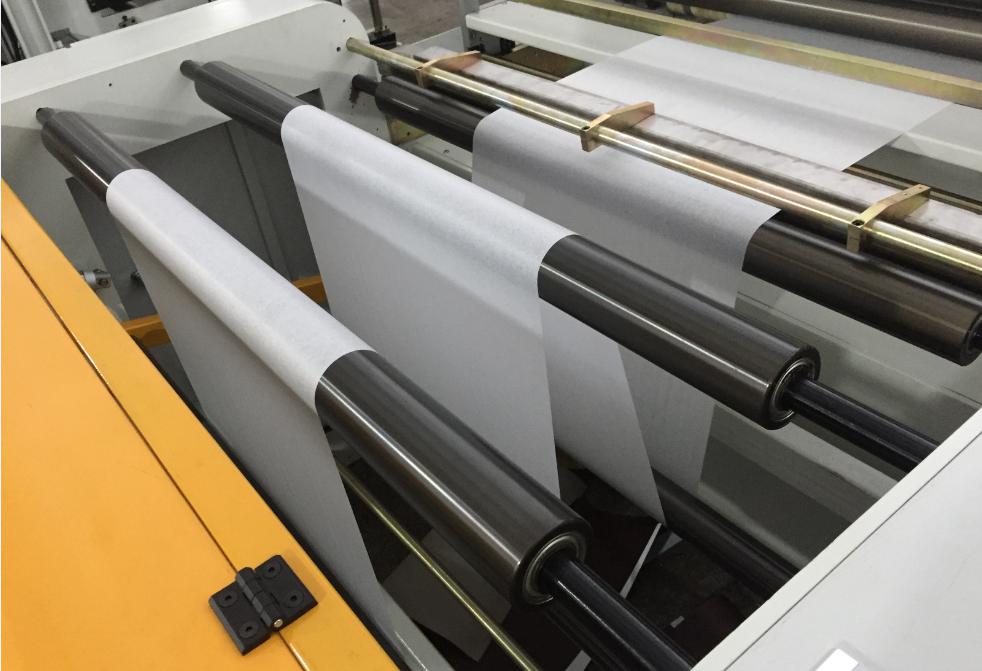

Machine rock uses 10mm thick steel plate with groove steel structure. Bottom of cutting knife uses heavy casting structure, guide rollers uses static balanced aluminum alloy guide roller.
Traction drive fixed position uses servo motor system, traction driver roller uses steel structure. Feeding traction way is to move the chain wheel to drag the rubber roller through motor. The receiving platform is normal table.
Main specification
Model | HQJ-1100B | HQJ-1400B |
Max. Diameter of Unwinding | Ø1400mm | Ø1400mm |
Max. Cutting Width | 1100mm | 1400mm |
Cutting Length | 20-1500mm | 20-1500mm |
Precision | ±0.2mm | ±0.2mm |
Machine Speed | 10-200 cut per minute | 10-200 cut per minute |
Cutting Speed | 150-170 cut per minute | 150-170 cut per minute |
Total Power | 8KW | 10KW |
Machine Weight | 1700KG | 2100KG |
Overall Dimension(LxWxH) | 5400*1900*1400mm | 5400*2200*1400mm |
