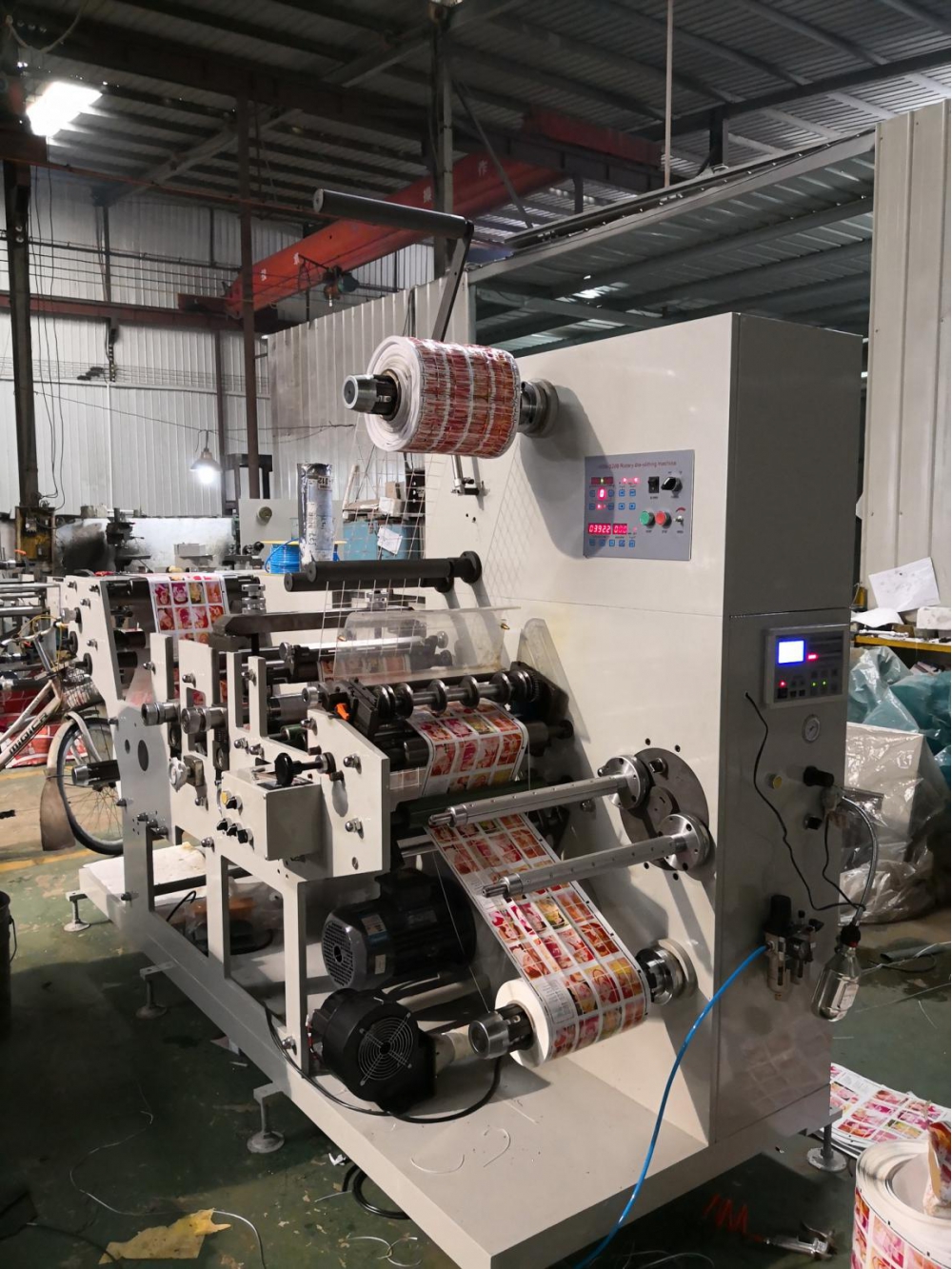

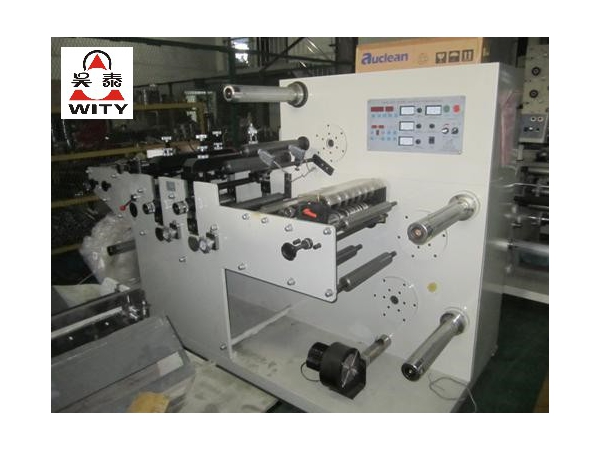

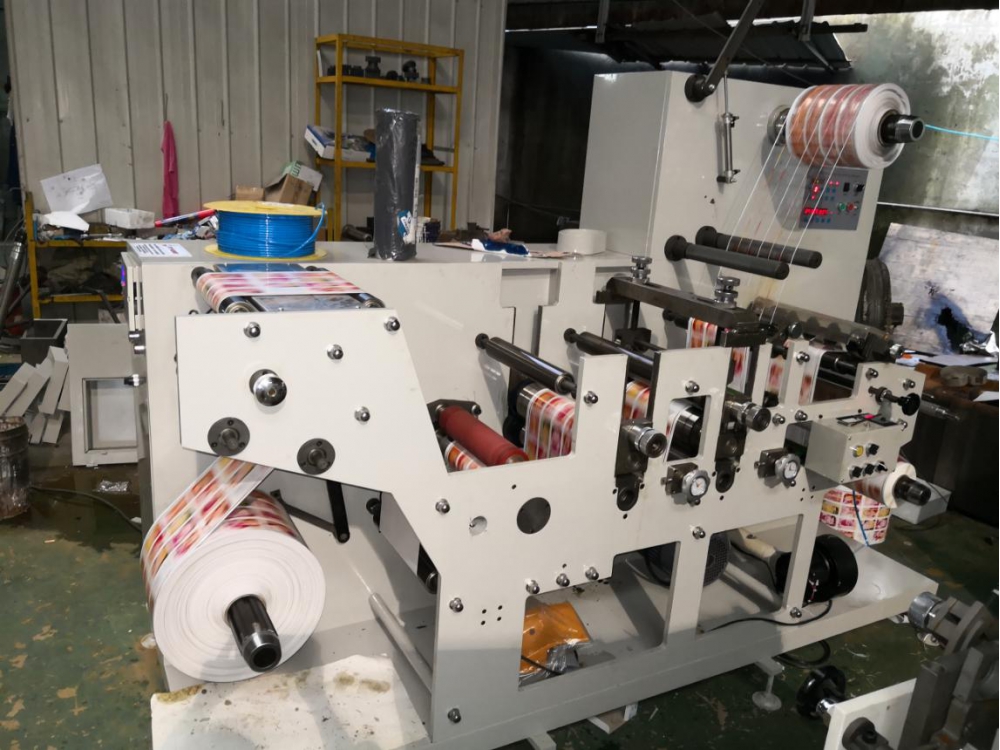

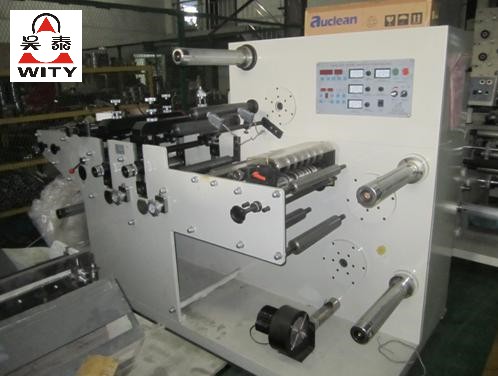

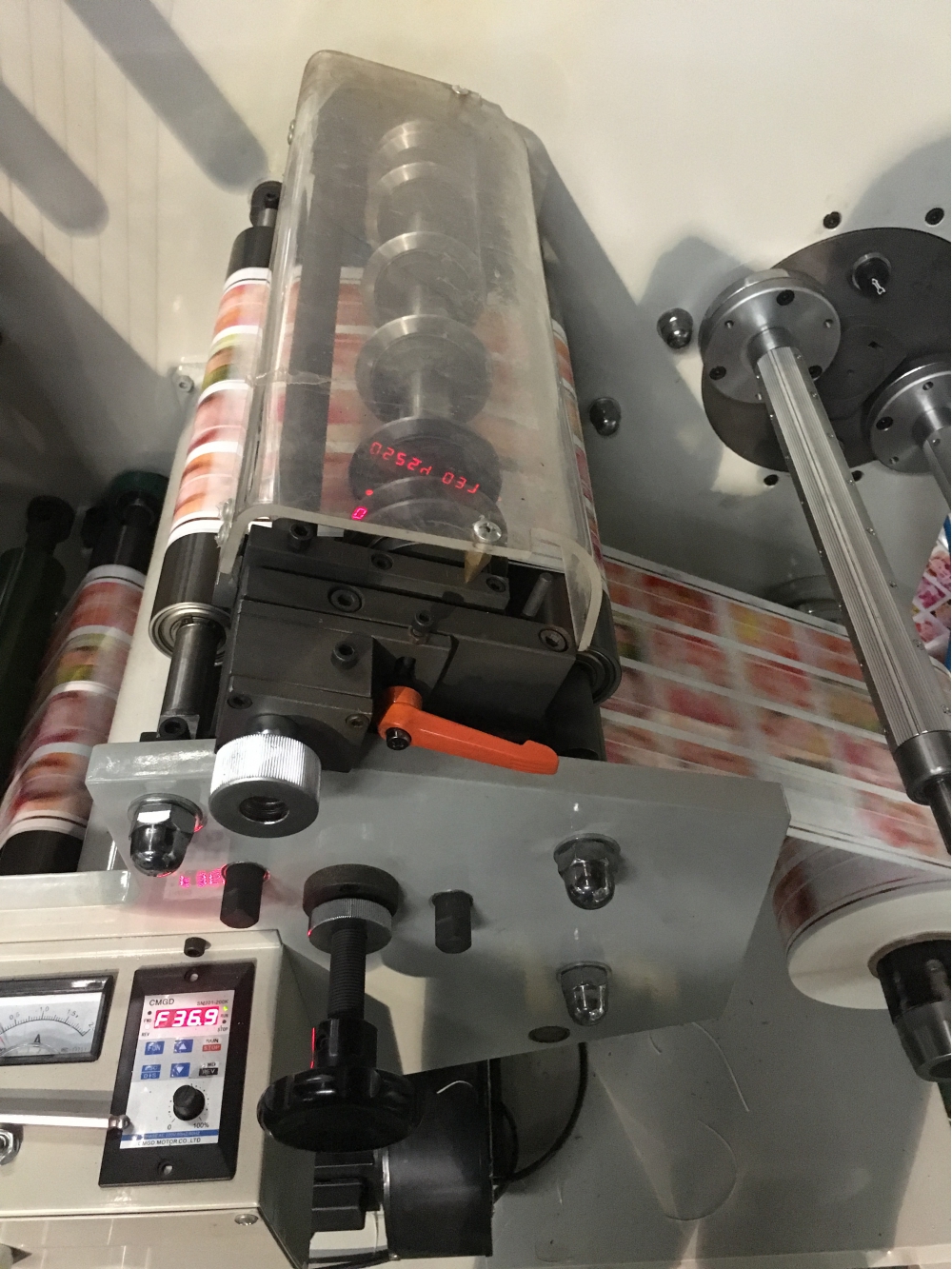

HSN-320-2 slitting machine with rotary die-cutting function is a new product, it is equipped with high accurate rotary die-cutting system. This machine is suitable for blank adhesive labels. Die-cutting, slitting can be finished in one process. It has the function of automatic meter counting, automatic stopping, web guiding by photoelectric eyes. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.
Main Technical Specification
Slitting speed | 75m/min |
Die-cutting speed | 70m/min |
Max web width | 320mm |
Max unwinding diameter | 600 mm |
Max rewinding diameter | 500 mm |
Die cutting length | 178mm-470mm |
Platform width | 400mm |
Overall diameter | 2.14mx1.02mx1.52m(LxWxH) |
Machine weight | 600kg |
Power of machine | 3KW |
Standard configuration
a) One slitting station
b) With 1pc 3’’ unwinding shaft, 2pcs 3’’ rewinding shafts.
c) With meter/number counter.
d) With two photoelectric eyes
e) With 8 pcs rotary knife.
f) One magnetic brake, two magnetic clutches
g) Machine has blower fan to blow away the trimmed sides.
h) Two Die cutting station
