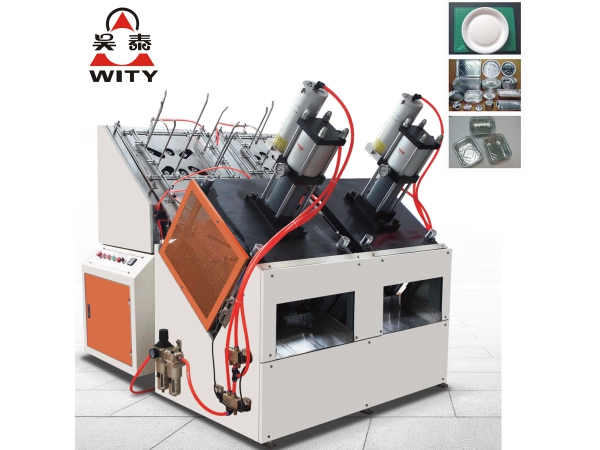

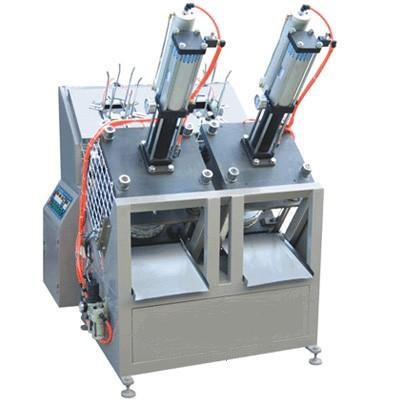

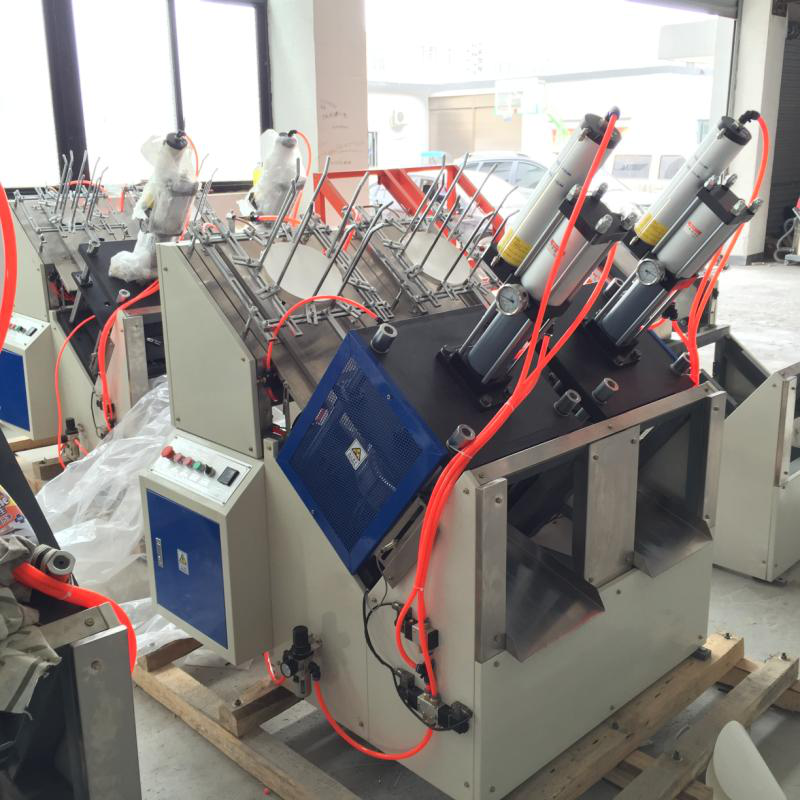

Hydraulic paper plate forming machine is designed according to the specific needs of customers. It is mainly used for the production of large dimensions, as well as the use of extra-thick paper as raw materials of paper plate. According to the specific paper plate size and paper material thickness, the machine will use the different pressure cylinder and also the machine size will be designed accordingly.
Main technical specification
1. Max. Rectangle plate size: 310x460mm,
Max. Round plate size: 430mm.
2. Thickness of the material: 1-3mm （paper board, white and grey paper ivory board, combined aluminum of paper and others）
3. The speed of the machine: 10-20pcs/min
4. Voltage: 220V/380V, 50HZ
5. Total power: 3KW
6. Weight: 800kg
7. Packaging size: 1820x1140x2000mm
1220x1120x1450mm
8. Air supply requirement: 0.6Mpa
9. Working pressure: 25-30Ton
10. Gas volume: 0.2-0.4m³/min
