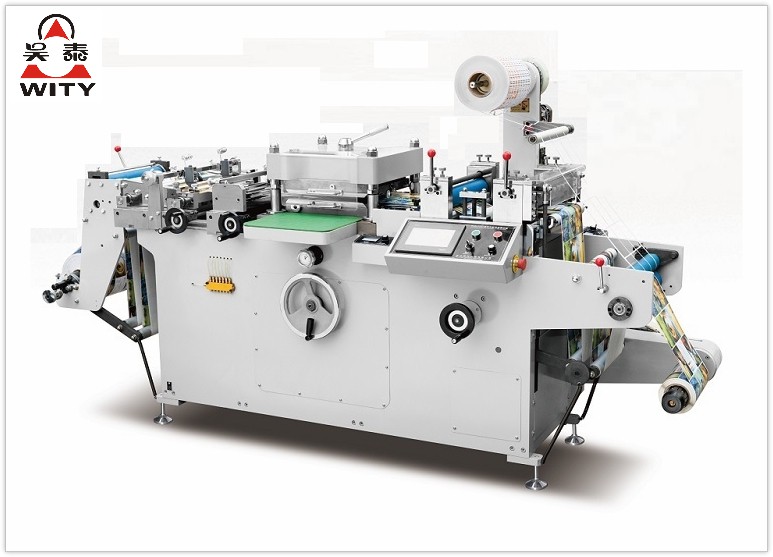

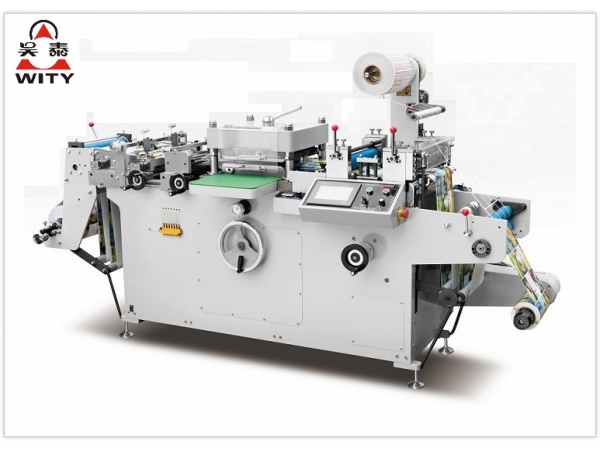

It adopts micro-computer control for accurate flatten die cutting, material feeding, and sheeting, with 3 points photocells for web-guiding and tracking. Die cutting, waste collecting and finished-material sheeting or rewinding are on one process. The machine could be used for die cutting adhesive paper, dacron label and laser hologram label. It is the ideal auxiliary equipment of flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine.
Features
a) Servo Motors are equipped for accurate material transmission.
b) Touch Screen for convenient operation
c) Frequency Converter used for speed regulation
d) 3 pcs of Photocells are used for web guiding and print mark tracking
e) Lamination shaft, sheeter device, rewinder are equipped for multi purpose.
Optional Parts
a) Punching device;
b) Laminating device;
c) hot-stamping device
d) Inline slitting system
Main Technical Specification
Model | 320G model | 420 model |
cut speed | 20-300 strokes/min | 20-300 strokes/min |
Max unwinding diameter | 500mm | 500mm |
Max web width | 320mm | 420mm |
Max die-cut width | 300mm | 400mm |
Max die-cut Length | 300mm | 400mm |
Position accuracy | ±0.1mm | ±0.1mm |
Total power | 3.5kw | 4.5kw |
Power voltage | 220v±10% | 380v |
Machine weight | About 1700kg | About 2300kg |
Overall dimension | 2600×990×1.400mm | 2950×1350×1400mm |
