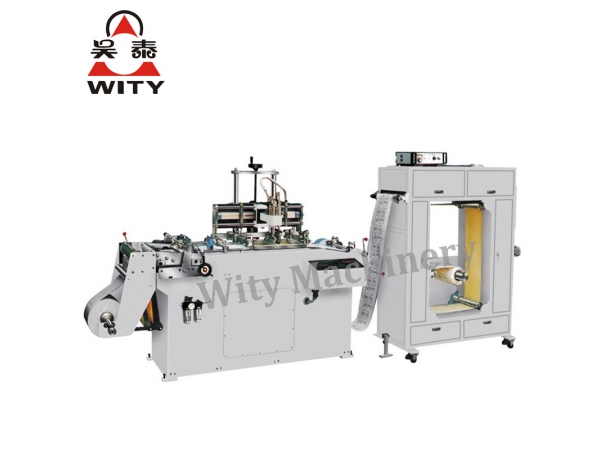

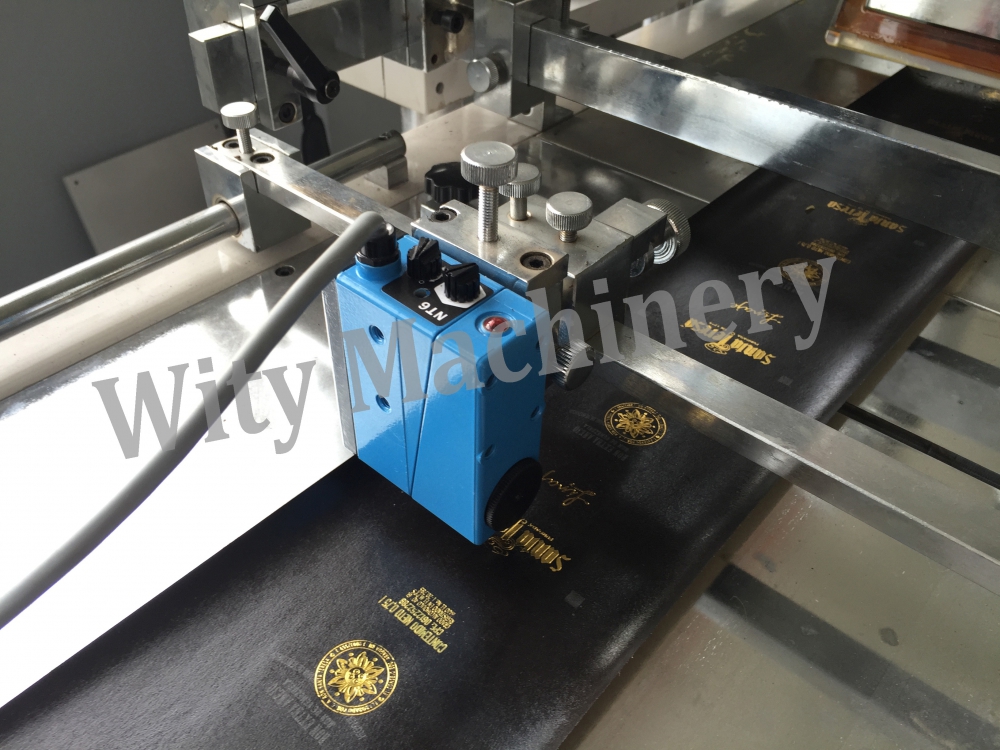

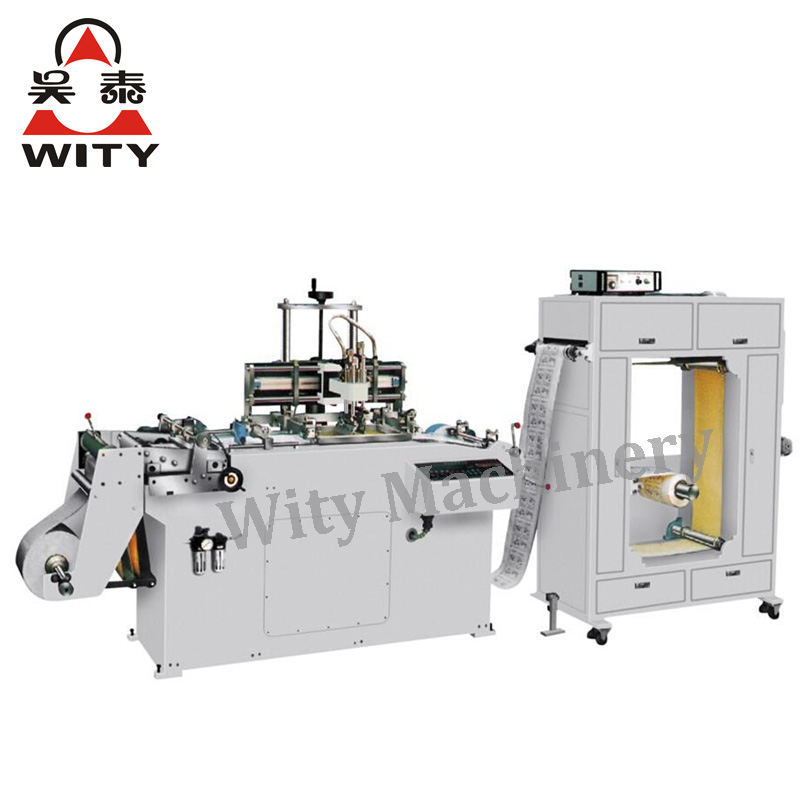

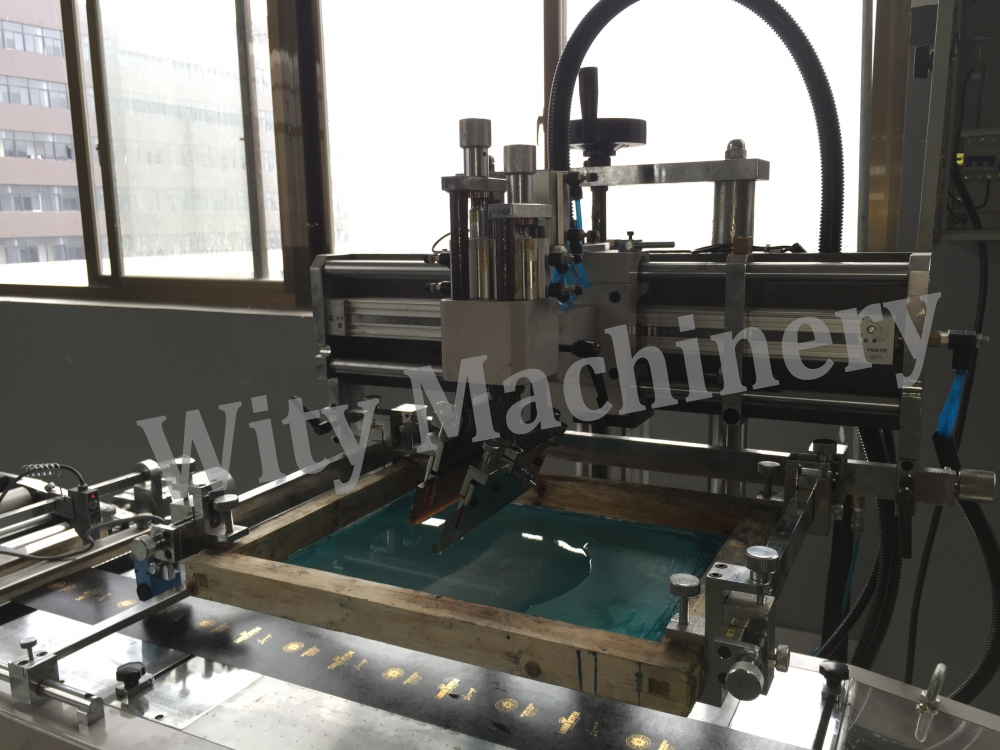

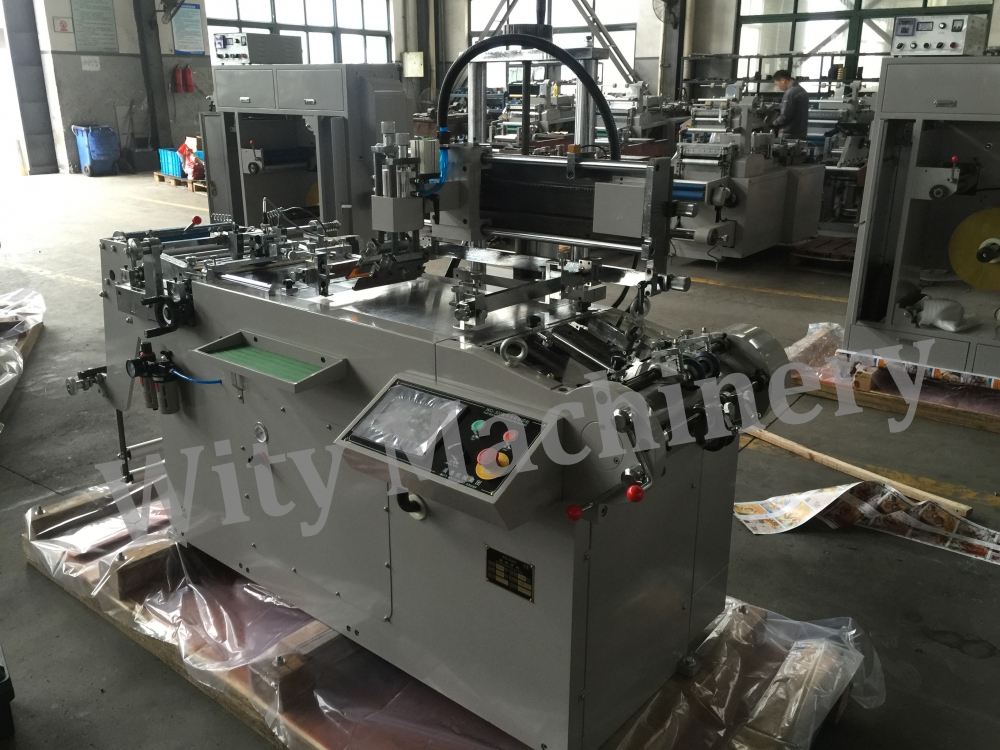

The machine is used for printing on reel material of PVC, OPP, Dacron, Security mark, adhesive tape, etc. The material transfer of the machine is controlled by servomotor, The scrape blade system adopted the servo motor driven The printing position is followed and controlled by photocell. Drying tunnel rewinder with frequency inverter for speed regulation PLC touch screen control The machine has the characteristic of high accurate chromatic, steady material-transfer, automatic counter and alarm
Printing speed | 10-50time/minute |
Max unwinding diameter | 450mm |
330mm | |
Max printing width | 300mm |
Max printing length | 320mm |
located precious | ±0.15mm |
main power | 1200w |
4100w | |
used air pressure | 4.5-6kg/cm2 |
main machine dimension | 2.4(L)×0.95(W)×1.5(H)m |
oven machine dimension | 1.75(L)×0.6(W)×1.8(H)m |
machine weight | about 1100kg |
