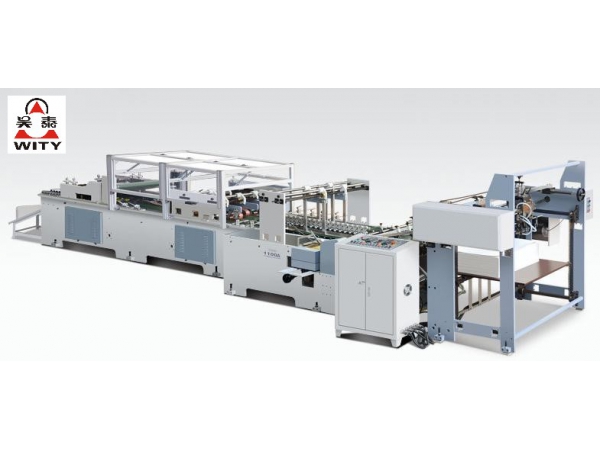

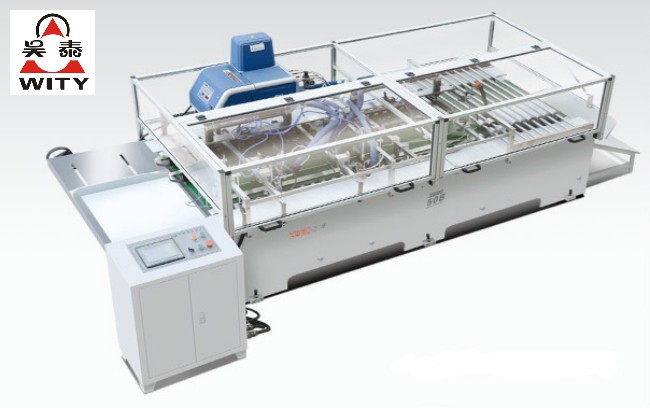

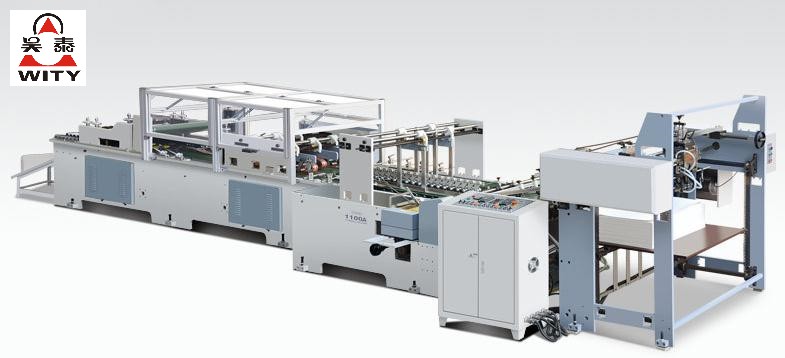

ZB1100A paper bag making machine is suitable for making different size of bags from different types of paper (raw material should be die-cut and creased paper sheets). Material can be automatically delivered by feeder, and the speed can be controlled by inverter. Through the process of automatic positioning, gluing, folding, and pressing, the finished product will be output as paper tube.
Feature This machine adopts precise automatic positioning system, and the speed is controlled by inverter. With precise screw adjustment, which can greatly reduce the adjusting time for making bags with different sizes. Adopts hot-melt gluing system, makes gluing process fast and firm.
Main Technical Specification Max sheet 1020x600mm L×W Min sheet 600x350mm L×W Paper thickness 150~350gsm Speed 70 bags/min Bottom thickness 60~150mm Glue type Hot-melt glue Power Consumption 6.5kw Total Weight 4000kg Machine Size 7500×2200×1500mm
