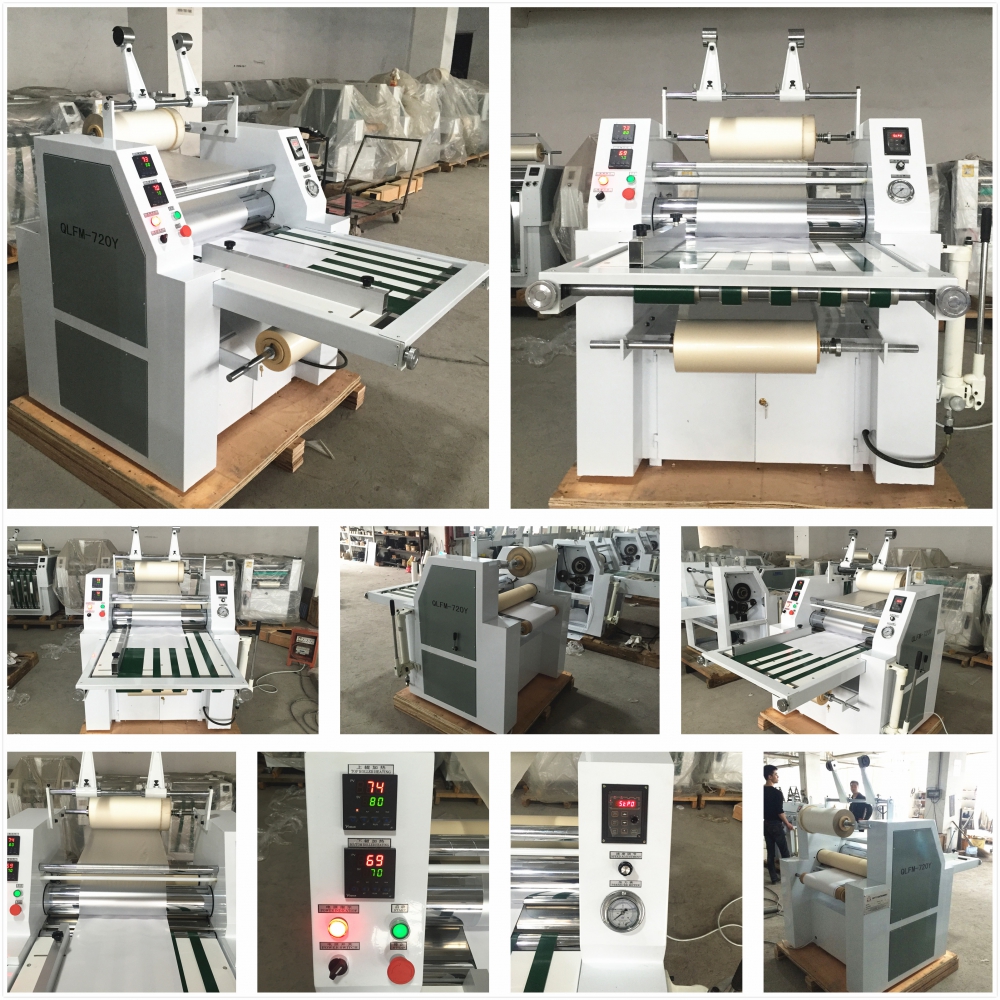

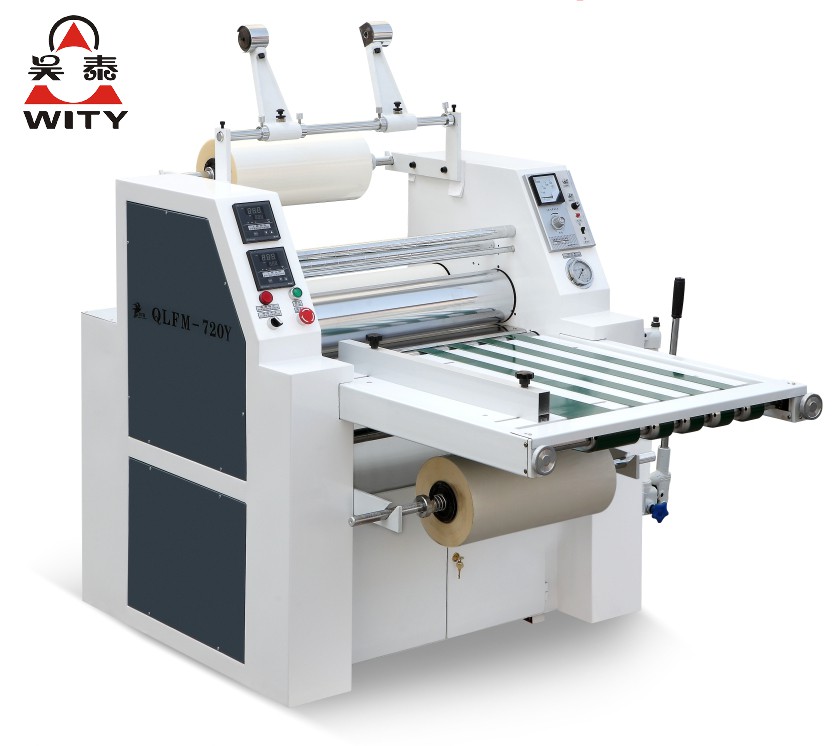

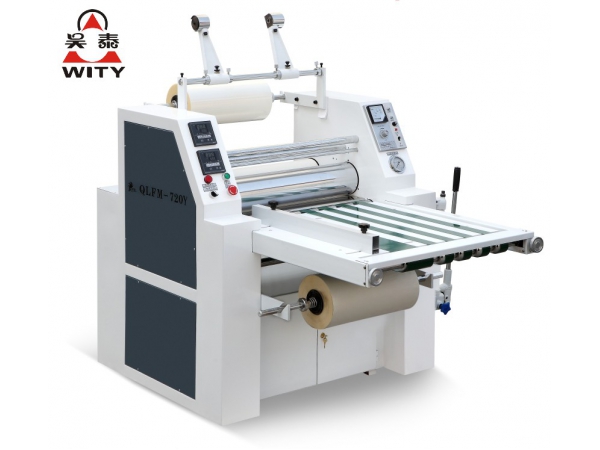

This machine covers a small area, which is operated conveniently and runs fast. The machine adopts pre-coated film as the material. It is widely used for lamination on the surface of window packing paper boxes, various books, maps, pictures, certificates, holographic cellophane etc. After the above products are laminated, they have the features of water-resistance, clear graphic arts and strong three dimensional sense.
Functions
One side or double side lamination
Automatic temperature control
Speed regulation
Automatic paper conveying
Slitting
Main Technical Specification
Model | QLFM-720Y | QLFM-900Y | QLFM-1000Y | QLFM-1200Y |
Max laminating width | 650mm | 850mm | 980mm | 1150mm |
Laminating speed | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min |
Laminating temperature | 60~130℃ | 60~130℃ | 60~130℃ | 60~130℃ |
Motor power | 0.55 KW | 0.75KW | 0.75KW | 1.1KW |
Power of electric heater | 2.4 KW | 3.6KW | 4.8KW | 5.4KW |
Voltage | 380V | 380V | 380V | 380V |
Cylinder diameter | 190∮ | 190∮ | 190∮ | 190∮ |
Measurement(L×W×H) | 1.15×1.1×1.4m | 1.35×1.1×1.4m | 1.55×1.25×1.45m | 1.75×1.25×1.45m |
Weight | 380KGS | 500KGS | 580KGS | 650KGS |
Pressure | 0~4 Mpa | 0~5 Mpa | 0~10 Mpa | 0~10 Mpa |
