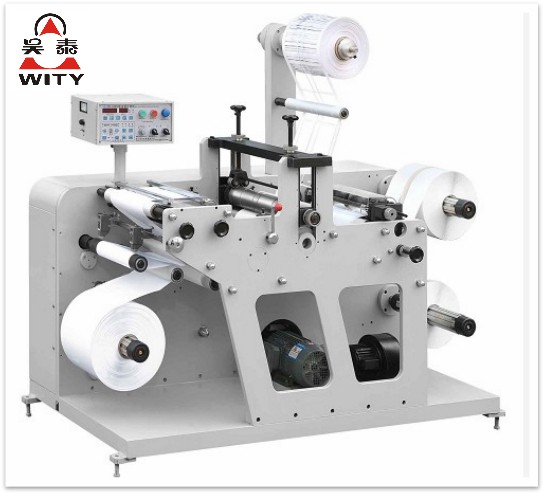

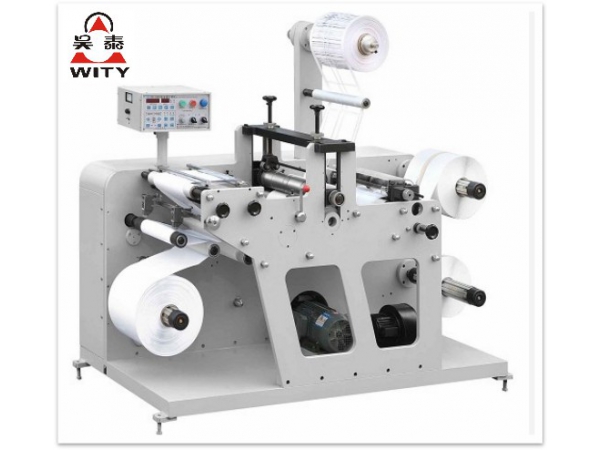

DK320G Slitting machine with rotary die-cutting function is a new product, it is equipped with high accurate rotary die-cutting system. This machine is suitable for blank adhesive labels. Die cutting, laminating (option) and slitting can be finished in one process. It has the function of automatic meter counting, automatic stop, web guiding by photocell. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady running.
Main technical specification
Model | DK-320G | DK-450G |
Slitting speed | 75m/minute | 75m/minute |
Die-cutting speed | 60m/minute | 60m/minute |
Die-cutting repeat length | 177-476mm | 177-476mm |
Max web width | 320mm | 450mm |
Max unwinding diameter | 500mm | 500mm |
Max rewinding diameter | 480mm | 480mm |
overall dimension | 1.6 ×0.9 ×1.3 m | 1.6 ×1.1 ×1.3 m |
Power voltage | 220v±10% | 220v±10% |
weight | About 600kg | About 650kg |
Main function list
1) Magnetic powder brake and clutch for unwinding and rewinding tension control
2) Rotary die cutting system
3) Round blade slitting system （8 sets round blades）
4) Meter counting
5) Photocell web-guiding
6) Waste removal tower
6) 76mm diameter unwinding and rewind air shaft
7) Laminating unit (option)
8) 2x40mm rewind shafts (option)
