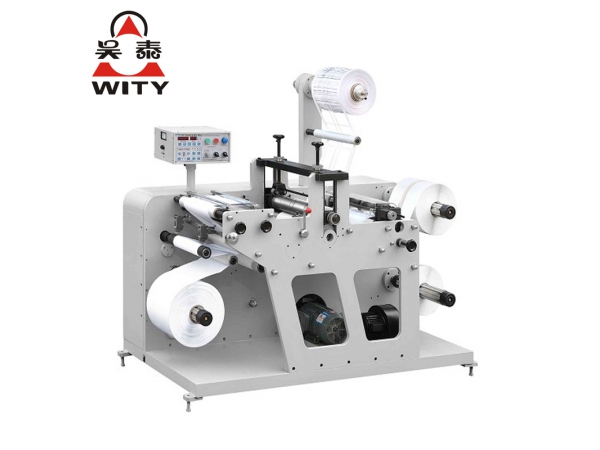

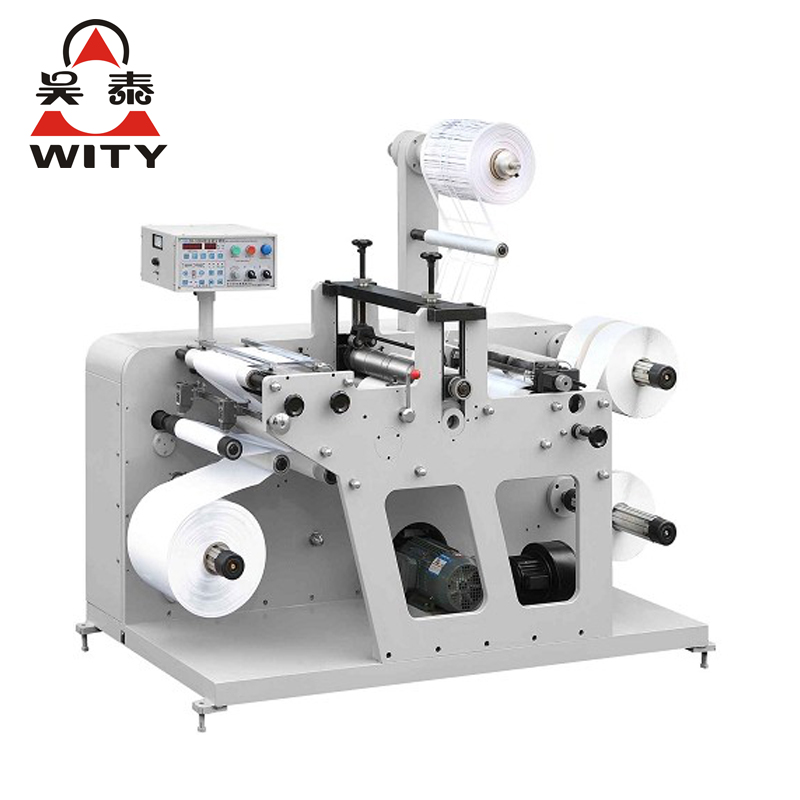

DK320G Slitting machine with rotary die-cutting function is a new product, it equipped with high accurate rotary die-cutting system. This machine is suitable for blank adhesive labels, Die cutting, Laminating (option), Slitting can be finished in one process. It has the function of automatic meter counting, automatic stop, web guiding by photocell. The machine has the characteristic of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady running, etc.
Model | DK-320G | DK-450G |
Slitting speed | 75m/minute | 75m/minute |
Die-cutting speed | 60m/minute | 60m/minute |
Die-cutting repeat length | 177-476mm | 177-476mm |
Max web width | 320mm | 450mm |
Max unwinding diameter | 500mm | 500mm |
Max rewinding diameter | 480mm | 480mm |
overall dimension | 1.6 ×0.9 ×1.3 m | 1.6 ×1.1 ×1.3 m |
Power voltage | 220v±10% | 220v±10% |
weight | About 600kg | About 650kg |
