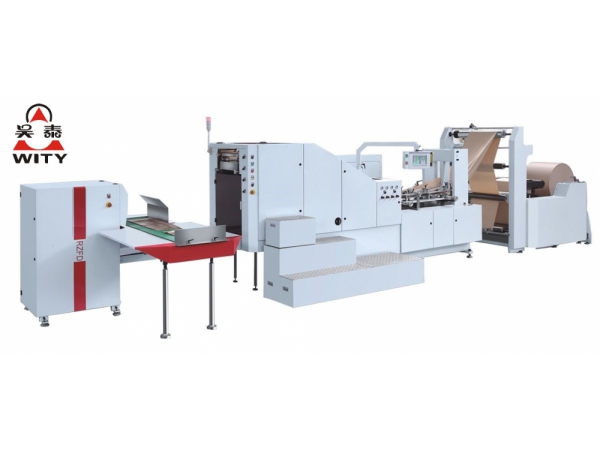

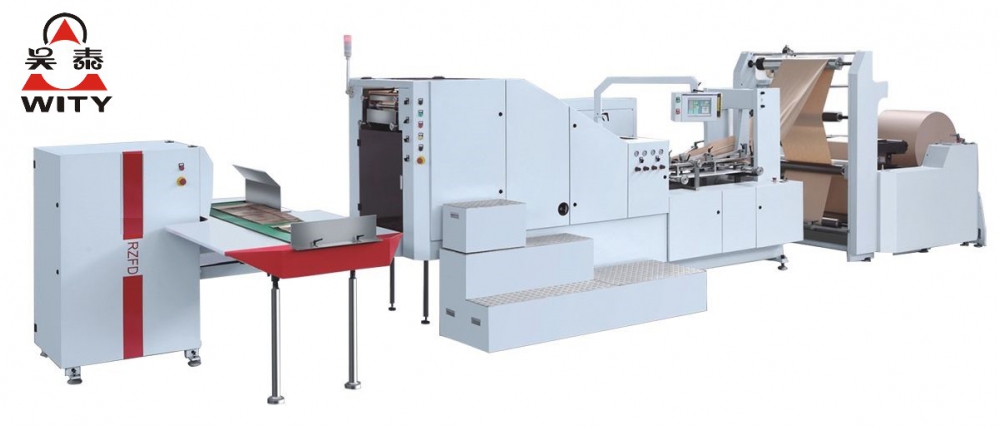

It uses paper roll in blank or printed as raw material. By implementing steps including roll feeding, side gluing, tube forming, cutting, bottom impressing, bottom gluing, bottom forming and final product collecting within a fully automatic process. High speed PC control, touch screen display, servo control bag making length, it can produce square bottom paper bag with variety of sizes, and create greater value for customers.
Feature
Machine use German Rexroth touch screen display, operation clear and easy, can be easily used for correcting or fine-tuning, friendly man-machine interface.
Adopt German Rexroth Servo System and German SICK photocell for rectify, tracking printed bag accurately, reduce adjustment time, increase production efficiency.
Machine have fault diagnosis and display function, it has a detector to avoid damaging the machine because of paper jam.
German Rexroth PC micro-computer control, through integration of optical fiber, reach high speed and precision.
Adopt Italian Selectra edge position correction system, decrease paper waste, improve working efficiency.
Machine unwinding have automatic material loading function by using lifting motor, save paper roll changing time.
Specification
Model | 190 |
Machine Speed | 250 pcs/min |
Paper Bag Width | 90-190 mm |
Paper Bag Cutting Length | 190-370 mm |
Bag Bottom Width | 50-105 mm |
Paper Thickness | 40-130 gsm |
Max. Paper Roll Diameter | 1200 mm |
Paper Roll Width | 300-620 mm |
Total Power | 14 kw |
Machine Weight | 6000 kg |
Machine Dimension | 8500x2100x1700 mm |
