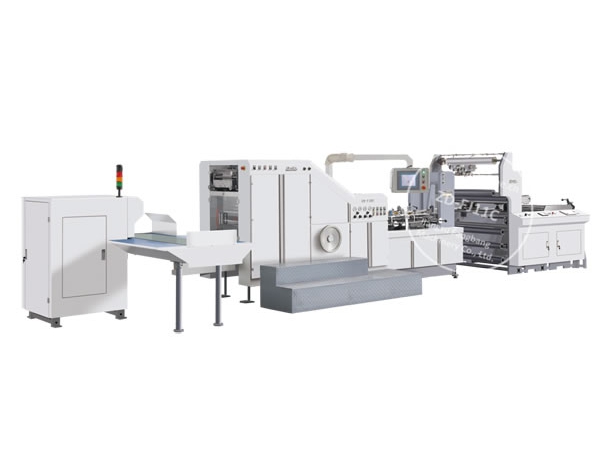

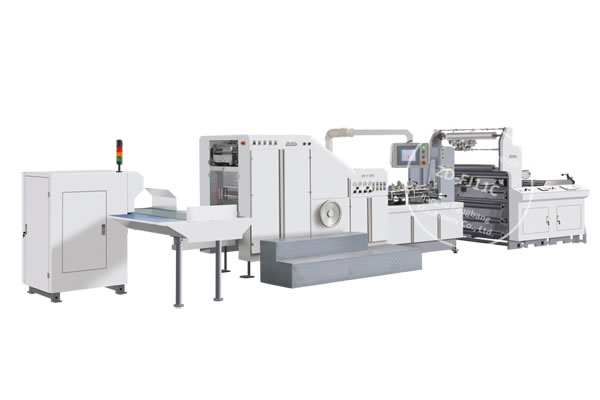

When your paper bag production job calls for larger size and faster speed, you need a powerful paper bag making machine that won't slow you down. Model ZD-FJ11C/13C/18B is a customer favorite, known for its production speed and capacity.
Technical Specifications
| Model | |||
| Paper Roll Width | 370~890mm | 450~970mm | 660~1230mm |
| Max. Paper Roll Diameter | ф1200mm | ф1200mm | ф1200mm |
| Paperboard Core Diameter | ф76mm (3’’) | ф76mm (3’’) | ф76mm (3’’) |
| Paper Thickness | 50~150g/m2 | 55~160g/m2 | 80~170g/m2 |
| Tube Length | 270~530mm | 270~530mm | 270~530mm |
| Bag Body Width | 110~280mm | 150~320mm | 260~450mm |
| Bag Bottom Size | 60~150mm | 60~150mm | 60~150mm(85~180mm) |
| Max. Production Speed | 240bags/min | 220bags/min | 180bags/min |
| Total Power | 18.5kw | 18.5kw | 18.5kw |
| Total Weight | Approx. 8000kg | Approx. 8500kg | Approx. 10000kg |
| Overall Dimension | L9000mm×W3300mm ×H1900mm | L9000mm×W3450mm ×H1900mm | L9000mm×W3500mm ×H1900mm |
The paper bag machine provides a quick way to produce food bags, kraft bags, and other forms of square bottom paper bags. Other key traits of this paper bag making machine include simple operation and reliable bag quality. With these in mind, buyers can be confident that your paper bag customers will never be waiting for quality orders to arrive.
Sample
Pictured below are several paper bags (without handles) produced by our ZD-FJ11C/13C/18B square bottom paper bag machine.
Features
1. A high level automation allows various operations to be done
easily, tasks such paper feeding, body panel forming and cutting, and
gluing the square bottom.
2. Advanced photo eye automatically corrects the bag length errors during cutting, thereby ensuring the cutting precision.
3. Top-notch Siemens PLC system makes sure the entire production system can run in tip top condition.
4. Specially designed bag gathering platform collects finished paper
bags and records the number, which make the following packing process
much easier.
Close-up Views
