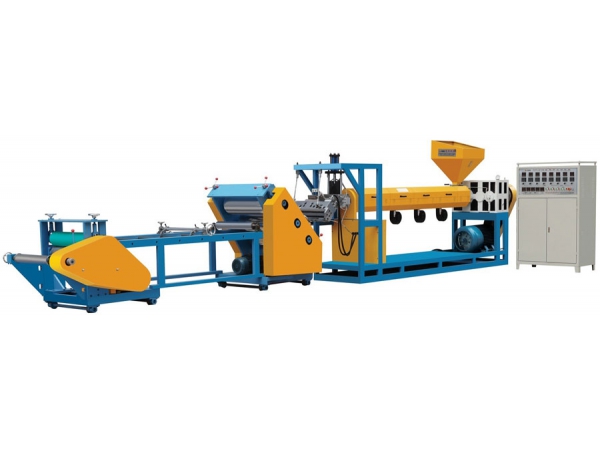

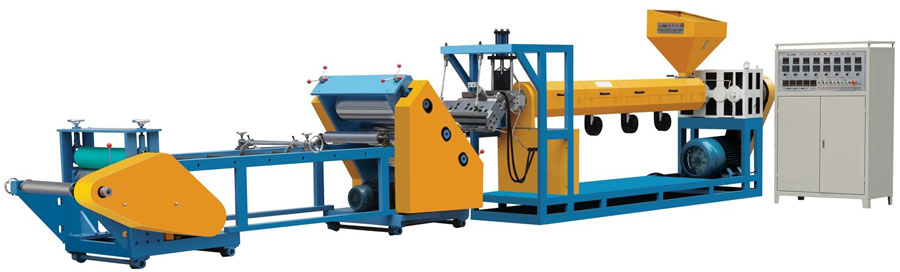

The single layer plastic sheet extrusion machine is used to produce plastic sheet of PP, PS and PE. The sheet can then be taken to produce such items as disposable cups, jelly cups, plastic packing containers, files, and so on.

Features
1. The single layer plastic sheet extrusion machine offers hard gear, strong torque, and low noise.
2. The screw material is 38 crMoAL and the depth of the nitrided layer is 0.4 - 0.7mm.
3. Screw with air cooling system
4. 5 heating zones of the screw
5. It offers an uninterrupted hydraulic screen changer system.
6. The single layer plastic sheet extrusion machine has an energy-saving die head with plating and polishing.
7. It has a synchronous 45° three roller control system.
8. The machine has full frequency conversion control (Delta).
9. It offers a waste rewinding system.
10. The plastic sheet extrusion machine offers moving with electromotion control system.
11. It has roller hard chromium plating 0.08-0.18mm, hardness: HRC58-62 and surface roughness: ≥Ra.
12. The sheet extruder offers a double post gantry traction rewinding system.
13. The single layer plastic sheet extrusion machine has 4 heating zones of the die head.
14. The machine has an auto material feeding system.
15. It offers Omron Temp. Controller PID Adjusting, memory and anti-jam digital temp. control.
16. Electric components from Schneider Electric are used.
