High Efficiency Tablet Coating Machine
High Efficiency Tablet Coating Machine High Efficiency Tablet Coating Machine High Efficiency Tablet Coating Machine High Efficiency Tablet Coating Machine

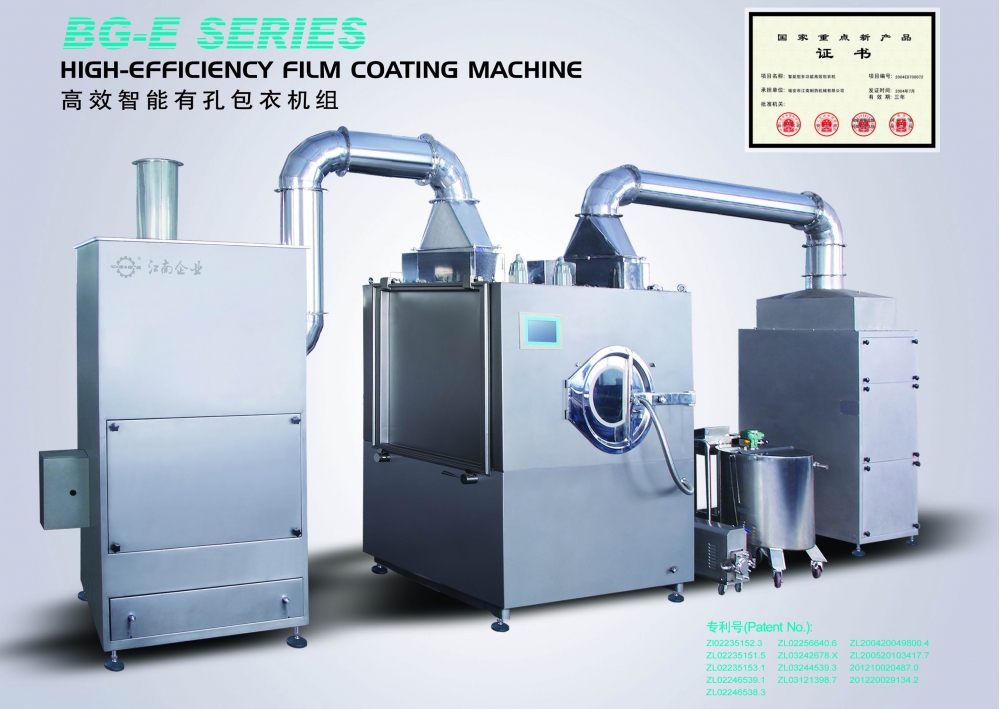

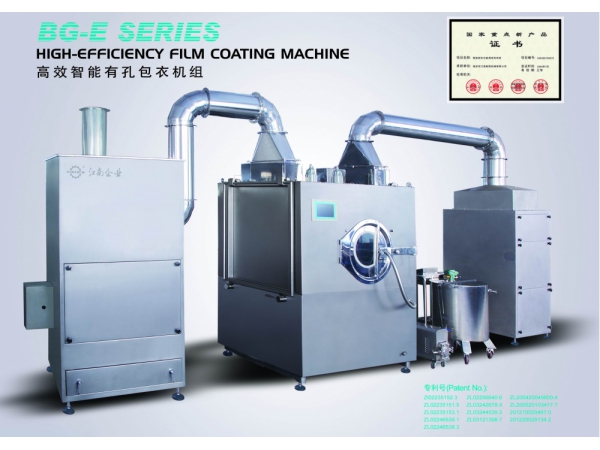

High Efficiency Tablet Coating Machine

With beautiful appearance, high efficiency, low power consumption and other advantages, the high efficiency tablet coating machine can make organic film, water soluble film and sugar coating for various tablets, pills, candies, etc. Widely used in pharmacy, food, biology and other areas, this machine has been exported to Southeast Asia, Australia, Europe, Middle East, South America and other regions.

Inquiry
Website
<span style="font-family:Times New Roman;">High Efficiency Tablet Coating Machine</span>

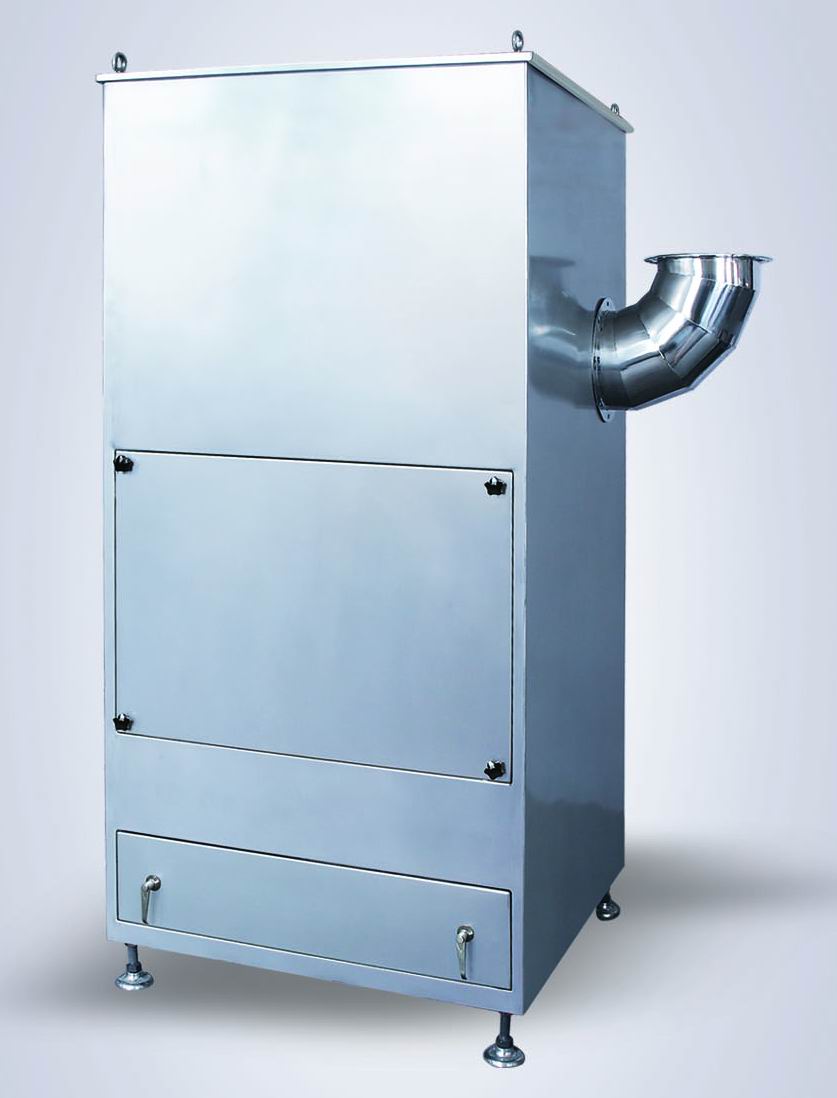

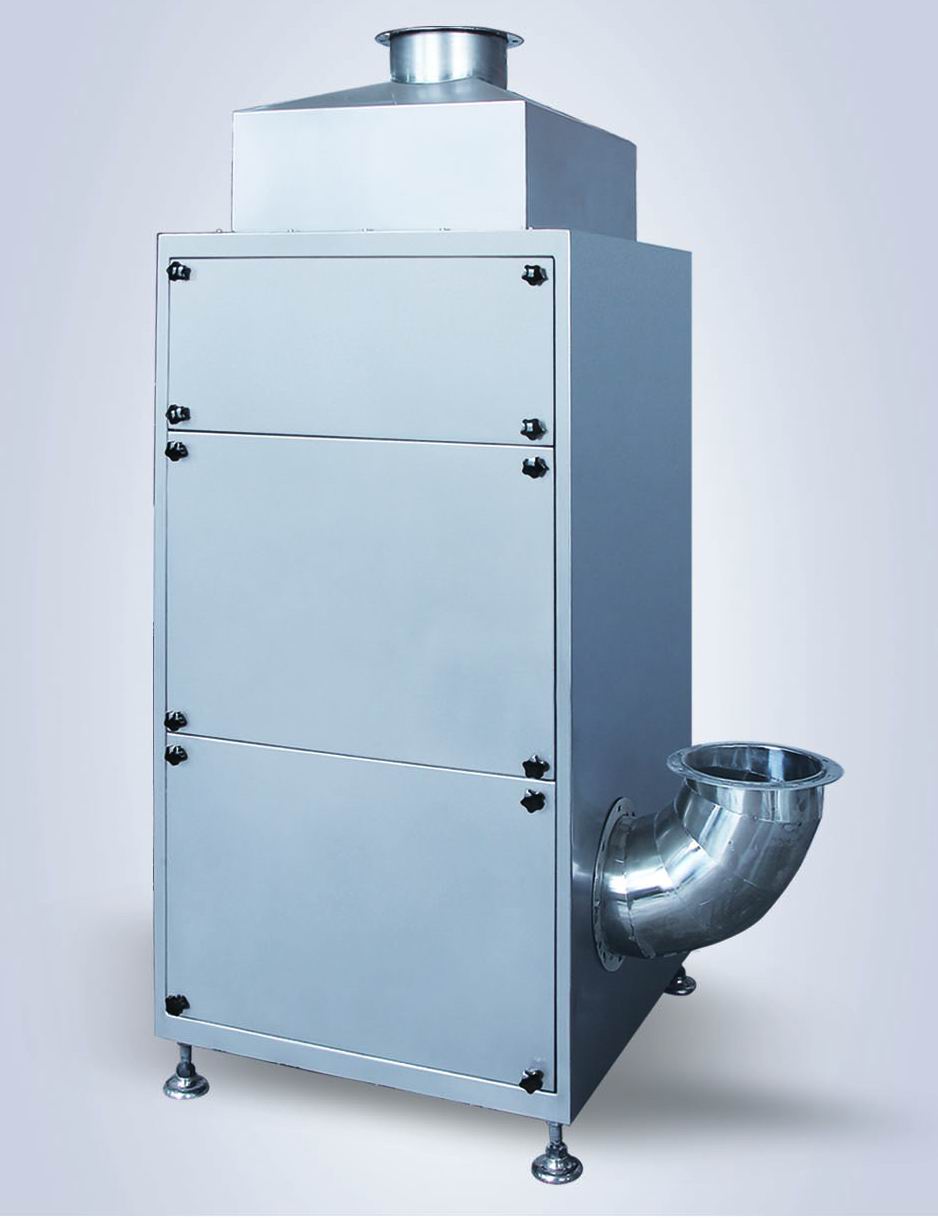

The tablet core keeps doing complex motion inside the clean and sealed rotation drum. After mixed by the thermostatic mixing drum, the coating medium is sprayed over the tablet core through the spray gun. Clean hot air supplied by the hot air cabinet passes through the tablet core and is later discharged from the ventilation door, which makes coating medium dries quickly and forms a solid, dense and smooth film on surface of the tablet core. The whole process is completed under the control of PLC


The high efficiency tablet coating machine is equipped with automatic feeding and discharging device, which is convenient and efficient and prevents cross contamination.  Under the action of streamline guide plate stirrer, the tablet core moves smoothly and frequently, which eliminates the phenomena of falling from high places and collision, solves the problem of fragments and cracked edges and improves yield. The narrow upper surface of the guide plate prevents auxiliary materials adhering on it, which saves auxiliary materials and improves product quality.


Easy to operate, the imported spray gun is able to work under the shooting pressure of 0.29-0.39Mpa and atomizing pressure of 0.4-0.5Mpa, which prevents dripping and clogging. With adjustable flow, angle and fan, the spray gun yields uniform atomization and large spray surface.

A special mechanical device is mounted inside the high efficiency tablet coating machine, which can be controlled to coat small amounts of tablets without wasting auxiliary materials. In addition, an automatic cleaning system, including a high-pressure spray gun inside the coating pan and cleaning nozzles in exhaust outlet and air inlet, is optional. The spray gun can rotate 180 degree and the cleaning nozzles are able to rotate automatically in all directions, making cleaning more convenient and complete.
