application

Pro Info

FQJ1100B-1700B type microcomputer high speed paper cutting machine is suitable for cutting edge and cutting of large coiled material. Such as printing and packaging plastic membrane type, paper, cloth and all kinds of paper plastic composite materials such as Lin Mozhi, coated paper, synthetic leather, such as.

Performance and characteristics:

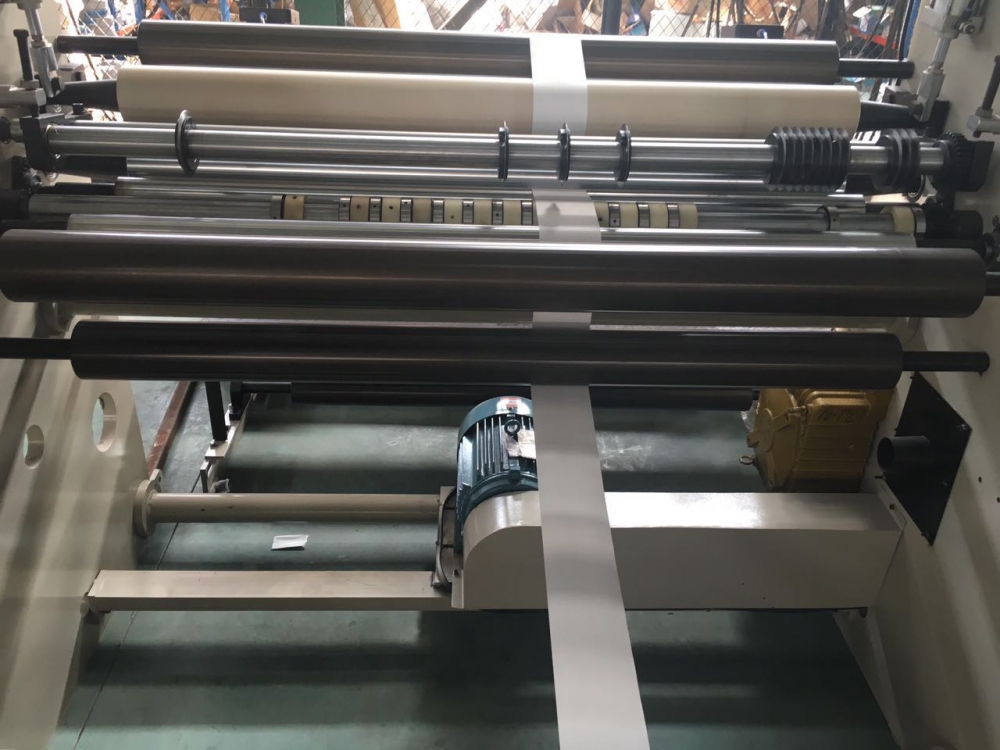

1, the use of circular knife cutting, division of high precision, easy to operate, the cutter can be arbitrarily adjusted;

2, the use of A, B axis independent winding, loading and unloading operation is convenient;

3, fold and shaft adopts inflatable shaft, automatic tension control, orderly and compact rewinding of finished products;

4, put the material frame using air pressure automatic lifting function;

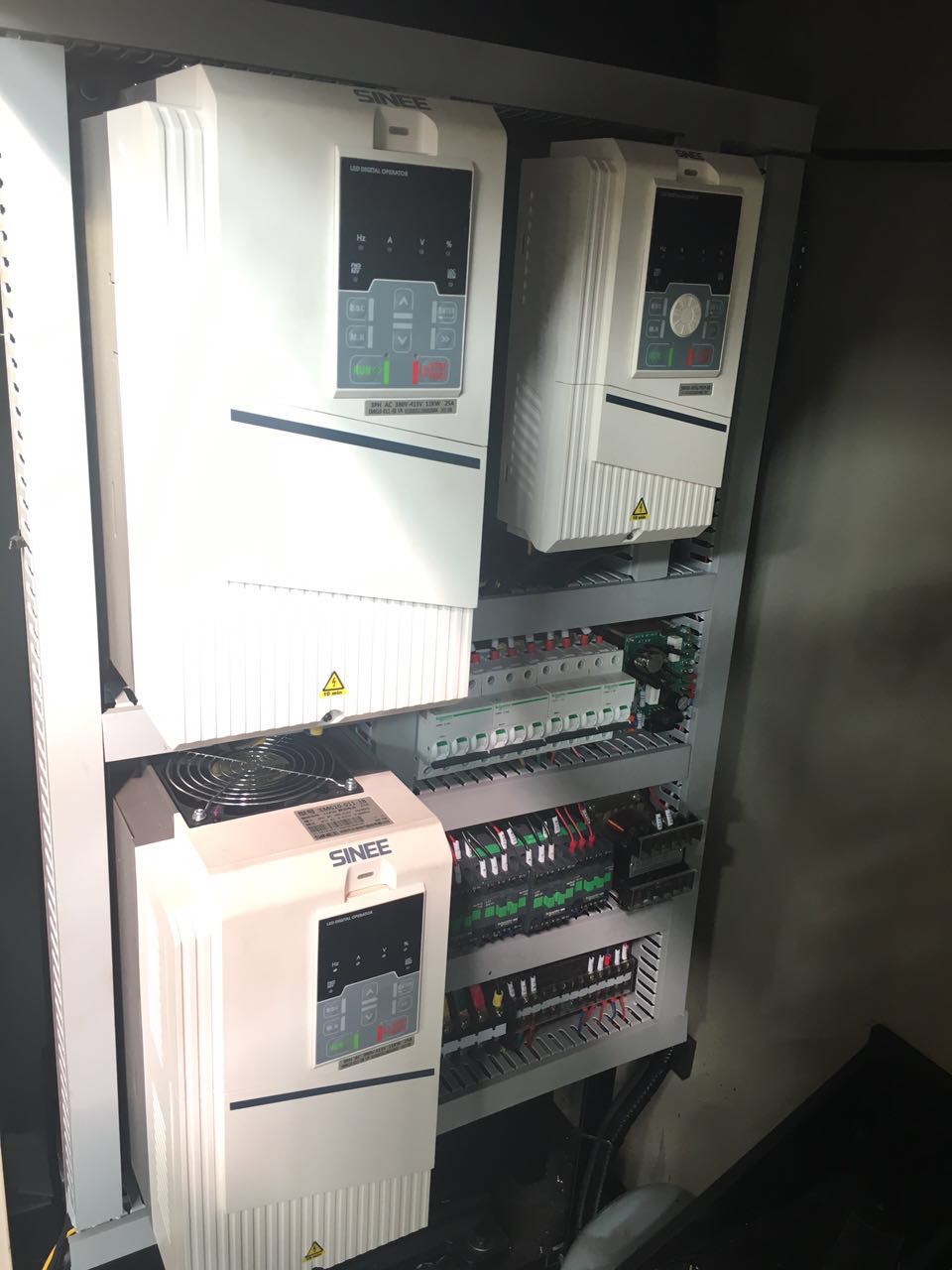

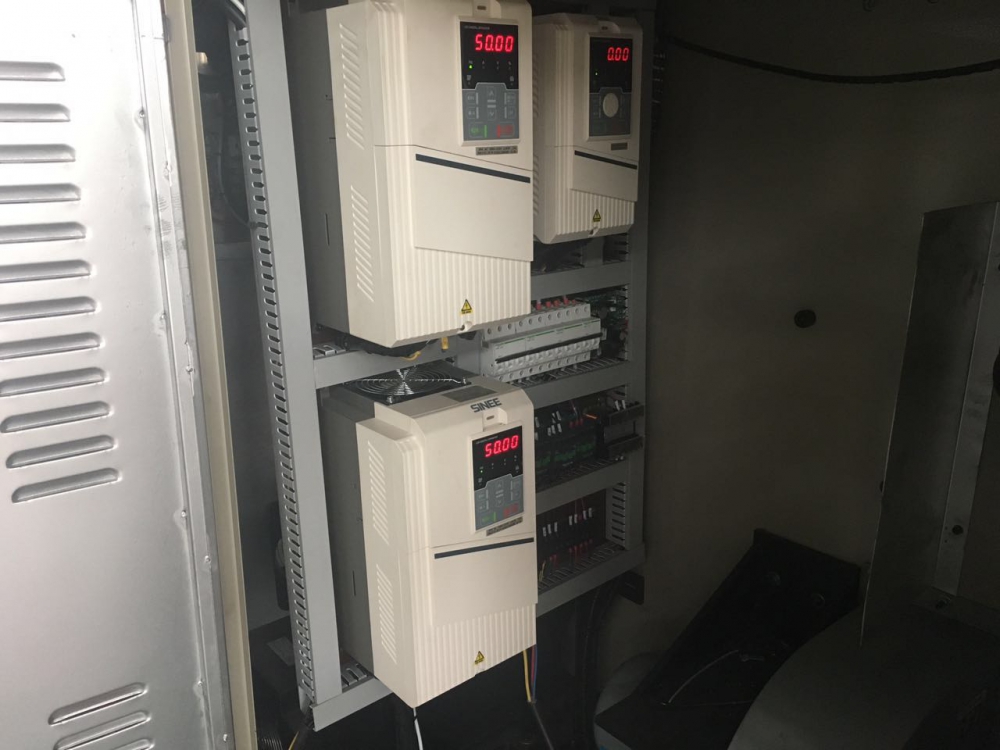

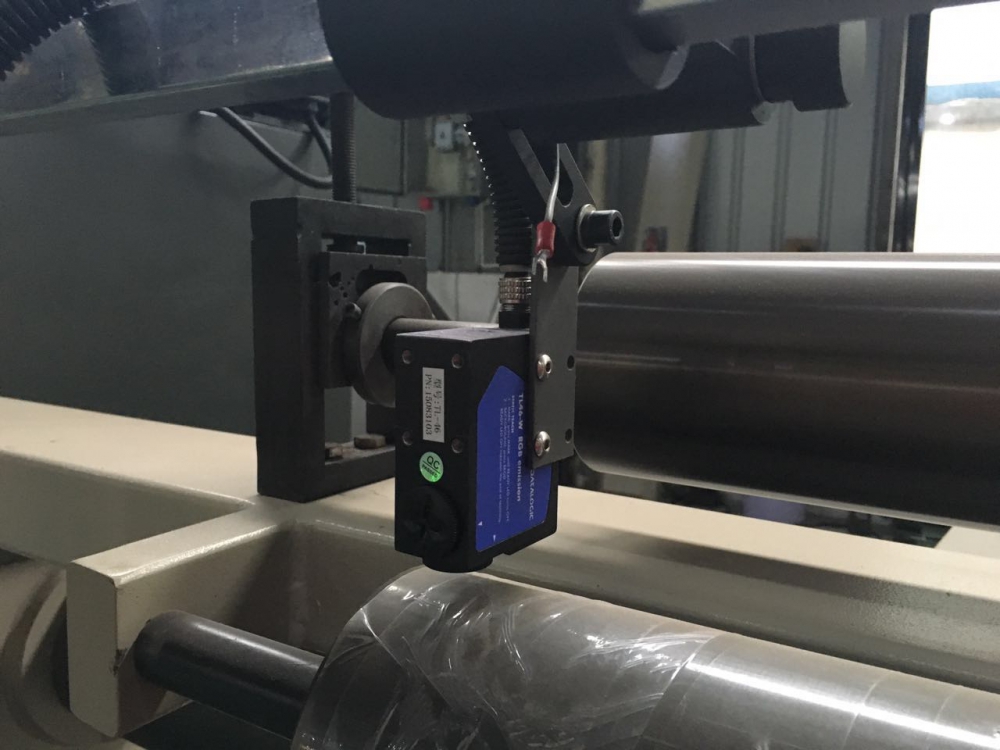

5. waste edge automatic discharge device;                                                                                                                                                   6, this machine adopts frequency conversion speed regulation. Microcomputer automatic control, selection of imported Yuan Electrical corrective device, automatic meter alarm parking, tension digital display advanced features.

Technical parameter:

Model

FQJ-1300B

FQJ-1600B

FQJ-1800B

Dia. of unwinder

1500mm

1500mm

1500mm

Width of slitting

1200mm

1500mm

1700mm

Dia.of rewinder

1000mm

1000mm

1000mm

Mini slit width

50mm

50mm

50mm

Speed

10-150m/min

10-150m/min

10-150m/min

Slitting accuracy

±0.3mm

±0.3mm

±0.3mm

power

11kw

15kw

18kw

electric

380V/50Hz Tri-phase

380V/50Hz Tri-phase

380V/50Hz Tri-phase

requirement of air pressure source

5.5kg/cm2×0.5m3/min

5.5kg/cm2×0.5m3/min

7.5kg/cm2×0.5m3/min

weigh

4500kg

5500kg

6500kgs

overall dimension

4300×3600×1800mm

4500×3600×1800mm

4800×3600×1800mm
