Yuandong creasing die cut machine is a piece of post press equipment used for creasing and cutting a variety of adhesive sticker, EVA, double sided adhesive tape, trademark, ordinary cardboard, corrugated board, plastic and leather products. It is widely used in many industries, such as printing, packaging, decoration, plastic, and so on.
Technical Parameters of Creasing Die Cut Machine
| Rule Area (mm) | 750×520(Non-CE) | 750×520(CE) |
| Working Speed (times/min) | 30±2 | 30±2 |
| Rule Length (m) | < 14 | < 14 |
| Power (kw) | 2.2 | 2.2 |
| Total Weight (kg) | 1900 | 1900 |
| Dimensions (mm) | 1300×1150×1550 | 2100×1680×1550 |

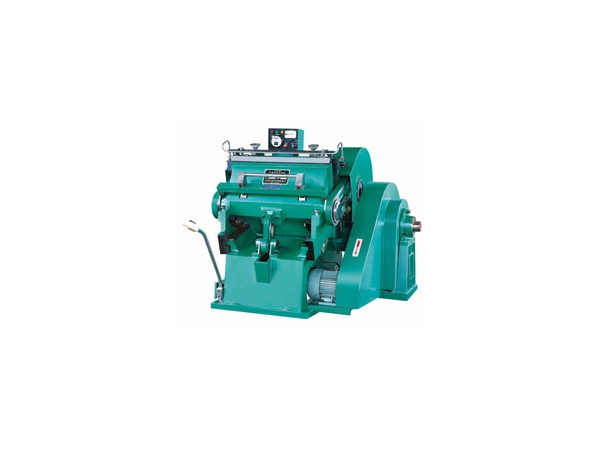

Creasing Die Cut Machine
Yuandong creasing die cut machine is a piece of post press equipment used for creasing and cutting a variety of adhesive sticker, EVA, double sided adhesive tape, trademark, ordinary cardboard, corrugated board, plastic and leather products. It is widely used in many industries, such as printing, packaging, decoration, plastic, and so on.
Features
1. Our creasing die cut machine is manufactured using high grade material for high strength
2. Single disc electromagnetic clutch is known for its agile and reliable motion
3. Reasonably designed operational altitude, moving bed with a large open angle
4. Electrical system is designed according to the IEC standard
5. Reliable safety protection system
6. Single sheet die cutting, continuous die cutting, and delay operation are all available
7. Centralized lubrication system
Standard configurations of our creasing die cut machine: stainless iron liner plate, electromagnetic clutch, manual oil system, clamping frame for fixing cutting mould
Options: CE standard, color (blue, green, grey, etc.), stainless steel or manganese steel liner plate, independent control box, convertor, automatic oil system, air clutch, photocell
