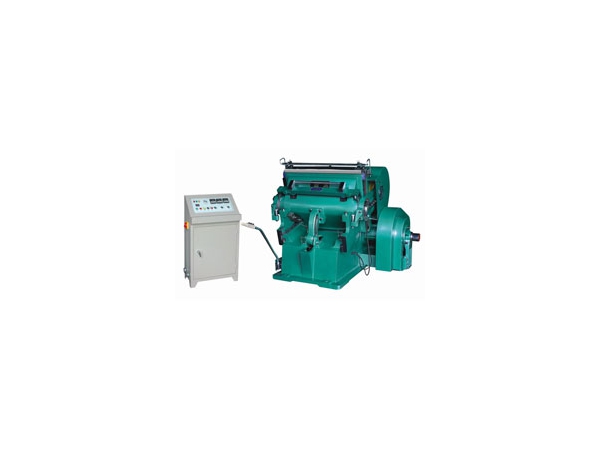

Yuandong heated die cut machine is usually used to cut out a wide range of shapes and designs. It has found countless applications in the field of printing, packaging, decoration, plastic, and more. Some of materials our die cut machine can cut include cardboard, corrugated board, plastic and leather products.
Yuandong heated die cut machine is usually used to cut out a wide range of shapes and designs. It has found countless applications in the field of printing, packaging, decoration, plastic, and more. Some of materials our die cut machine can cut include cardboard, corrugated board, plastic and leather products.
Features
1. High strength machine body
2. Single disc electromagnetic clutch is known for ease of movement
3. Reasonable operational altitude, moving bed with a wide open angle
4. Electrical system is designed in accordance with the IEC standard
5. The safety protection system is reliable
6. Our heated die cut machine is provided with three functions:
single sheet die cutting, continuous die cutting, and delay operation
7. Centralized lubrication system
Standard configurations of our heated die cut machine: stainless iron liner plate, electromagnetic clutch, manual oil system, clamping frame for fixing cutting mould
Options: CE standard, color (blue, green, grey, etc.), stainless steel or manganese steel liner plate, independent control box, convertor, automatic oil system, air clutch, photocell
Technical Parameters of Heated Die Cut Machine
| Model | MLR-750 | MLR-930 | MLR-1100 |
| Rule Area (mm) | 750×520 | 930×670 | 1100×800 |
| Working Speed (times/min) | 30±2 | 25±2 | 20±2 |
| Rule Length (m) | ＜14 | ＜25 | ＜26.5 |
| Motor Power (kw) | 2．2 | 4 | 5．5 |
| Total Power (kw) | 9 | 12 | 16．5 |
| Total Weight (kg) | 11500 | 14200 | 16500 |
| Dimensions (mm) | 1300×1150×1550 | 1950×1750×1960 | 2250×2000×2100 |
