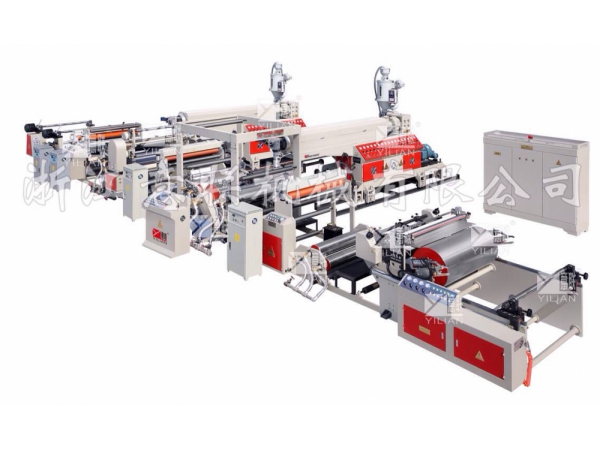

SJFM -D extrusion coating and laminating machine, the absorption of foreign advanced technology, is currently a complete advanced models of double-sides laminating process, the equipment used to need a complete production of double coated paper, or multilayer composite materials such as carton of milk, juice box, beverage box, etc., is an ideal equipment for production of aseptic packaging materials
application：
Pro Info
Scope of application:
1.PE+Paper+PE
2.PE+Paper+PE+Alu Foil/Film
3.PE+Non Woven+PE
4.PE+Non Woven +PE +Film
Main features:
Sjfm dual host extrusion coating and laminating unit, the absorption of foreign advanced technology, is currently a complete advanced models of double-sided laminating process, the equipment used to need a complete production of double coated paper, or multilayer composite materials such as carton of milk, juice box, beverage box, etc., is an ideal equipment for production of aseptic packaging materials
Main technical parameters:
type | SJFM-1300 | SJFM-1600 | SJFM-1800 |
Machine speed | 100-150 | 100-150 | 100-150 |
Coating width | 600-1250 | 800-1550 | 1000-1750 |
laminating thickness | 0.008-0.05 | 0.008-0.05 | 0.008-0.05 |
laminating layer | 2-4 | 2-4 | 2-4 |
extruding quantity | 10-200/20-200 | 10-250/30-250 | 10-280/30-280 |
screw L/D ratio | Φ105 30:1 | Φ105 32:1 | Φ110 33:1 |
power | 110 | 130 | 150 |
overall dimension | 9600×8600×3500 | 11000×9000×3200 | 13000×9300×3200 |
