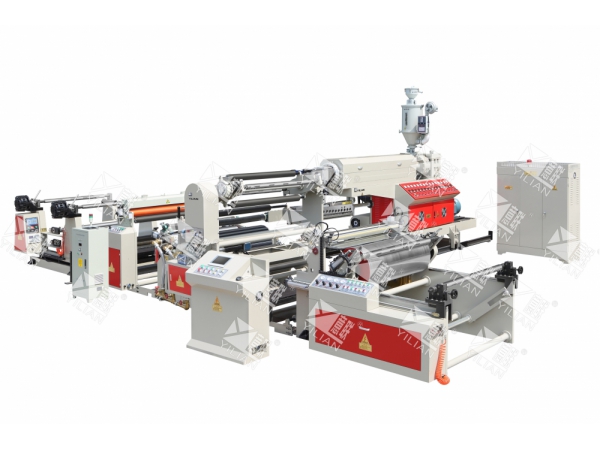

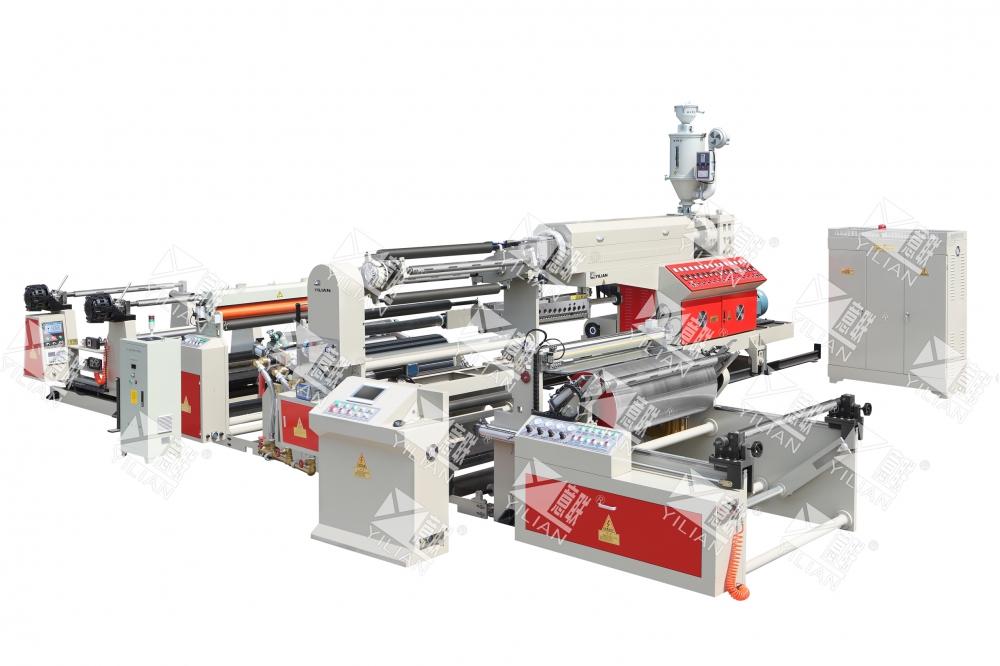

Brief introduction:
This series of equipment in paper, plastic film, textile cloth or aluminum foil as the substrate, by casting, a compound into two layers, three layers, the jumbo Jumbo + paper sandwich composite), used as a cement chemicals, feed, food, medicine, cloth tape, plastic cups, fast food boxes, and so packaging supplies
The main technical parameters:
Model | SJFM 1300-2300B |
Application of coating resin | LDPE, PP, EVA, EAA |
Base Material | paper 35~425 grams / square meter, textile fiber, non-woven fabric, woven fabric, |
Sandwich material | BOPP, BOPET, CPP, BOPP, aluminum foil |
Applicable scope | Paper+PE ,non woven fabric+PE+film Woven sack +PE +Film |
Maximum speed | 150m/min |
Maximum film width | 1250mm
|
Film thickness | 0.008 - 0.050mm
|
Film thickness error | 5% |
Tension setting range | 10- 150kg/ full width, constant tension |
The maximum output | 200kg/ hours |
The substrate core diameter | up to 76mm |
Machinetotal power | 110kw |
The actual operation of power | 55kw/h-60kw/h |
Control system | PLC automatic control of composite speed and film thickness |
