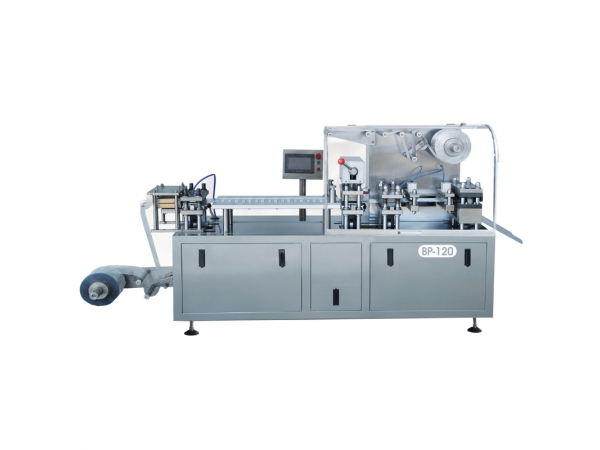

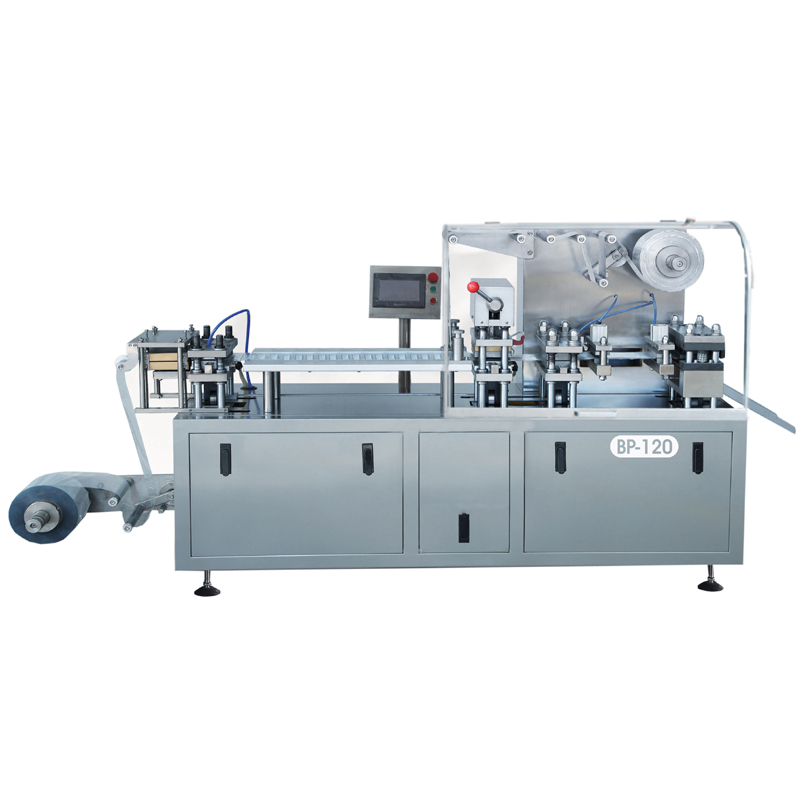

Blister packing Machine is designed for packing the different products(tablets,the solid or soft gelatin capsules etc.)into blister. BP-120 Small Blister Packing Machine is the best choice for R&D and pilot plant. It can form thermoplastic and cold forming material( Alu-Alu). It adopts the touch screen control panel. It has pneumatic drives, which lend it high robustness and low maintenance.
It is specially designed for small size productions that require a high flexibility.
Its modular and compact concept optimizes the production in a small working area.
Main advantages of this machine are the simple operation and the high efficiency.
It allows forming thermoplastic and cold forming materials (Alu-Alu).
Automation by PLC and operation through touch screen control panel.
It has mechanical drives, which lend it high robustness and low maintenance.
Technical Data | BP-120 |
Speed | Alu/PVC：Up to 40 Cycles/min Alu/Alu:Up to 20 Cycles/min |
Travel range | 30-100mm |
Max. Forming Area | 120×90mm |
Max. Forming depth | 12mm (20mm can be customized for option) |
Forming foil | PVC, PVC+PVDC, PVC/aclar, ALU-ALU.etc. |
Total power | 2.25 kw |
Air volume flow | ≥0.2m3/min |
Air pressure | 0.4-0.6Mpa |
Water consumption | Water cycle 20L/ minutes |
PVC specifications | 0.25-0.5×130mm |
PTP specifications | 0.02-0.035×130mm |
Dialysis paper | 50-100g×130mm |

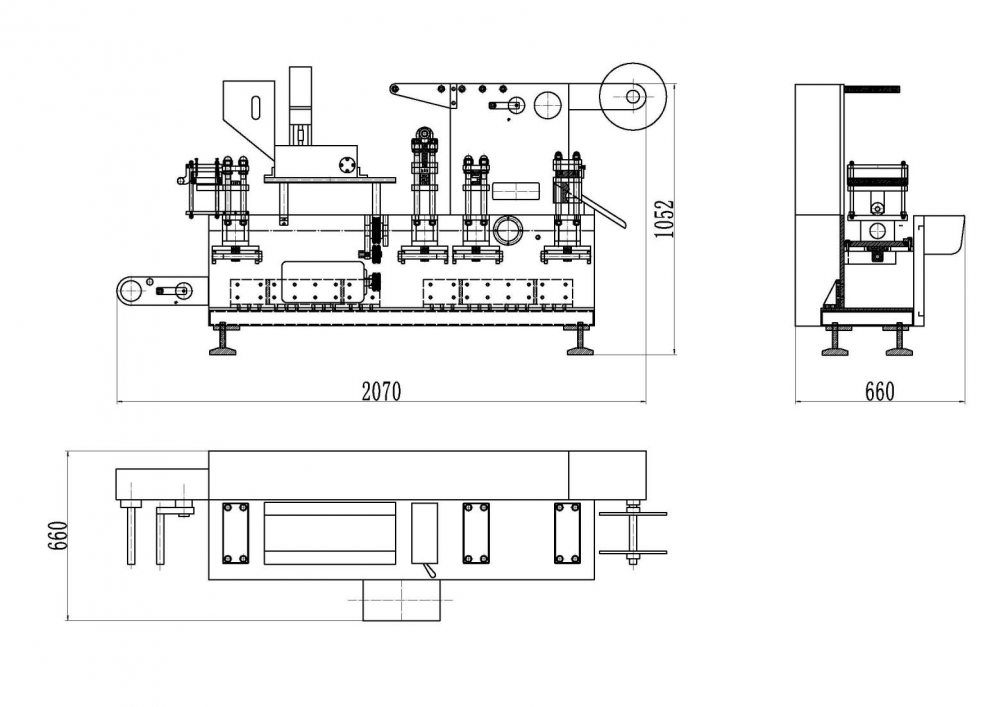

Dimensions | 2070×660×1052 mm |
Weight | 560kg |
