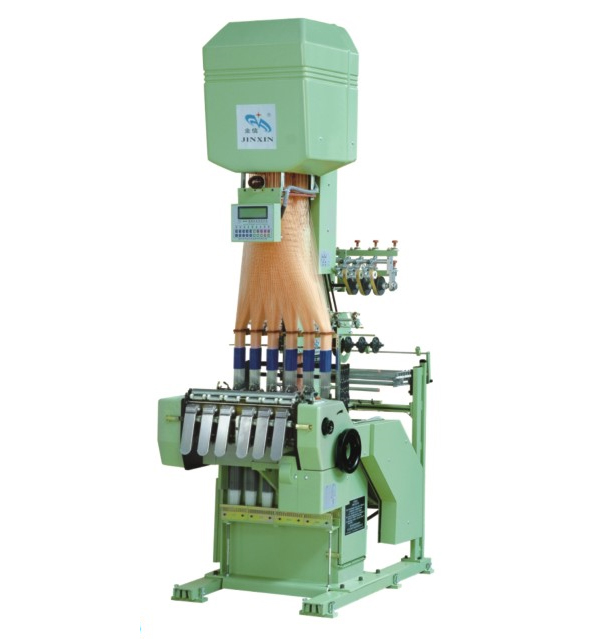

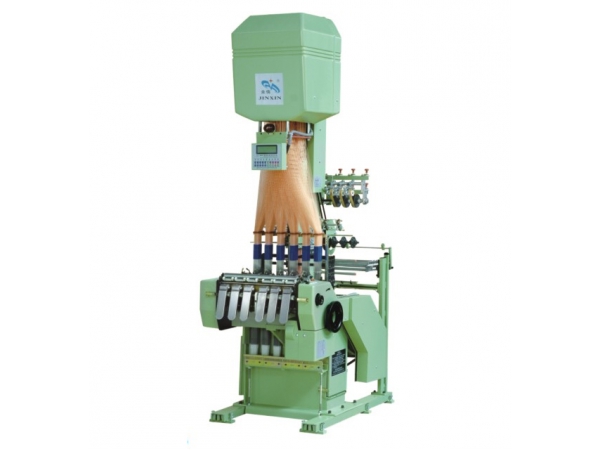

After more than 30 years of experience in weaving machine parts processing, Comtech is an expert on ribbon weaving machine structure and principles, and has mastered the precise manufacturing technology. We control the accuracy of each component, and ensure all combinations run smoothly. Due to this, our computerized jacquard loom maintains a stable operation status at higher production speeds, and avoids yarn jumping, as well as improves the output and finished product rate.

Optional models

Model	8/27	6/42	4/66
No. of Hooks	128-192	192-320	192-384
Tape Lines	8	6	4
Reed Width	27mm	42mm	66mm
Max. Weaving Width	25mm	40mm	62mm
No. of Heald Frame	12	12	12
Repeat Length	1:8/16-32	1:8/16-32	1:8/16-32
Machine Width	980mm	980mm	980mm
Max. Machine Height	2600mm	2600mm	2600mm
Min. Machine Length	3000mm	3000mm	3000mm
Net Weight	890KG	890KG	890KG
