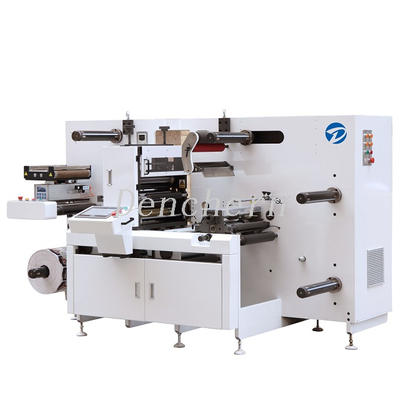

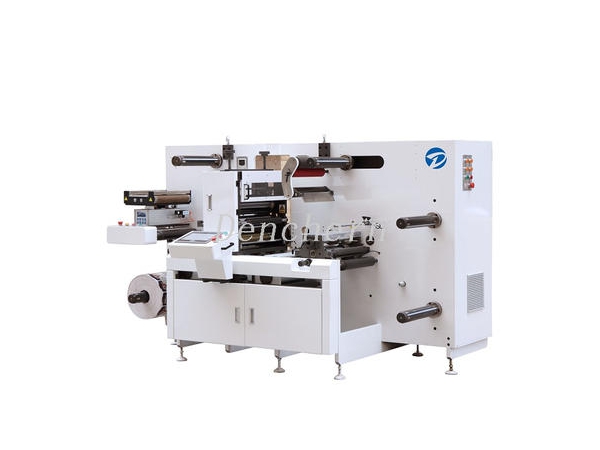

This equipment is the latest research and development product, equipped with die-cutting, intermittent die-cutting and slitting units, it adopt advanced servo control system, user-friendly operation panel, greatly improve product quality and production efficiency; with the latest full-rotary and intermittent interchangeable technology; suitable for digital printing label small and medium quantity order after die-cutting.
Model | 370 |
Max. Rotary Speed | 120m/min |
Max. Intermittent Speed | 300times/min |
Max. Web Width | 370mm |
Die Cutting Repeat | 50-444.5mm |
Die Cutting Precision | ± 0.15mm |
Max. Unwinding Dia. | 800mm |
Max. Up Rewind Dia. | 450mm |
Max.Down Rewind Dia. | 800mm |
Rewind Inner Core Size | 1-6inch (standard in 3 inch) |
Magnetic Cylinder | 80-210T (standard in 140T) |
Thickness Of Material | 20-300um |
Air source | 0.8Mpa |
Dimension (L*M*H) | 2500mm*1300mm*1530mm |
Weight | 2500kg |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Use the latest full-rotary and intermittent interchangeable technology and intelligent operating platform to improve efficiency.
3) Adopt international brand tracking Sensor with high precision sensor.
4) Running in a high automatization and intellectualization,no pollution
