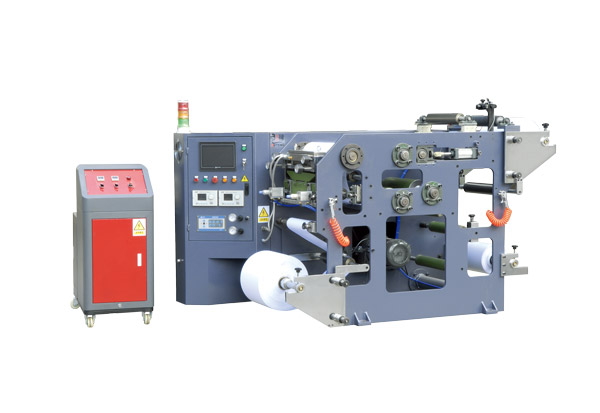

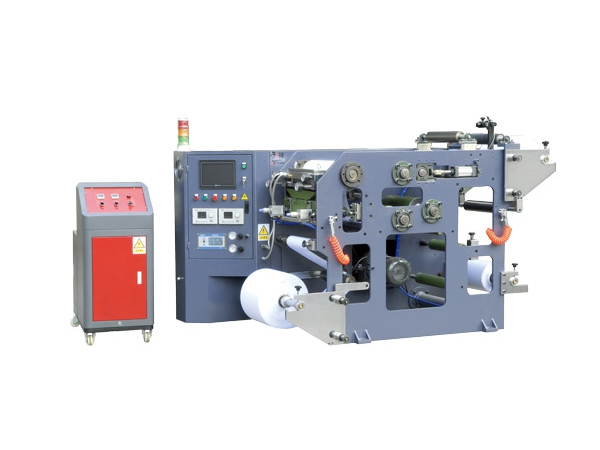

Narrow Web Hot Melt Coater, 100M/min (RT350 Series)
The narrow web hot melt coater is a type of coating machinery used for the manufacture of self-adhesive labels, medical tapes, Anti-counterfeit tags and labels, etc.
Features 1. The narrow web coating equipment features a PLC control system with touch
screen HMI, realizing easy operation and high automation.
2. Wear resistant alloy steel coating head is utilized, featuring long service
life and high coating precision; High accuracy positioning is reached due to
the free adjustable coating head.
3. An automatic tension control system is equipped on the rewind/unwind unit,
ensuring constant tension during the rewind/unwind process.
4. A web guiding system is used to provide smooth coating.
5. The adhesive amount supplied is controlled by the metering pump, allowing
for precise control.
Technical
Parameters
Model | RT350 |
Max. Coating Width | 350mm |
Diameter of All Rolls | 400mm |
Coating Weight | 15-200g/m |
Max. Coating Speed | 100m/min |
Unwind Roll Diameter | 600mm |
Rewind Roll Diameter | 500mm |
Unwinding Unit | 2 sets |
Rewinding Unit | 1 set |
Machine Dimensions | 2200*1300*950 |
