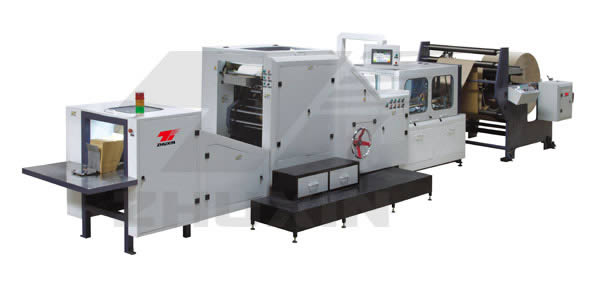

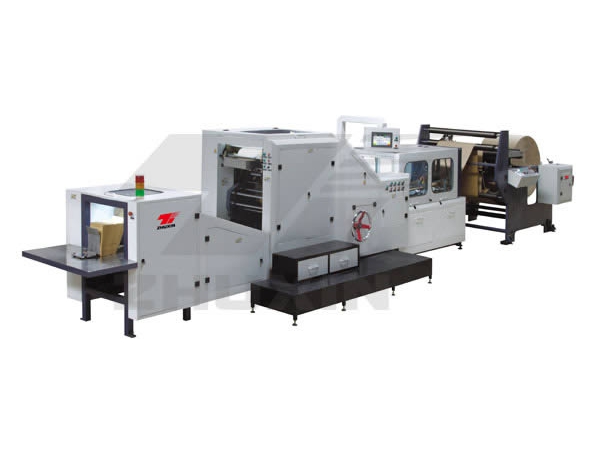

CY-290,460 adjustable roll square bottom paper bag machine has advantages of fast speed, high production efficiency and a large adjusting range. This machine can complete the whole paper bag production process, can produce paper bags of different specifications and is a top priority paper bag making machine.
The excellent design and high performance accessories contribute to the great performance of adjustable roll square bottom paper bag machine. The whole equipment is controlled by PLC system and high degree of automation is achieved. Servo motor is used to control the paper bag length and paper bags of different specifications can be produced easily. Materials can be loaded and unloaded by means of hydraulic lifting system. And pulling force used to coil film roll is regulated automatically. Glue is ZATOR from Italy. And SELECTRA from Italy can make sure that film is moving in the right direction. Electro-optic system SICK from Germany can detect printing materials precisely so that we can get pictures we need. Auto lubricating system is also installed. When there is a jam, the siren system will remind operators of the jam so that machine is protected from damage caused by jam. If there is no material existing, a special detector will stop the machine in order to save energy. Touch screen, a user-friendly interface, also makes operation convenient.
Main Specifications| Model | CY-290 | CY-460 |
| Paper Roll Width | 3 2 0- 90 0mm (12.60 '' -36.61'' ) | 6 0 0-13 0 0mm (23.62 '' -51.18 '' ) |
| Tube Cutting Length | 2 3 0-5 8 0mm (9.06 '' -22.83'' ) | 2 3 0-5 8 0mm (9.06 '' -22.83 '' ) |
| Bag Width | 80-2 9 0mm (3.15 '' -11.42 '' ) | 2 2 0-4 6 0mm (8.66 '' -18.11 '' ) |
| Bag Length | 155-505mm (6.10 '' -19.88 '' ) | 155-505mm (6.10 '' -19.88 '' ) |
| Bottom Size | 60-1 6 0mm (2.36 '' -6.30 '' ) | 6 0-1 8 0mm (2.36 '' -7.08 '' ) |
| Paper Thickness | 60-1 8 0g sm | 6 0-180g sm |
| Max. Paper Roll Diameter | ф1 5 00mm (59 '' ) | ф1 5 00mm (59 '' ) |
| Material Core Diameter | ф76mm (2.99 '' ) | ф76mm (2.99 '' ) |
| Max. Production Speed | 2 2 0 pcs /min | 1 8 0 pcs /min |
| Total Power | 15 kw | 1 5kw |
| Machine Weight | 8500 kg | 10000 kg |
| Machine Size (LxWxH) | 86 00mm× 25 00mm×1 8 00mm | 86 00mm×3 0 00mm×1 8 00mm |
Our company develops this high performance adjustable paper bag machine through years of innovation and progress. High degree of automation can reduce much labor cost and material cost as well as much production cost. And high quality adjustable roll square bottom paper bag machine is ideal for mass production.
Zhuxin Machinery is a China-based adjustable roll square bottom paper bag machine manufacturer. We provide various types of products such as food paper bag making machine, three layer film blowing machine and square bottom paper bag making machine.
