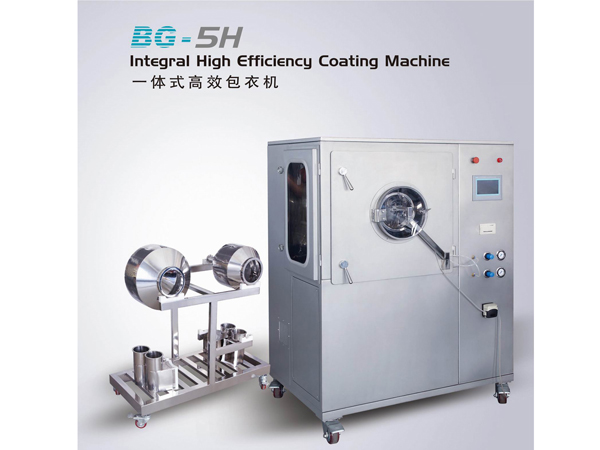

As a piece of high-quality, efficient, reliable, clean, energy-saving and easy-to-operate equipment, the BG-5H high efficiency laboratory tablet coating machine is widely used for coating tablets, pills, candies, etc. Manufactured in strict accordance with requirements of GMP, this machine adopts stainless steel to make casing, coating drum, hot air fan, exhaust fan, spray system and other components that contact tablets.
The coating operation is conducted in a closed
state without dust flying or syrup splashing. With a variety of application
programs, this high efficiency laboratory tablet coating machine can record and
print working conditions. The whole process is controlled by PLC and there are
manual control and automatic control.
Combining hot air
fan, exhaust fan, peristaltic pump, printer and other control systems together,
this high efficiency laboratory tablet coating machine has small volume and is
easy to operate. There are
Based on the process requirements, operators can control the speed and air flow
by the electric control system. There is a negative pressure test point in the
upper box of the coating machine. The negative pressure can be controlled by
adjusting rotation speed of the exhaust fan through the electric control
system.
Air inlet and outlet of the coating drum are equipped with temperature sensors,
the signal of which is input PLC and compared with the set
value (
A special imported spray gun is adopted and the atomization
coverage area can be adjusted by rotating the nozzle cap based on the loading
amount. The operation is easy to master and avoids influence on atomizing
effect. The spray gun won’t start spraying until the pressure reaches 0.3MPa while the atomization will
begin at any pressure, ensuring the process order of first atomizing and then
spraying. The phenomenon of dripping liquid during atomization is eliminated by
firstly stopping feeding materials and then closing atomizing function.
