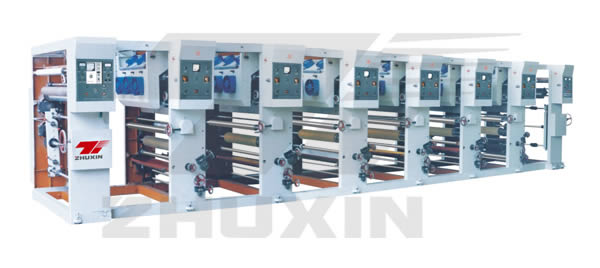

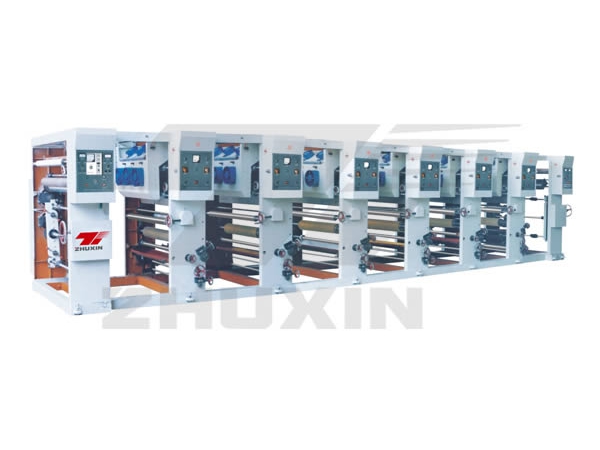

ASY-600 six color gravure printing machine is used to continuously print plastic film, cloth, thin leather and other packaging and can print both sides of printing materials at one time. Adjustable device can turn in 360 degrees and make sure that color containers are at the correct position. And adjustable device does not affect the length of plastic film. Then high precision and colorful printings can be available. Far infrared ray tube is installed on the drying device, so printing can be dry
| Model | ASY-600 | ASY-800 | ASY-1000 |
| Printing width(mm) | 600 | 800 | 1000 |
| Printing Length(mm) | 200-1250 | 200-1250 | 200-1250 |
| Max. Speed of printing (m/min) | 10-60 | 10-60 | 10-60 |
| Format Precision(mm) | < 0.15 | < 0.15 | < 0.15 |
| Power of main motor(kw) | 4 | 4 | 4 |
| Fan Power(kw) | 0.19 | 0.19 | 0.19 |
| Heating Power(kw) | 3.2 | 3.2 | 3.2 |
| Outline dimension(mm) | 8800×1200×1700 | 8800×1400×1700 | 8800×1600×1700 |
Template roll is covered with ink and cutter removes the ink on the template roll surface. So ink in the groove is not removed. Then ink in the groove will be transferred to printing materials by pressing template roll on the surface of printing materials. Compared with regular printing machines, gravure printing machine has advantages of thick and solid ink layer, high quality printing and good three dimensional effect. And it is widely used to print colorful pictures and brands. Quite high degree of automation is achieved due to the computer control system. Simple structure and convenient operation reduces time spent on changing products and improves production efficiency.
As a specialized six color gravure printing machine manufacturer and supplier in China, we also provide food paper bag making machine, heat cutting plastic bag making machine, soft loop handle bag making machine, among others.
