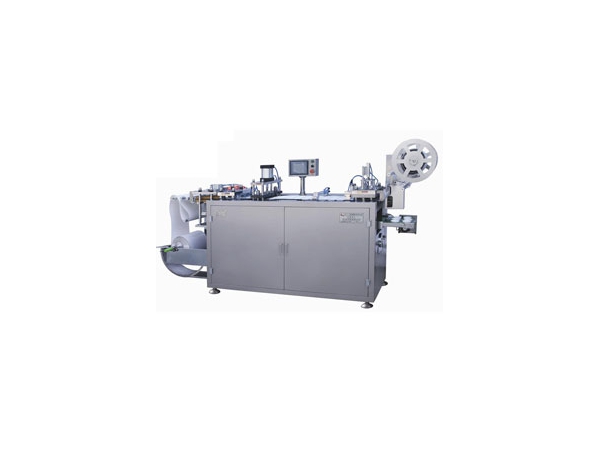

The automatic plastic thermoforming machine is developed by combining domestic and foreign advanced technology. It is fully automatic, and has fast speed and high efficiency. From the sheet feeding, heating, forming to the cutting, all these processes can be automatically finished in the working line.
Automatic plastic thermoforming machine is a kind of plastic vacuum thermoforming machine. It adopts PLC auto-controlling system and transducer regulating mechanism. The raw materials are heated up, and then molded by air-press, thus the products of our machines are of a 100% quality rate.
Applications
The automatic plastic thermoforming machine is developed by
combining domestic and foreign advanced technology. It is fully
automatic, and has fast speed and high efficiency. From the sheet
feeding, heating, forming to the cutting, all these processes can be
automatically finished in the working line. Our automatic plastic
thermoforming machine is widely used to make a series of plastic molded
products, such as small spoon, dish cover, medical injection trays, oral
liquids trays, coffee cover, cola cover, cold drink lid, yogurt lid,
pastry lid, etc.
Parameters of Automatic Plastic Thermoforming Machine
| Model Description | FSC-350 |
| Max forming area | 350×220mm |
| Max forming depth | 40mm |
| Cutting frequency | 10-30times/minute |
| Compress air (m3/h) | ≥0.22 |
| Compress air pressure(Mpa) | 0.5-0.7Mpa |
| Power(variable frequency) | 380v 50Hz 5.5Kw |
| Machine size(L×W×H) | 2960×750×1520mm |
| Machine weight(kg) | 1500 |
