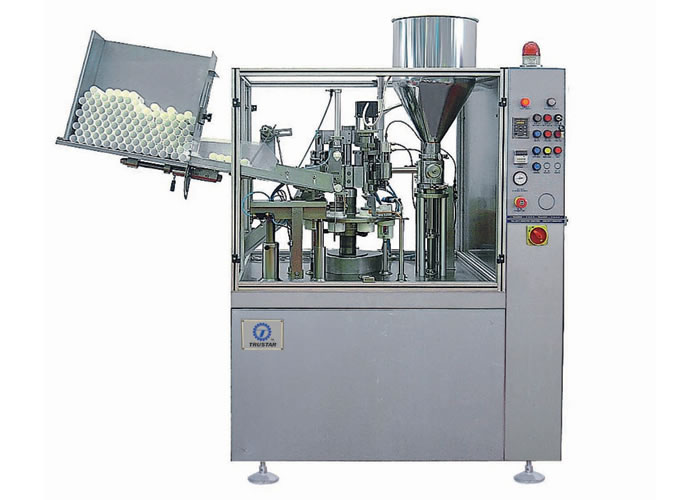

The machine has a 40L feeding hopper with and adjustable feeding device, which can fill the pasty and viscous fluid material into the tube quickly and precisely. The machine automatically conducts tube cleaning and loading, positioning, filling, end-sealing, hot stamping and finished tube discharging.

Features of TF Series Tube Filler
1. Compact design, automatic tube loading, all driving parts sealed
2. PLC+ touch screen control system makes operation simple and convenient
3. Tube filler automatically conducts the tube cleaning and loading, positioning, filling, end-sealing, hot stamping and finished tube discharging
4. Tube cleaning and loading are done by pneumatic
5. Tube positioning controlled by photoelectric sensor
6. Intelligent temperature controlling and cooling system easy to operate and adjust
7. Counting memo and quantitative stop function
8. Double-edge, triple-edge or U-shape folding can be applied on the metal tube by different robots on the same machine
9. Connected parts with the materials use 316L stainless steel and meet cGMP Standard
10. Following safety functions are included: machine automatically stops when door is open, never fills without tube and overload protection
