The equipment is used for one-time die cutting, collecting,Punch stripping and product collection.

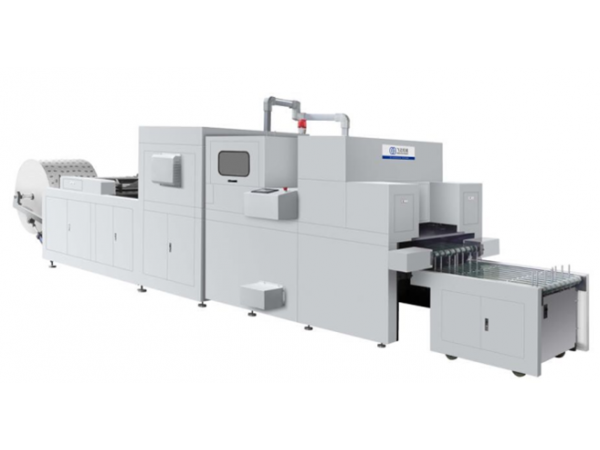

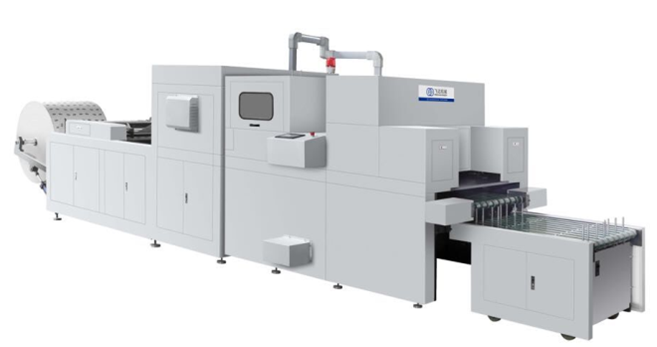

FDQ series full automatic roll die cutting machine is widely used in paper packaging field, such as paper cup and paper plate and so on. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic cluth, centralized oil lubrication, overload protection and distinctive gearing which can gurantee smooth operations of returning paper and feeding paper, precise positioning and oderly withdrawing. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, saftey and reliability.
Specifications
Model 970x640 Max Cutting Area 950mmx610mm Cutting Precision 0.20mm Paper Gram Weight 120-400g/㎡ Production Capacity 100-180 times/min Air Pressure Requirement 0.5Mpa Air Pressure Consumption 0.25m³/min Max Cutting Pressure 150 T/280T Max Roller Diameter 1600mm Total Power 20KW Stripping Precision 99% Height of stacking 18-25mm Max Cutting Paper Size 950*600mm Min Cutting Paper Size 350*250mm Height of Single Stack 18-25mm Total Weight 8T Dimension 8000x2500x2000mm
