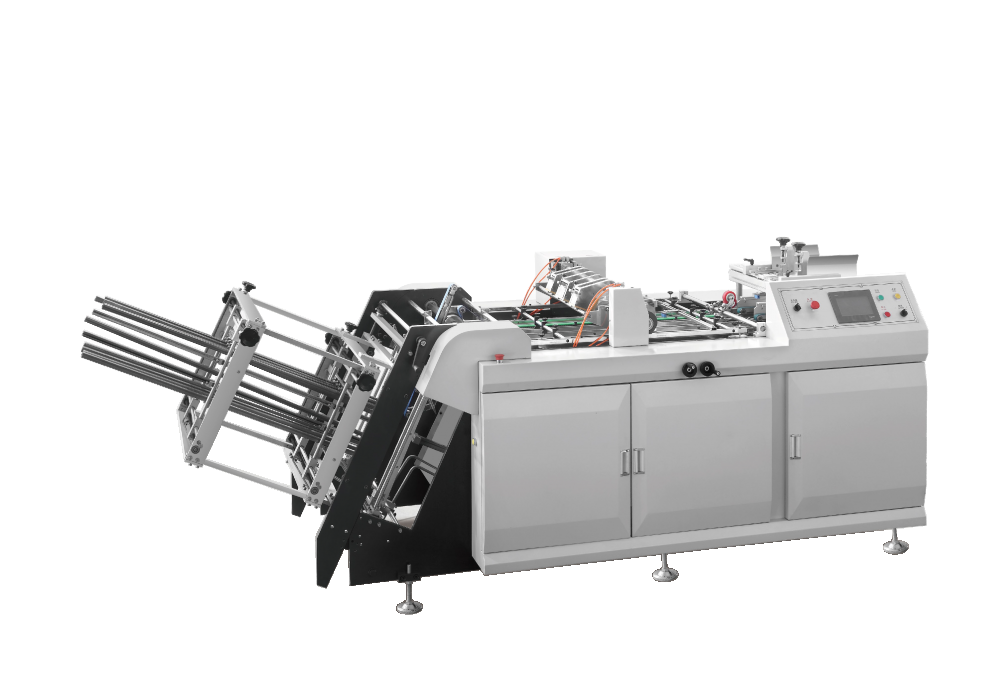

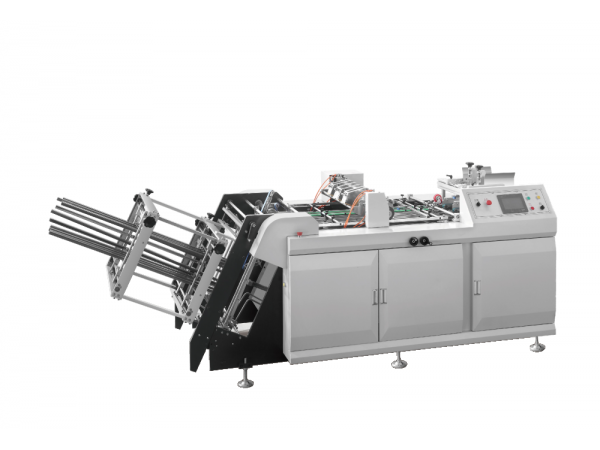

Carton
Erecting Machine (paper box forming machine) is an automatic machine,
specialized in making food carton, box, container which are made from
cardboard, paper, paperboard, corrugated paper etc.

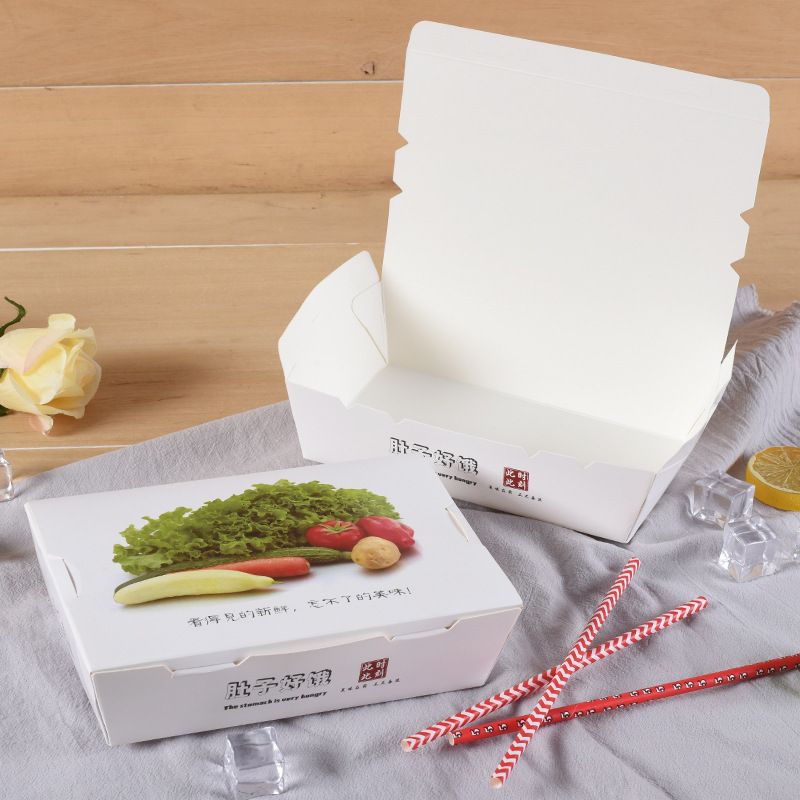

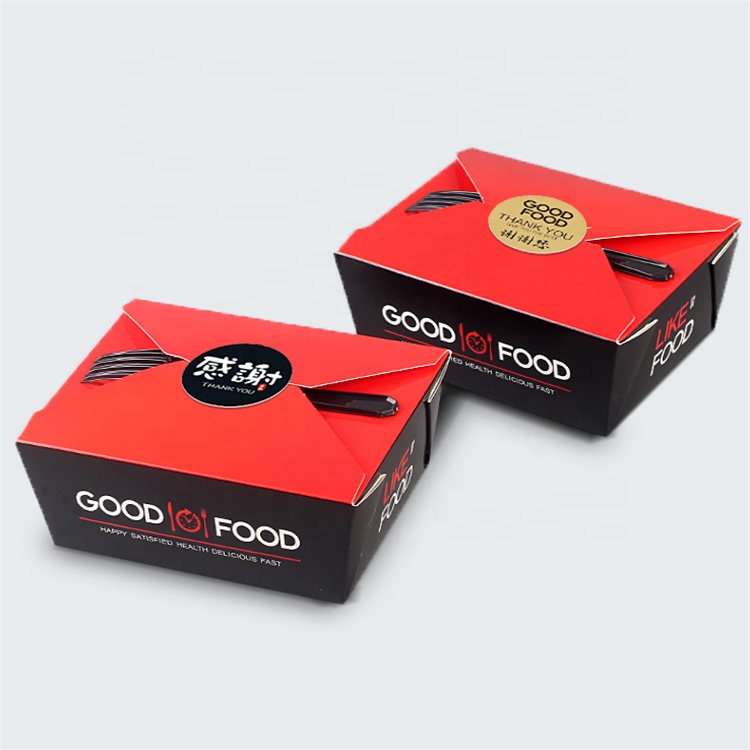

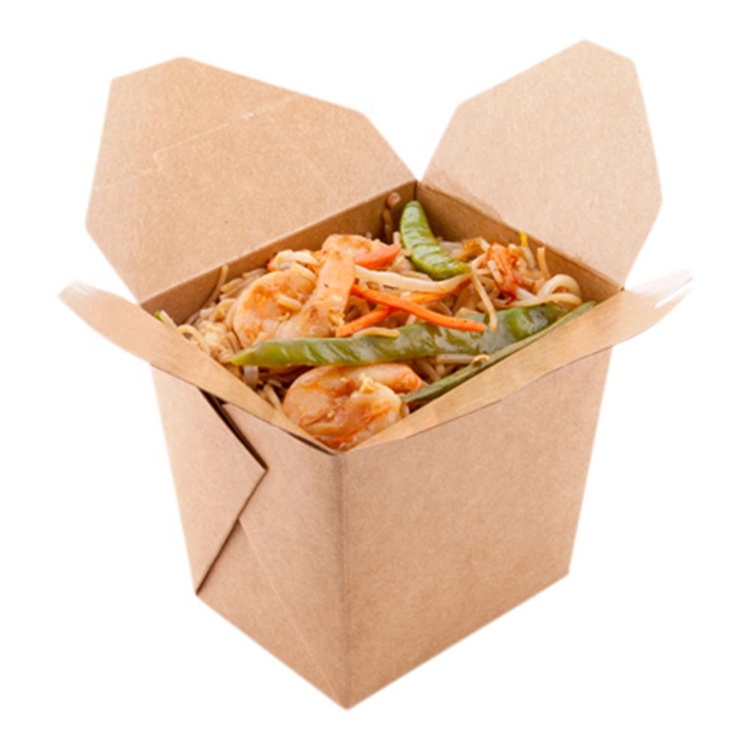

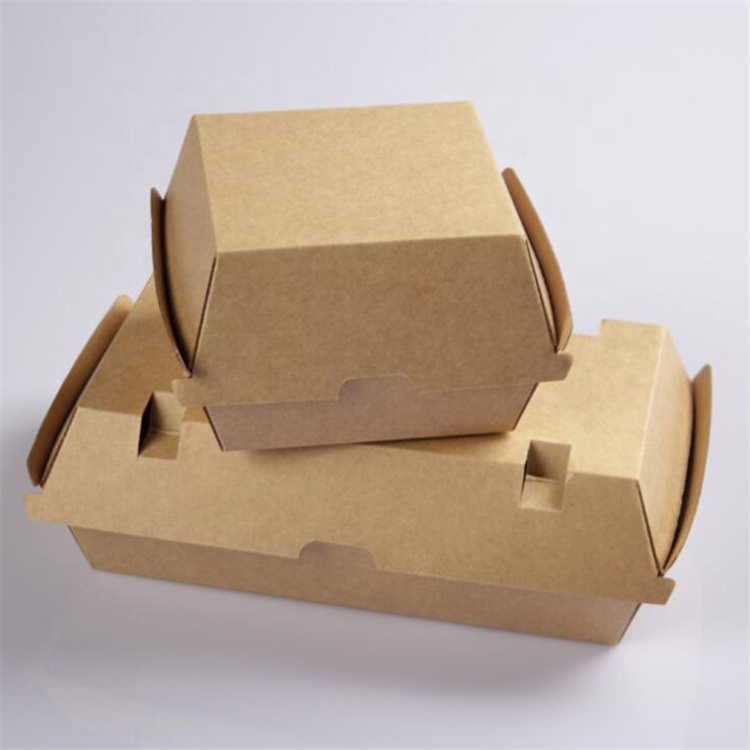

The
food box (carton, container, dish, tray) is widely used as burger box, hot-dog
box (tray), one block box, food pail box (Chinese food box, take-away box),
fries box (chips box, chips tray), lunch box, meal box, etc.
Advantages
1. Servo motor control the forming mold (press mold) (advanced, more accurate than mechanism cam control)
2. Using full servo system (3 servos in machine replace cam system)
3. Easy exchange molds to make different products, charging and adjusting time is very short.
4. PLC program control the whole line, available to make complicated boxes.
5. Automatic collection, stock, and count.
6. Human being designed control button and panel, more easy and safe runs by user.
7. PLC could save the adjusted parameter after you finish adjustment, it will help you save time.
Technical Specification
Model Speed 60~180
box/minute Speed
depends on paper blank size. Welding
Method Water-Glue
System Welding; Available
Material 150~600gsm board, paperboard,
paper, corrugated cardboard, Fluted paper, etc. Material
Thickness Max. 1.5mm Paper
Size: L=Length: 100-430mm W=Width: 100-630mm H=Height: 15mm-320mm Angle: 5~50 degrees Total Power 4.5KW Weight 2000KG Machine
Size (L*W*H) 3520*1510*1420 Pack
Size 3550*1510*1700 Power
Source 3-phase, 380V, 50/60Hz Air
Source Compressed
air at 6-10 bar needed The
product complies with the regulatory requirements and standards on CE
conformity and therefore
carries the CE mark.
