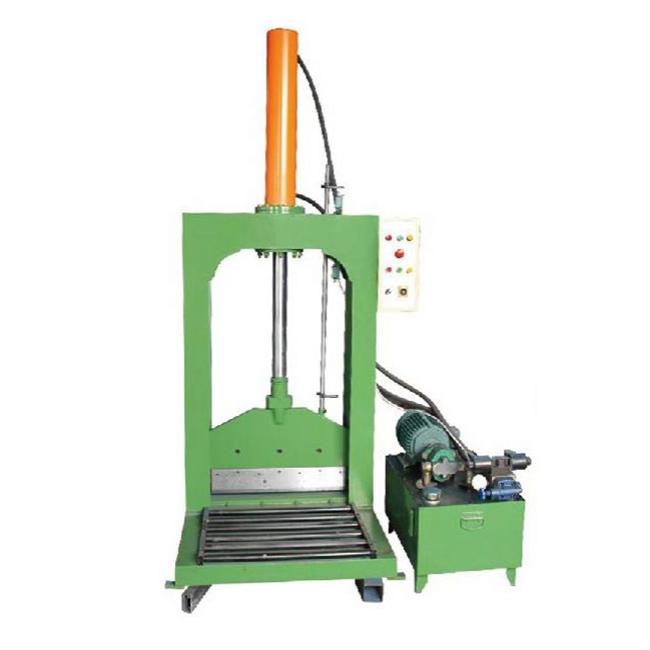

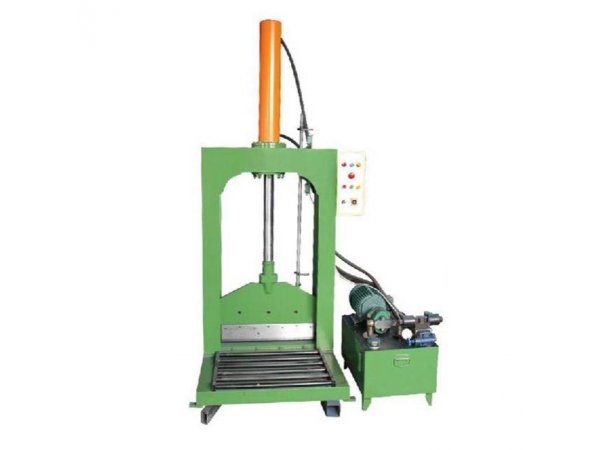

The vertical rubber bale cutter is used to cut natural rubber block and various kinds of plastic material. It is especially suitable for installation in the rubber internal mixer to cut small pieces of rubber block.
The base below the cutter is equipped with a nylon plate (or casting lead plate) to protect the cutter edge.
Equipped with a two limit switches on the rack to control the reversing valve to change the moving direction of the rubber blade and protect the head of the piston cylinder.
The block rubber cut by our rubber bale cutter
Model
CB-660
CB-800
Blade width(mm)
660
760
Stroke of blade
(mm)
680
680
Pressure(t)
8
10-12
Stroke time (s)
15-17
10-15
Motor power (kw)
4
5.5
Tank(L)
60-90
90-100
Machine
weight(t)
0.8
1
undefinedMachine
size (mm)
1990*1330*2530
2190*1330*2530
