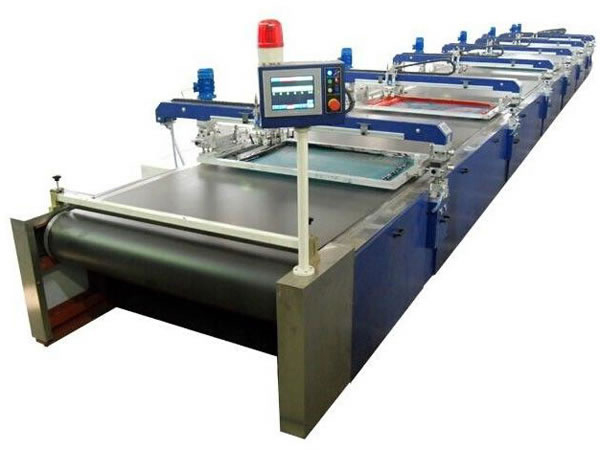

The SPD automatic flat screen printing machine, also known as automatic water-based dyestuff printer, is the representative flat screen printing equipment in the industry. It features excellent stability, high accuracy, high productivity, simple operation, low failure rate, little maintenance, and energy conservation.
Capable of satisfying diversified printing requirements, the automatic flat screen printing machine takes the leading positing in the printing machinery industry. This product is widely used for the production of bath towel, towel, carpet, sweater, children's wear, dress, nightgown, T-shirt, and some other product made of natural fibre, synthetic fibre, and blending.
Technical Parameters of Automatic Flat Screen Printing Machine| Model | SPD1260 | SPD1680 | SPD2010 | SPD2215 |
| Print Colour | 6 | 6 | 6 | 6 |
| Width of Moving Belt | 150cm | 200cm | 240cm | 260cm |
| Length of Moving Belt | 15.3m | 18.9m | 22.5m | 35m |
| Max. Printing Area | 60×120cm | 80×160cm | 100×200cm | 150×220cm |
| Max. Frame Size | 80×165cm | 110×210cm | 130×250cm | 180×260cm |
| Printing Accuracy | 0.1mm | 0.1mm | 0.1mm | 0.1mm |
| Ourput | 1200pcs/h | 1200pcs/h | 1200pcs/h | 1200pcs/h |
| Printing Motor Power | 2.3kW | 3.0kW | 3.0kW | 3.5kW |
| Servo Motor Power | 4.0kW | 5.0kW | 5.0kW | 5.0kW×2 |
| Overall Dimensions | 765×200×130cm | 945×250×130cm | 1130×290×130cm | 1750×310×130cm |
| Machine Weight | 3500kg | 3700kg | 4300kg | 5000kg |
| Air Consumption | Air compressor with the air displacement of 0.9m3/min is needed. | |||
