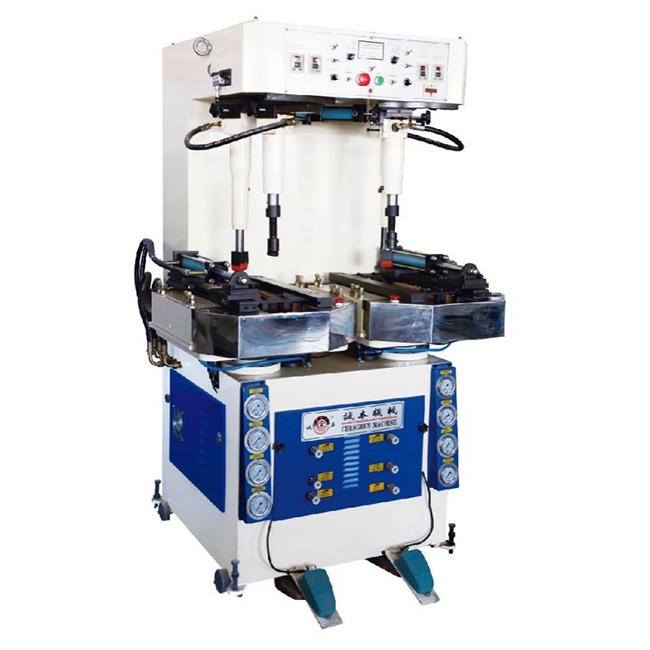

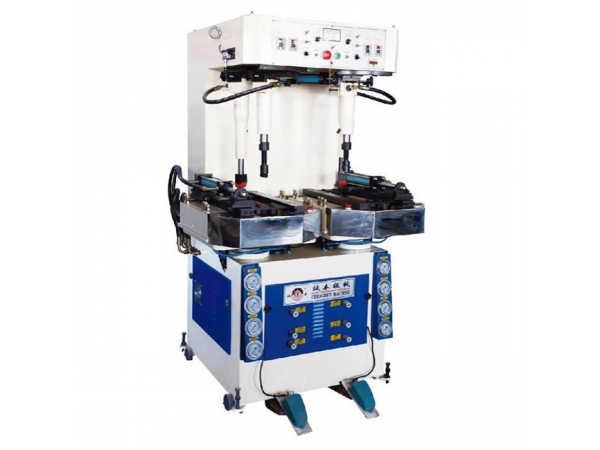

Sole Press Machine
The sole press machine is designed for sole pressing of leather shoes, cement shoes, sneakers and other shoes.
Specification
Model | CB-625A |
Machine size | 120x128x192cm |
Packing size | 130x138x215cm |
Output per day | 200-2500pairs/8hours |
Net weight | 1300kgs |
Gross weight | 1500kgs |
Horse Power | 3HP |
Features
- This machine is equipped with a full oil design for a high pressure and excellent gluing performance. The sole press, surround bar, and front and rear bundles can be completed individually or as a batch, and special designs such as flats, package edges or more can also be pressed with a high efficiency.
- The specially designed multiple row oil cylinder will balance irregular outlines with no blind angles.
- The universal pressure bar helps unify the pressure and eliminates interspace when the sole is placed in the bottom. The automatic shift design also facilitates shoe picking and placing, and most shoe types can be processed with this equipment under a high efficiency and no damage.
Providing customers with complete footwear manufacturing solutions, Chengben Machinery is here to satisfy all of your shoemaking needs. Our equipment can be applied in the production of all sorts of shoes, including rubber shoes, leather shoes, sneakers, rain boots, and PVC slippers. Our footwear production lines can be tailored to your needs, ensuring you have all of the necessary machinery to make your own high-quality products with outstanding efficiency and speed. Besides that, we offer excellent after-sales services to back up our equipment, ensuring the equipment is always working as intended and minimizing downtime.
