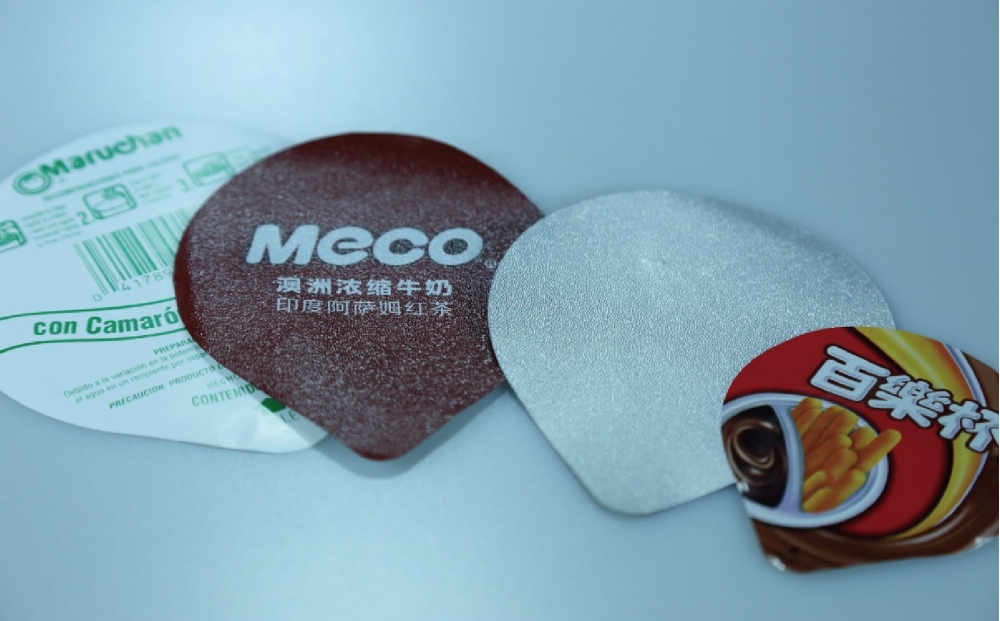

It is suitable for cutting of thickness 60-120g ice-cream paper corn holder, ice-cream ild(alumium foil), instant-noodle bowl cap and all kinds of food packaging and paper cup lids.This equipment has the function of automatic collection.

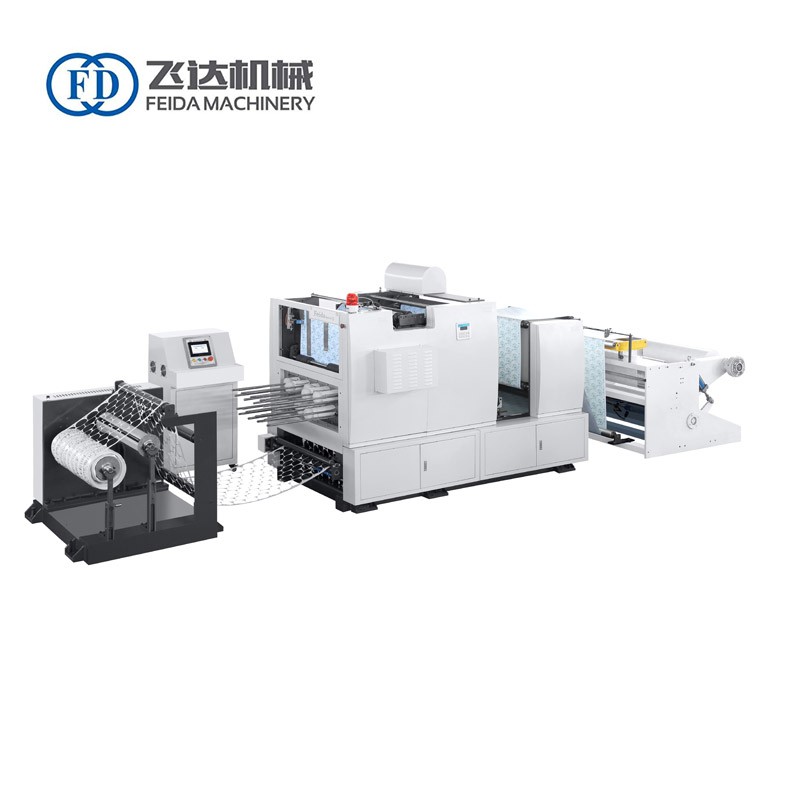

CLB series automatic roll punching machine based on international advanced technology, it’s widely used in aluminum lid, paper lid, ice cream paper cono, instant noodles paper aluminum cover etc.. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, photoelectric correcting deviation system, centralized oil lubrication.
Technical Specification Model CLB500 CLB700 Max Paper Width 490mm 690 Max Punching Area 460*300mm 660*300mm Cutting Precision ±0.20mm Paper Gram Weight Paper Gsm: 60-120g/m2, Thickness:
≥0.06mm (aluminum foil, laminated paper, plain aluminum) Paper Gsm: 60-120g/m2, Thickness:
≥0.06mm (aluminum foil, laminated paper, plain aluminum) Production Capacity 100-200times/min Air Pressure Requirement 0.5Mpa Air Pressure Consumption 0.25m³/min Weight 4T 5T Max Roller Diameter 800mm Total Power 10KW
