Description
1) Ceramic anilox cylinder to transfer the ink
2) Automatic magnetic powder brake controller for unwinding & rewinding
3) Tension controller for unwinding (Mitsubishi, Japan)
4) Tension controller for rewinding (China)

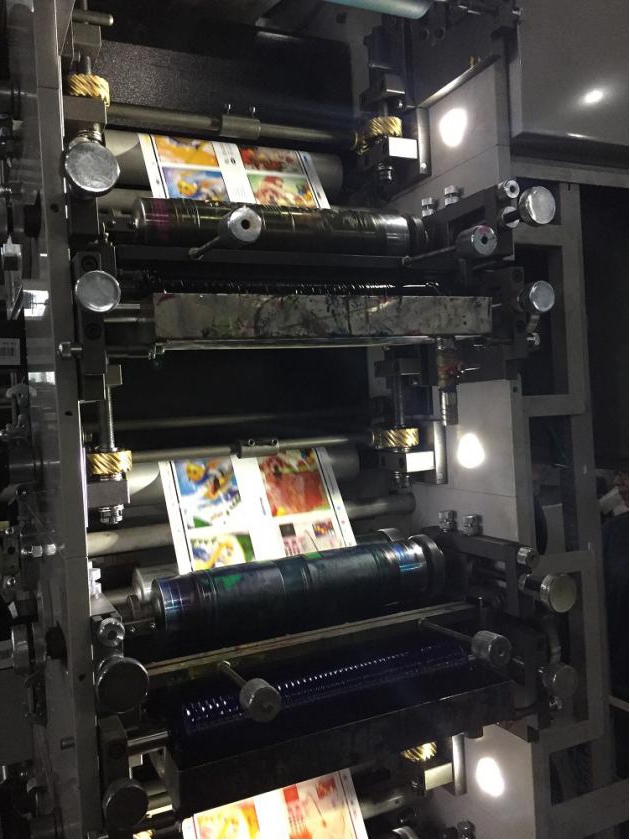

5) Printing unit: 360°Plate-adjustment
6) IR dryer for each printing unit.
7) The spare parts have a die-cutting station with the machine which made printing and die-cutting finished in one process.
8) The ink rollers will be separated from the printing roller, and keep running, when machine stopped
9) Frequency inverter for speed controlling
10) UV dryer on the top of machine, if it has (optional)
11) Double sides printing of material-reversing device
12) 3 sets of plate cylinder
13) Feed paper form roll material, print, coating, dry automatically by infrared ray, laminating and rewinding completed in one time.
14) It is an ideal machine for printing trade invoice and top-grade adhesive label
Main technical specification
Model | ZBS320B |
Printing speed | 50m/minute |
Printing color number | 6color |
Max width of paper | 320mm |
Max printing wide | 310mm |
Max unwinding diameter | 600mm |
Max rewinding diameter | 600mm |
Printing length | 175-320mm |
Thickness of flexo plate | 1.7mm |
Precision of chromatography | ±0.1mm |
Overall dimension | 2（L）×1.1(W）×3.3（H）m |
Weight | about 2700kg |
