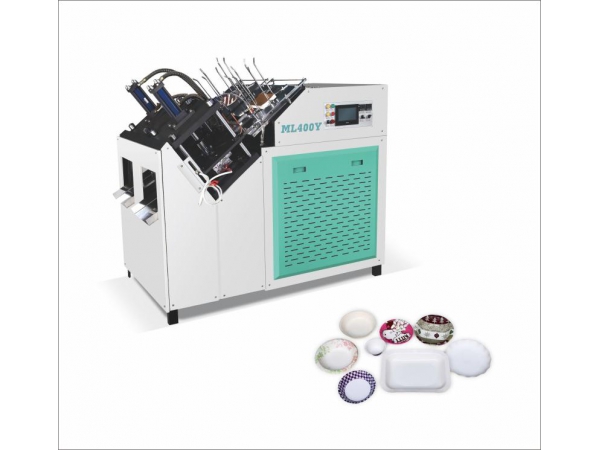

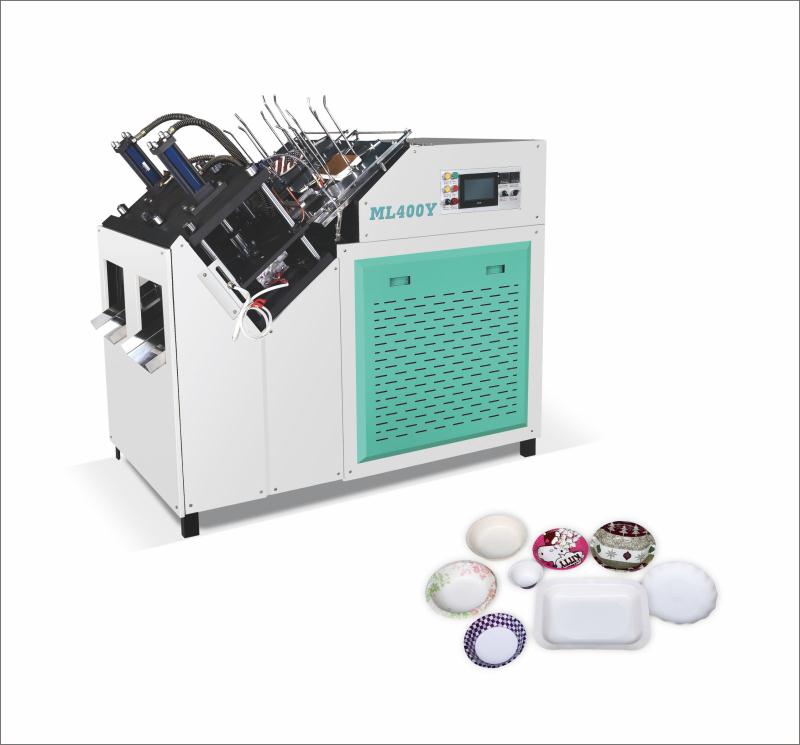

ML400Y high-speed & intelligent paper plate machine adopts hydraulic automatic forming, automatic paper feeding and blowing, it has very stable performance and good finished product, its speed up to 50-75 per minute.
Machine with touch screen panel, easy operation and labor saving, it is suitable for producing paper plate size of 4 to 11 inches and paper weight between 160 and 1000 g / m2. Due to its unique structure, the machine can also produce paper bowls with a maximum depth of 50mm and raw material size (diameter unfold) of no more than 30 cm. So ML400Y is an ideal equipment for producing paper plates and paper bowls, as well as all kinds of plates at the same time.
Main Technical Parameters | |
Paper Plate Size | 4-11” |
Paper Grams | 160-1000g/m2 |
Paper Materials | Base paper, whiteboard paper, white cardboard paper, aluminum foil paper or others |
Capacity | 50-75pcs/min（2 stations） |
Power Requirements | 380V 50HZ |
Total Power | 5KW |
Weight | 800kg |
Specifications | 1850×1200×1700mm |
Air Supply Requirement | 0.5Mpa, 0.5cube/min |
