Characteristic
l Special front location with high accuracy.

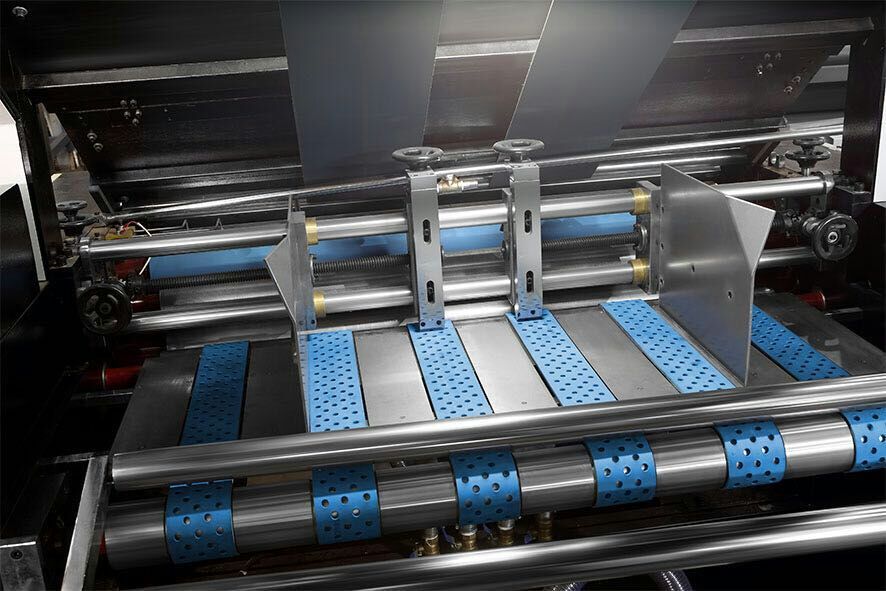

l Surface paper feeding adopts overlappping feeding style which makes paper conveying more stable.
l With the advance PLC tracking technology, according the size of paper automatically adjust the relevant parameters, which makes the machine always operate at the best state.
l Bottom paper feeding adopts rotary telesopic frame, which more adapts to warped corrugated board.

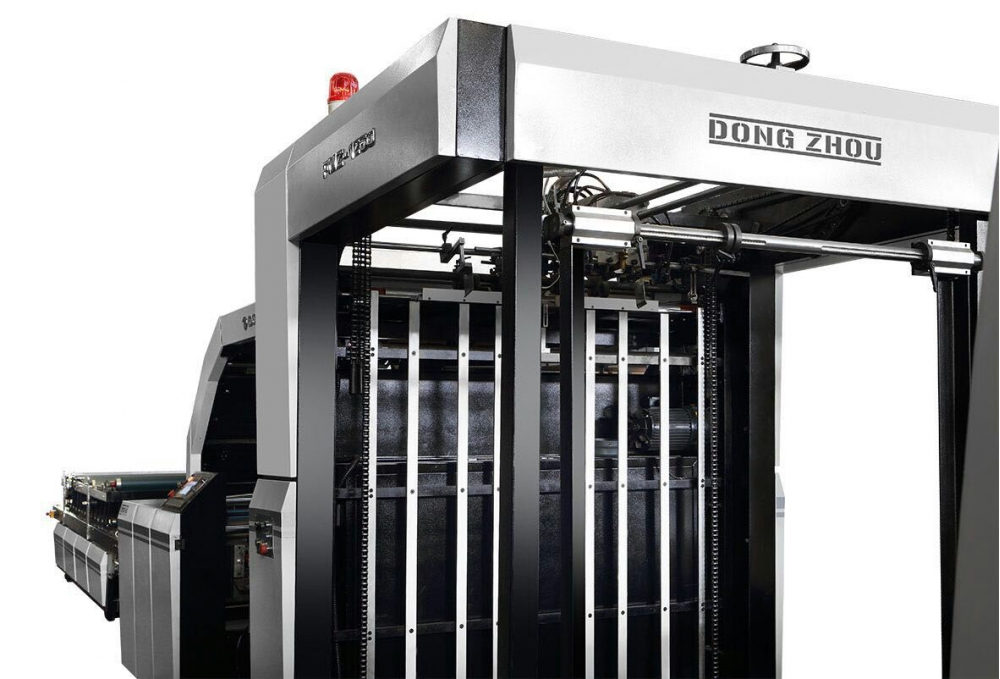

l The feeder with pre-stacking device, so as to reduce the stopping time of machine and improve productivity.
Function
l SIEMENS brand PLC control system, simplify electric equipment’s structure for more stable and reliable controlling.

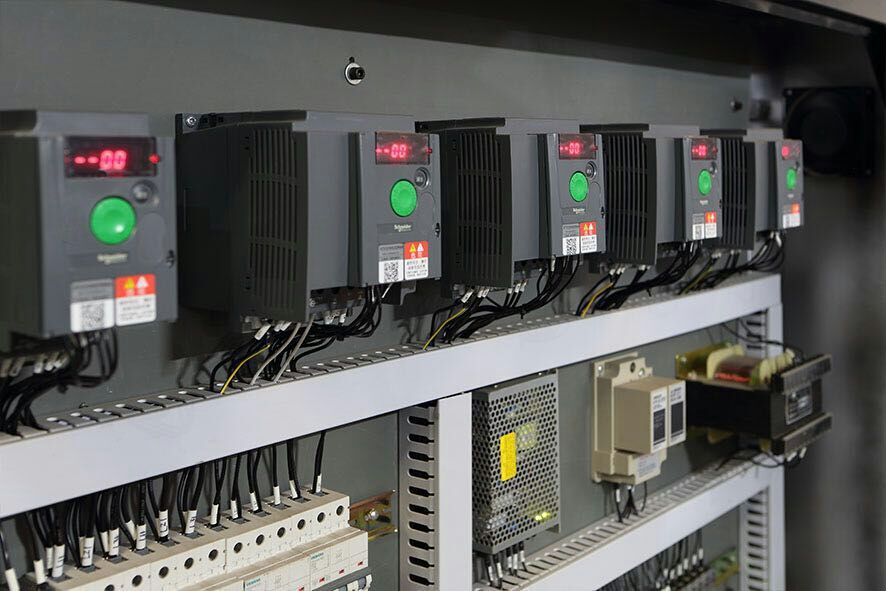

l With frequency conversion speed adjusting system, realize no-stop stepless variable-speed regulate.
l Automatic operation state displaying, automatic trouble alarming, and stopping.
l Automatic empty and double paper examining and alarming.
Main Technical Specification

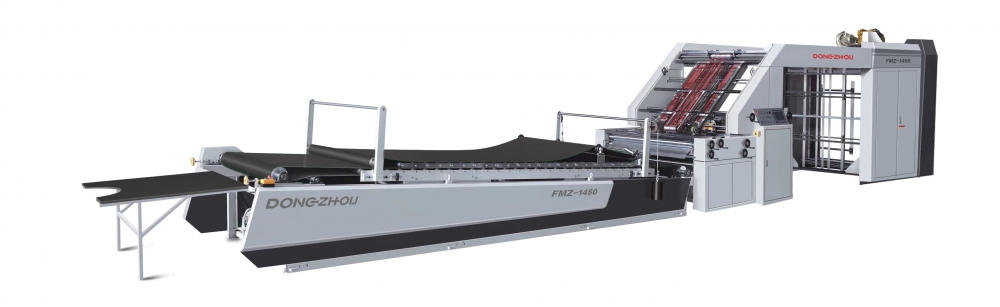

Model | FMZ-1450 | FMZ-1700 |
Max. sheet size | 1400x1300mm | 1650x1500mm |
Min. sheet size | 400x400mm | 400x400mm |
Precision | ±1mm | ±1mm |
Machine speed | 2000~6000pcs/hour | 2000~5000pcs/hour |
Surface paper thickness | 250~450gsm | 250~450gsm |
Bottom paper type | A.B.C.E≤ 7mm | A.B.C.E≤ 7mm |
Total power | 15kw | 15kw |
Overall dimension | 14500x2500x2600mm | 14800x2700x2600mm |
