This type of handle fixing equipment is our newly developed product. Installed with servo motor and automatic handle cutting device, it shows precise locating ability. It is the ideal machine for paper cup handle sealing and fixing, thanks to high stability and efficiency and low energy consumption.

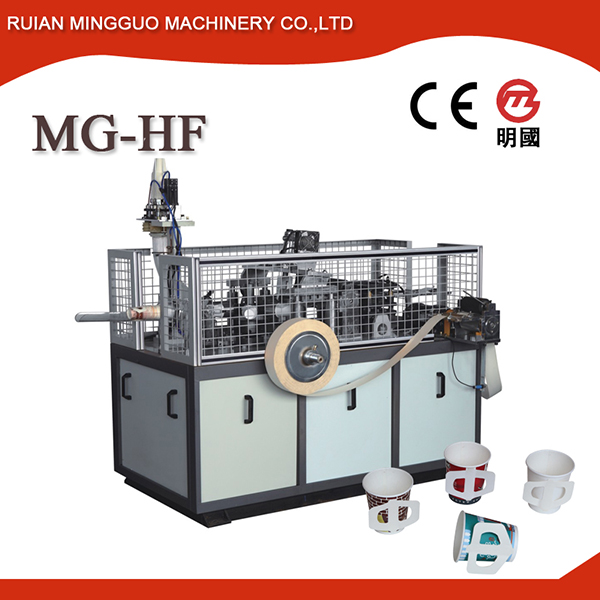

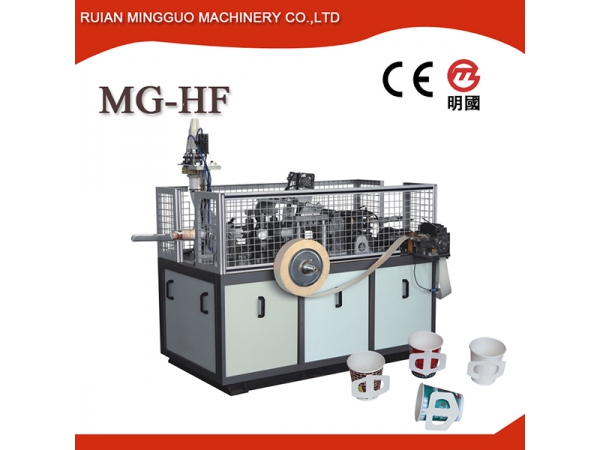

Technical Information of Paper Cup Handle Fixing machine
Paper cup capacity: 6-12 OZ
Paper material: 190-350g/m2 one-side or two-side PE coated paper
Production capacity: 25-50 pcs/min
Power Source: 380V
Total Power: 5KW
Total Weight: 800KG
Package Size: 1900mm*1200mm*1600mm
Note: Customized machines are available.
Production Process of Automatic Handle Fixing Machinery
1. Paper feeding
2. Cup feeding
3. Paper cut into expected handle
4. Handle and cup sealed by ultrasonic
5. Cup collecting
More Information
1. This automatic cup handle fixing device yields 40-45 cups every minute.
2. A full-automatic system makes the operation convenient and easy.
3. When paper shortage happens, the alarming device will give a warning signal.
Service
Our company provides unsurpassed and consistent service for clients. We can help you resolve problems via e-mail, telephone, video, etc. For better service, our customer service staff will be online around the clock. If needed, we can assign professional engineers or technicians to your company.
All machines will be packaged with wooden cases.
