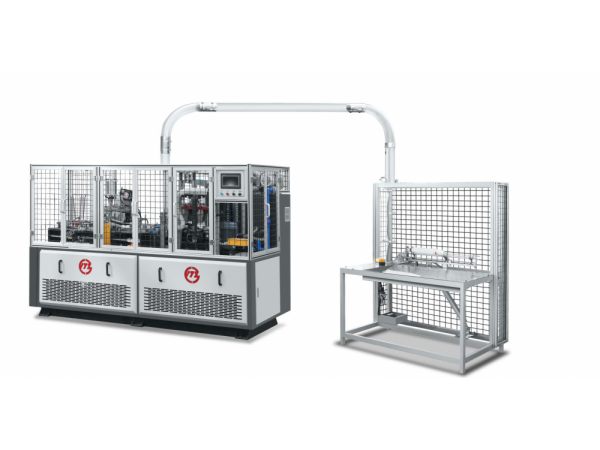

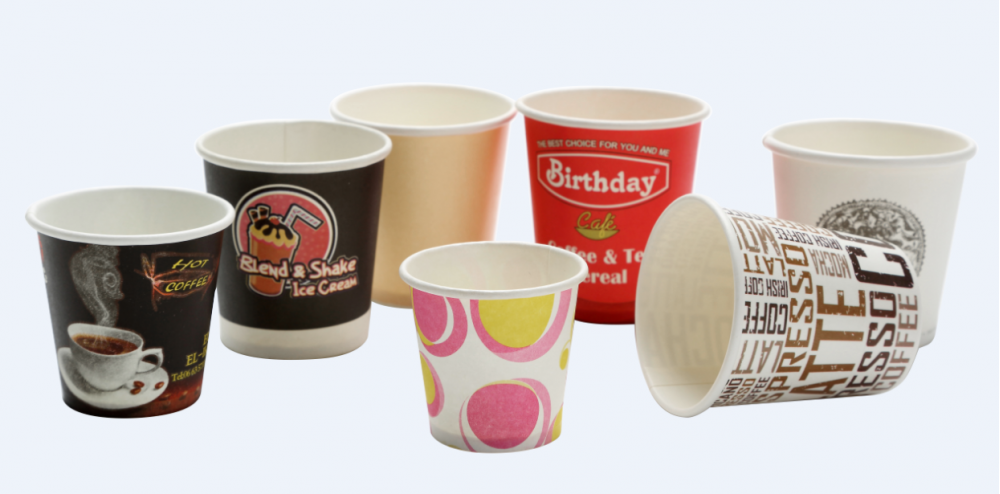

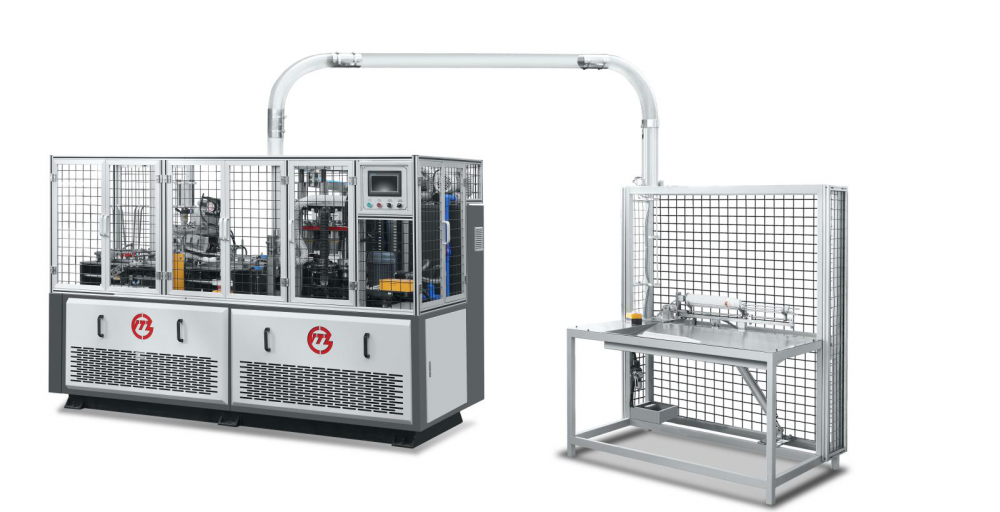

MG-C600, a newly developed from three turn-plates old type cup machine, achieves a manufacturing speed of 60-80pcs/min. This piece of paper converting equipment provides a multi-station design and is able to make single and double PE coated beverage cups, ice cream cups, coffee cups, bubble tea cups and more. In addition to that, this integrated automatic paper container forming machine combines all these processing procedures together: paper feeding, sealing, bottom cutting, lubricating, heatin
FEATURE
A. The machine adopts open cam type structure, high precision, large out-put and long life.

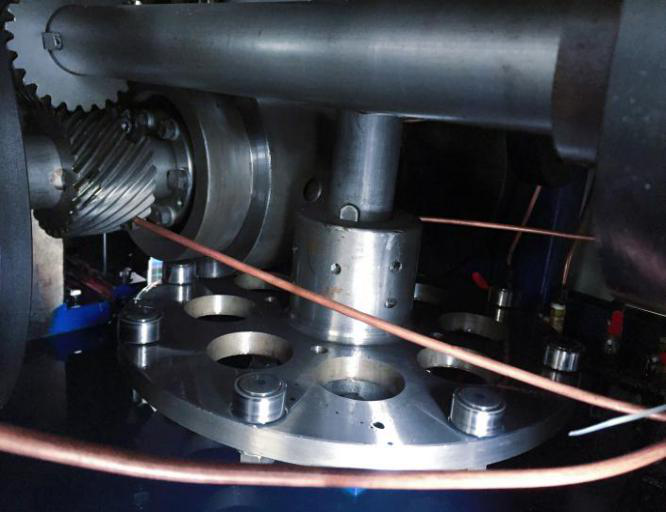

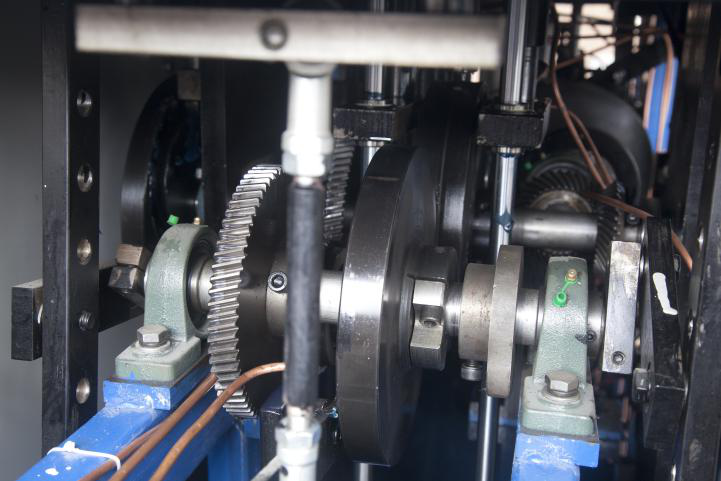

B. Longitudinal gear drive. This make up the chain drive jitter and instability's weakness.

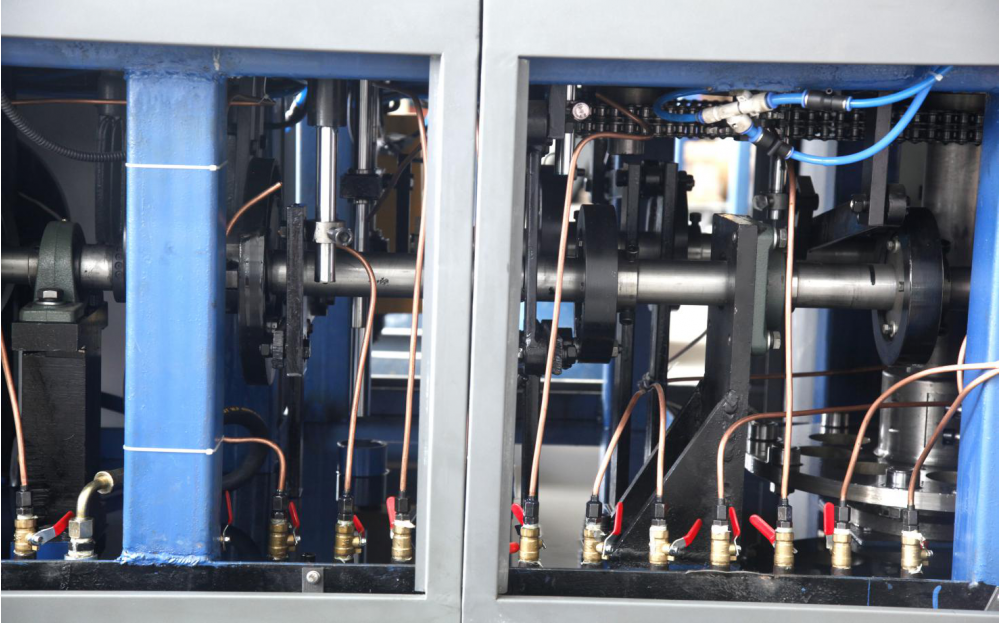

C. Whole machine is box type structures design, filling oil by spray lubrication system So that it can run fast and stably.
D. Photoelectric failure-detecting system is available. PLC control system for the whole cup forming process.
E. Servo control to send bottom paper of cup, deliver bottom when cup tube come, otherwise no bottom delivery.
F. Stretch knife uses for bottom cutting. Easy changed and more stable.

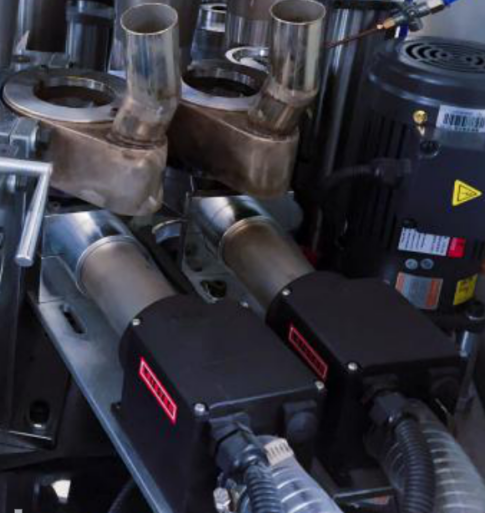

G. Switzerland Leister heating device is equipped for cup body and bottom sealing, bottom are heated at first before they are feeding, thus improving heating effect and helping guarantee knurling.

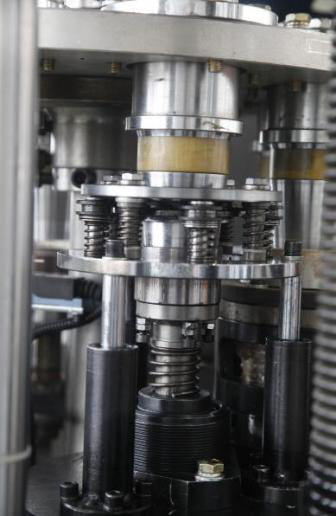

H. The knurling device adopts hardening treatment,make up the cup knurling more beautiful and increase it use life.
Model | MG-C600 |
Paper cups specification | 4-16oz (100-450ml)(mold exchangeable) T:55-85mm H:60-135mm B:55-70mm |
Air supply requirement | 0.5-0.8MPa，0.4cbm/min |
Paper specification | 150-350 GSM single/double PE coated paper |
Production capacity | 60-85 pcs/min |
Voltage | 220V/380V |
Total Power | 7KW |
Total Weight | 3000KG |
Dimensions | 2800mm*1300mm*1850mm |
Note | Customized service is available |
