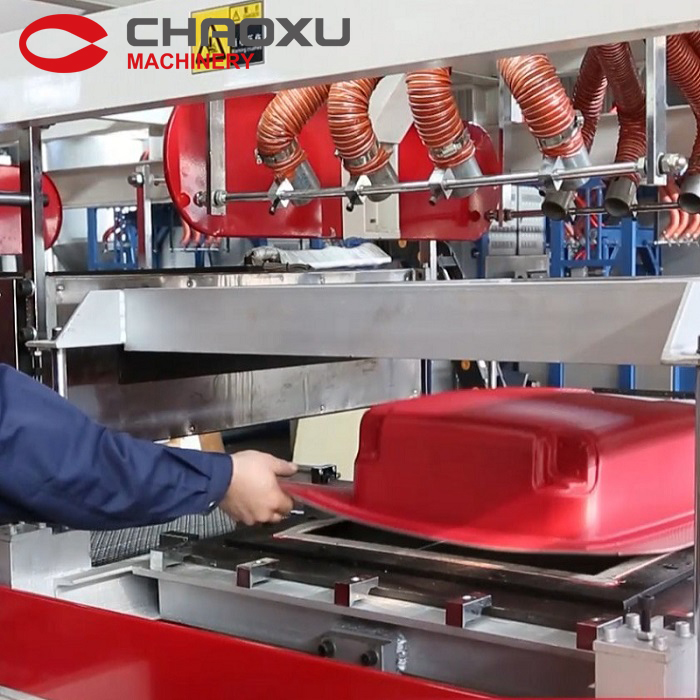

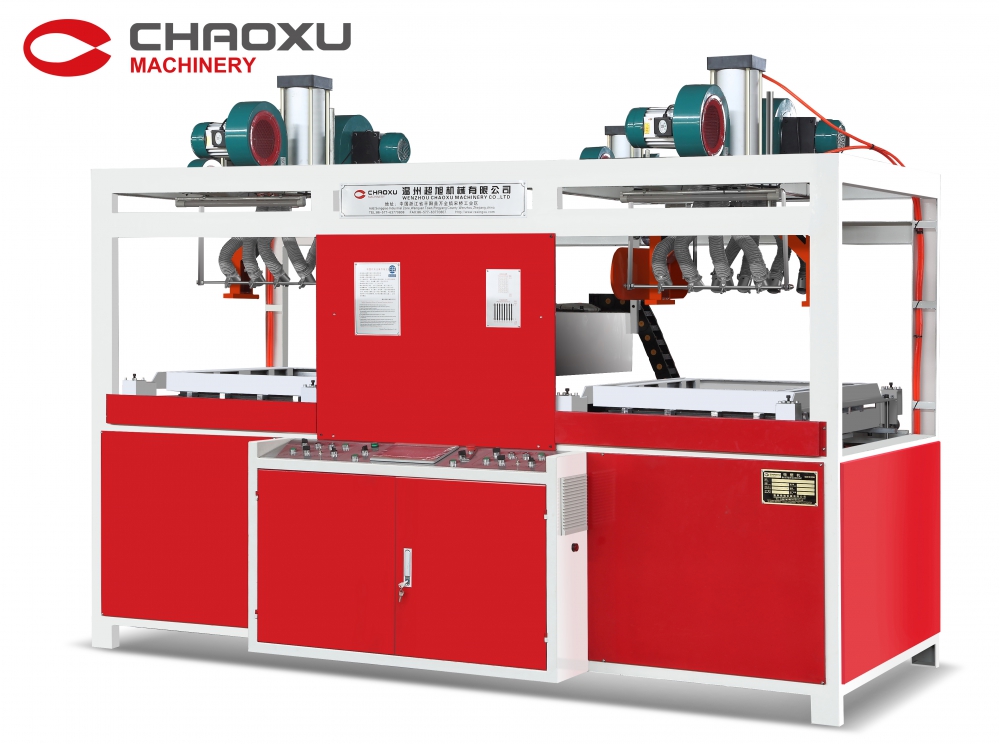

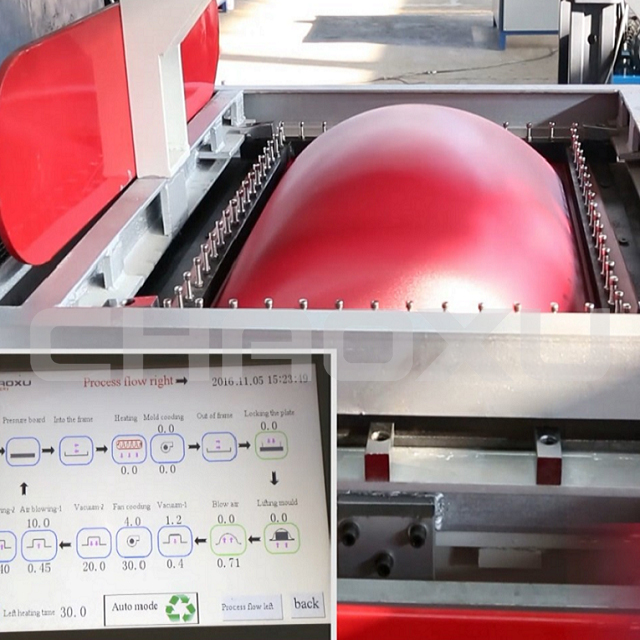

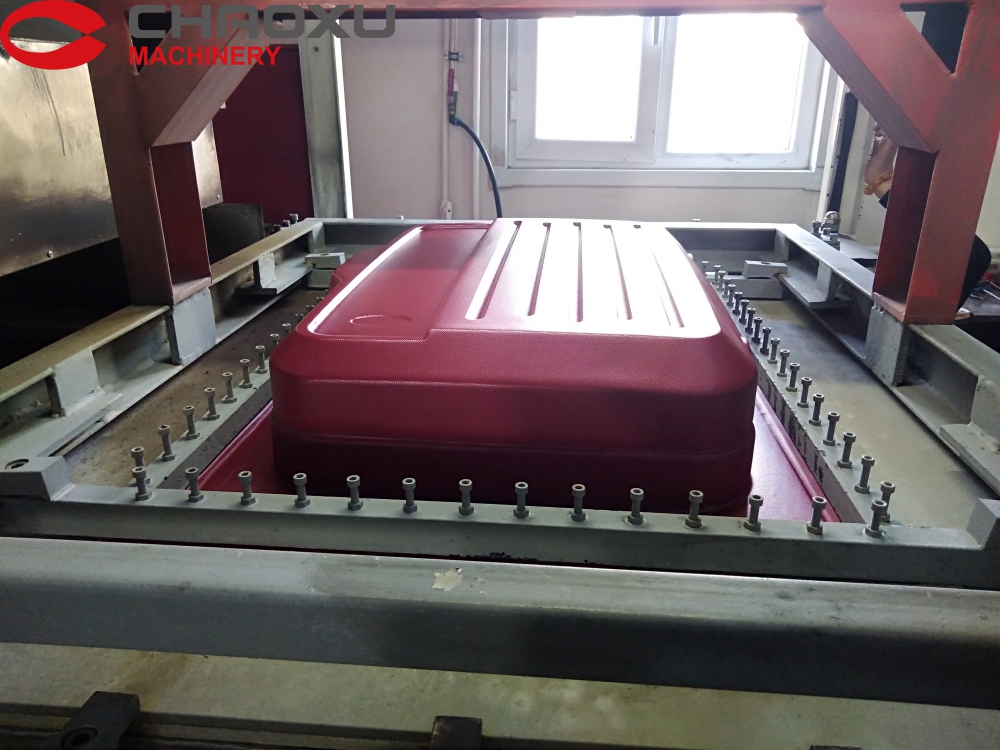

This machine is suitable for forming of such sheet as ABS,PC or recycled material.It is special for processing luggage/trolleycase shell professionally with fast speed and high good quality. The YX-A series is provided with automatic separated fram operation and upper-lower double heating with PLC intelligent control system.Machine can be customized as customer required.
1.The frame is separated.Workers don't need to consider which side first,It is easy to process ,and it improves the efficiency.

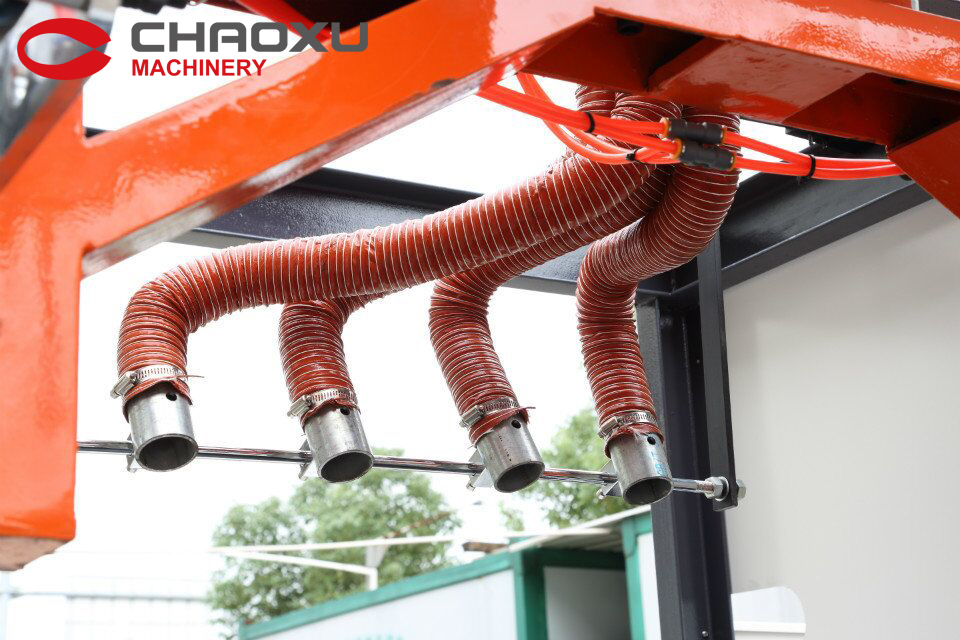

2.Better cooling systerm.The cooling systerm can change any direction where you want to cool down most.
3.Application of infrared detection technology.Application of infrared detection technology.It can make blowing process much more stable and improve the luggage shell quality.
4.Lower noise.It is adopted silencing Technology.Machine’s working noise is much lower than other factory’s.
5.High temperature resistance material.The frames are painted with high temperature resistance material, can up to 500 degree.It can keep frame good color. (Other factory’s frames colors are easy to be black once worker start operating machine)
Model | YX-20A | YX-24A | YX-28A |
Forming Dimension | 730*500*180MM | 830*600*230MM | 930*700*230MM |
Overall Dimension | 2900*1800*2300MM | 3200*1900*2400MM | 3500*2000*2400MM |
Weight | 2T | 2.2T | 2.5T |
Total Power | 26KW | 31KW | 35KW |
