Performace and Characteristics:

1. It is suitable for various kind of plastic woven bag (including laminated bag, printed bag)

2. It is fixed length and fixed mark cutting under the set rang.
3. Automatic counting, photocell tracking, remote control.
4. The length of cutting is accurate to 100-2500mm
5. Max. width of bag is 800mm
6. Cutting speed is 20-70pcs/min.
7. Automatic unwIding lifting.
8. The blade can't be stick and drop.


Main Technical Parameters:

MODEL

KWR-800

MAX. CUTTING WIDTH (MM)

800

CUTTING LENGTH (MM)

100-2500

CUTTING PRECISION (MM)

+-1

PRODUCTION CAPACITY (PCS/MIN)

20-70

GROSS POWER (KW)

4

Weight (kg)

600

Installing Dimensions (L×W×H) (mm)

5500*1600*1600

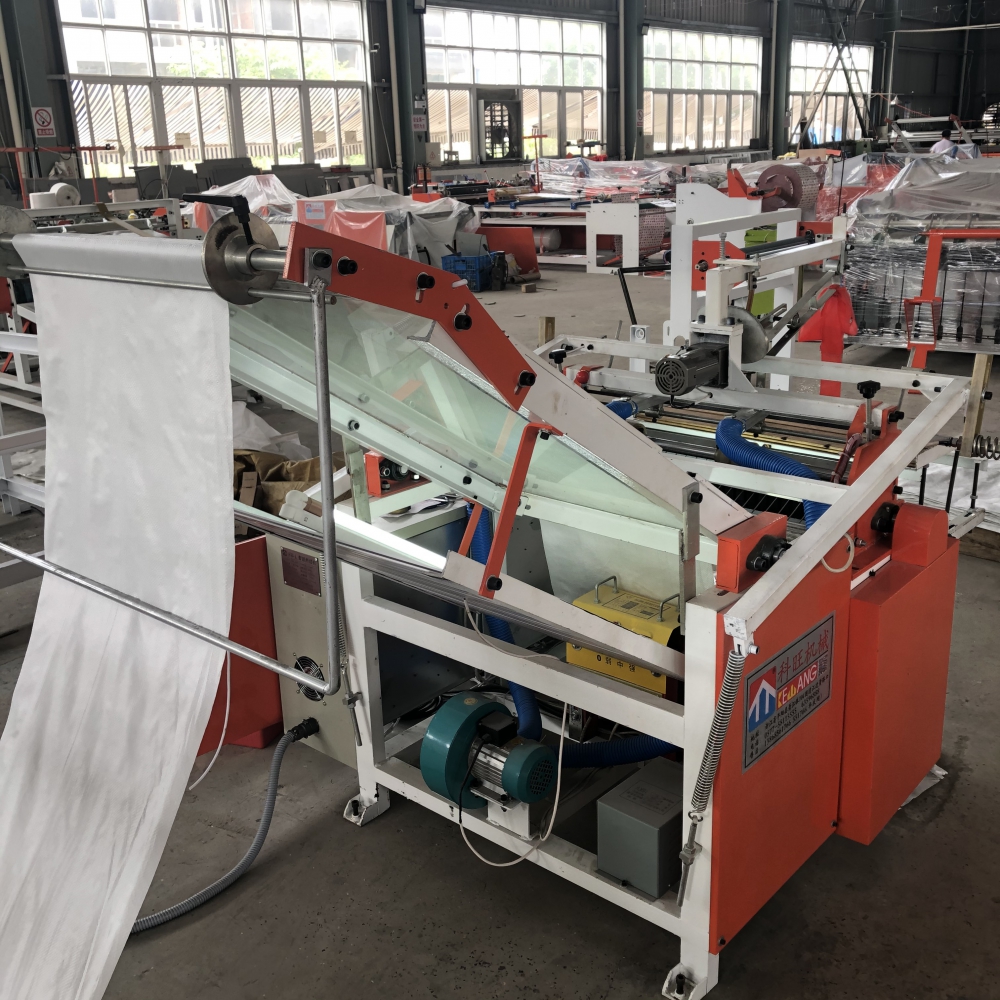

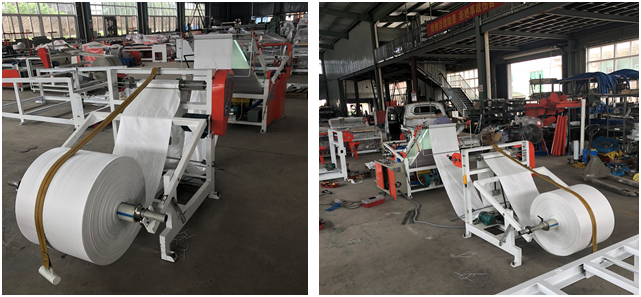

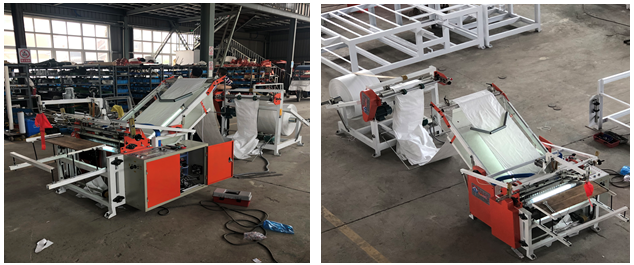

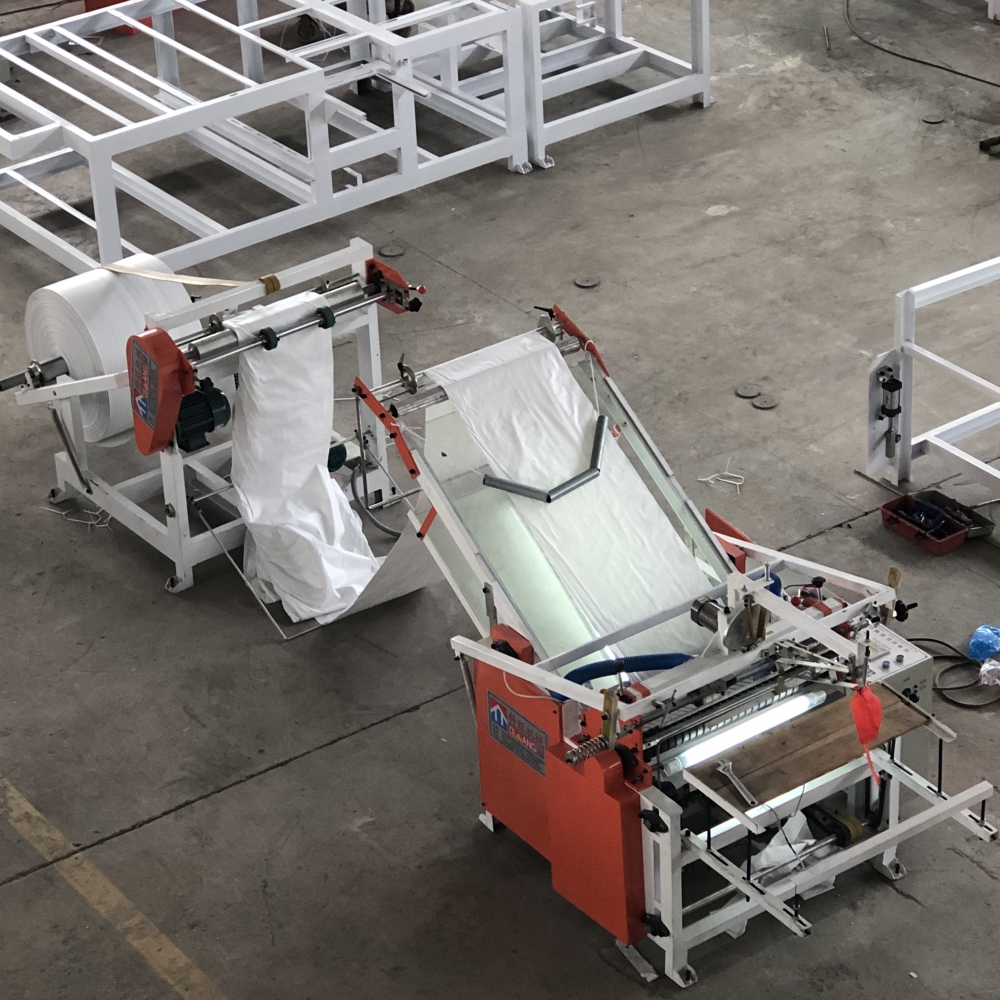

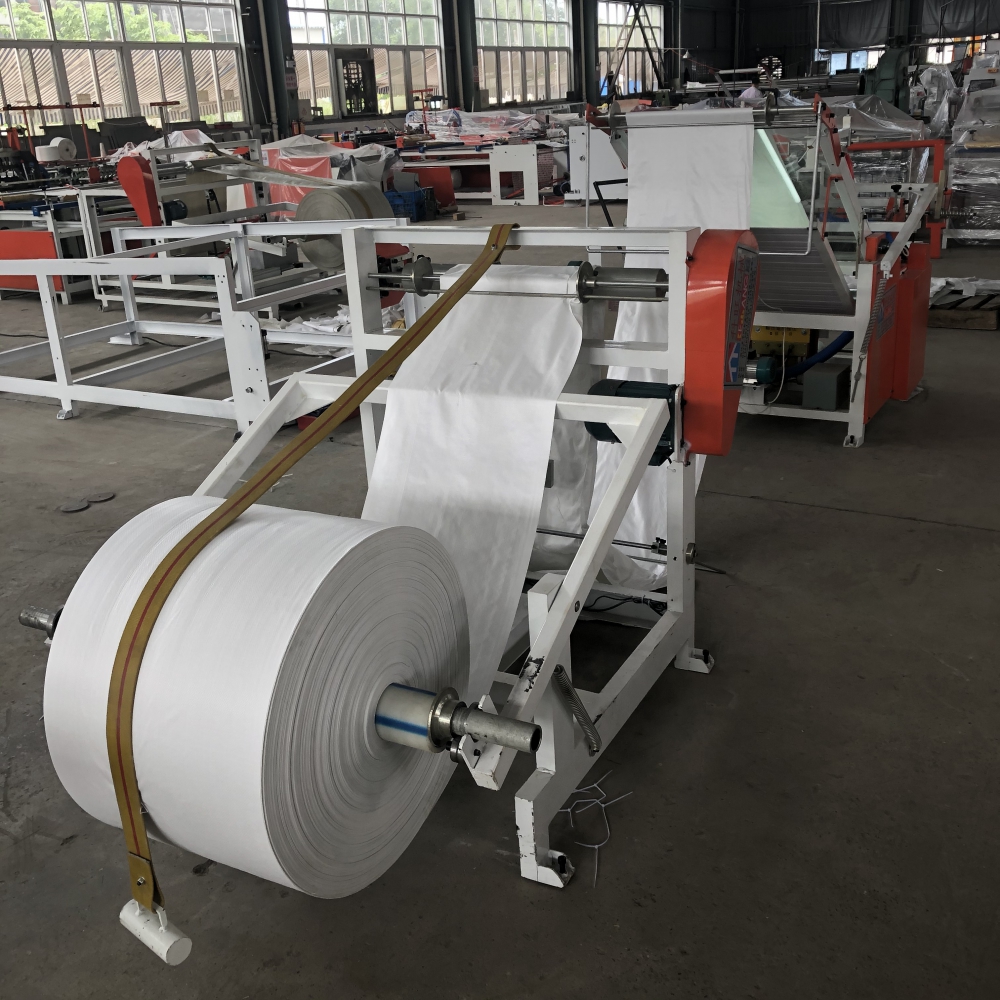

Machine details:
