Performance and characteristics:
1. Auto hea cutting and bottom sewing for pp woven bag to save the labor.(Flat blade or zigzag blade)

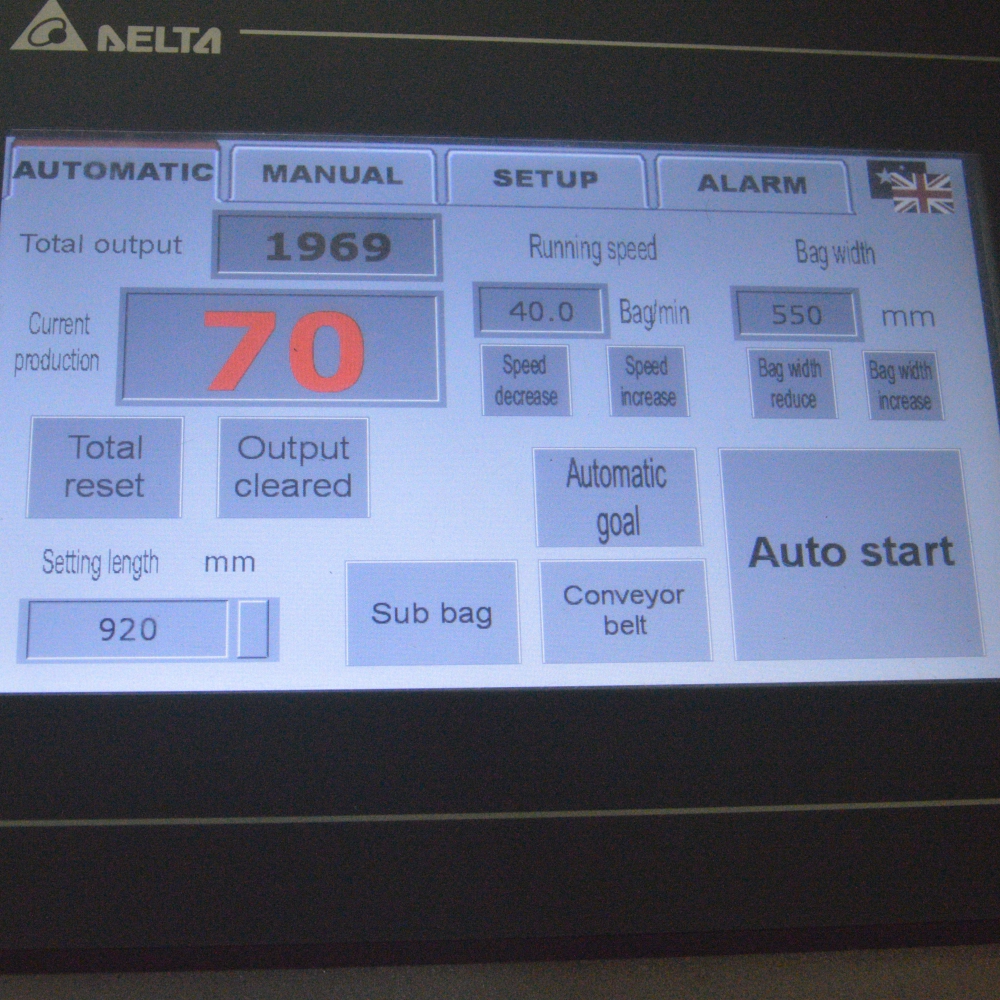

2. Touch screen (Delta), PLC (OMRON), servo motor (Kaizheng) to control the length of bag precisely
3. The month of the bag is easy open after heating cutting
4. Auto counting, integrated feeding.
5. Pneumatic rolling up, convenient operation.
6. voltage is 220V / 60HZ / 3PHASE, according to your requirement
7. the sewing machine head( shang peng brand) with single needle or double stitch
8. software is bilingual in Chinese and English

9.Ambient Temperature:0-45℃


Technical Data:

Model

KWY-800

Max. Diameter Of Unwinding Roll (Mm)

1200mm

Max. Cutting Width(Mm)

750mm

Max Cutting Length(Mm)

1300mm

Cutting Precision(Mm)

+-1

Production Capacity

60pcs/min

Gross Power

4kw

Installing Dimensions (L*W*H)(Mm)

6000*6000*1500mm

Weight (Kg)

25000kgs

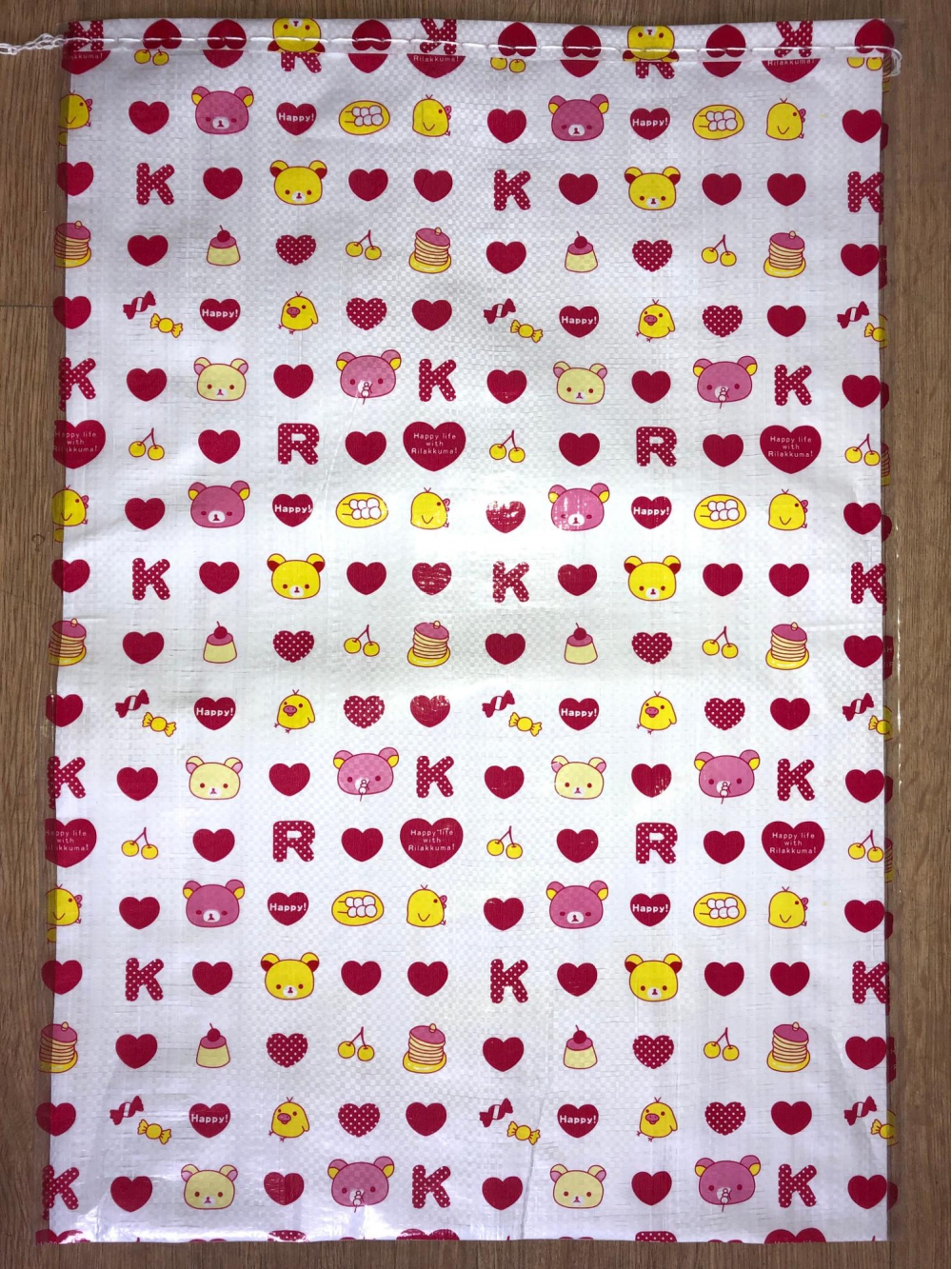

Sample bag :

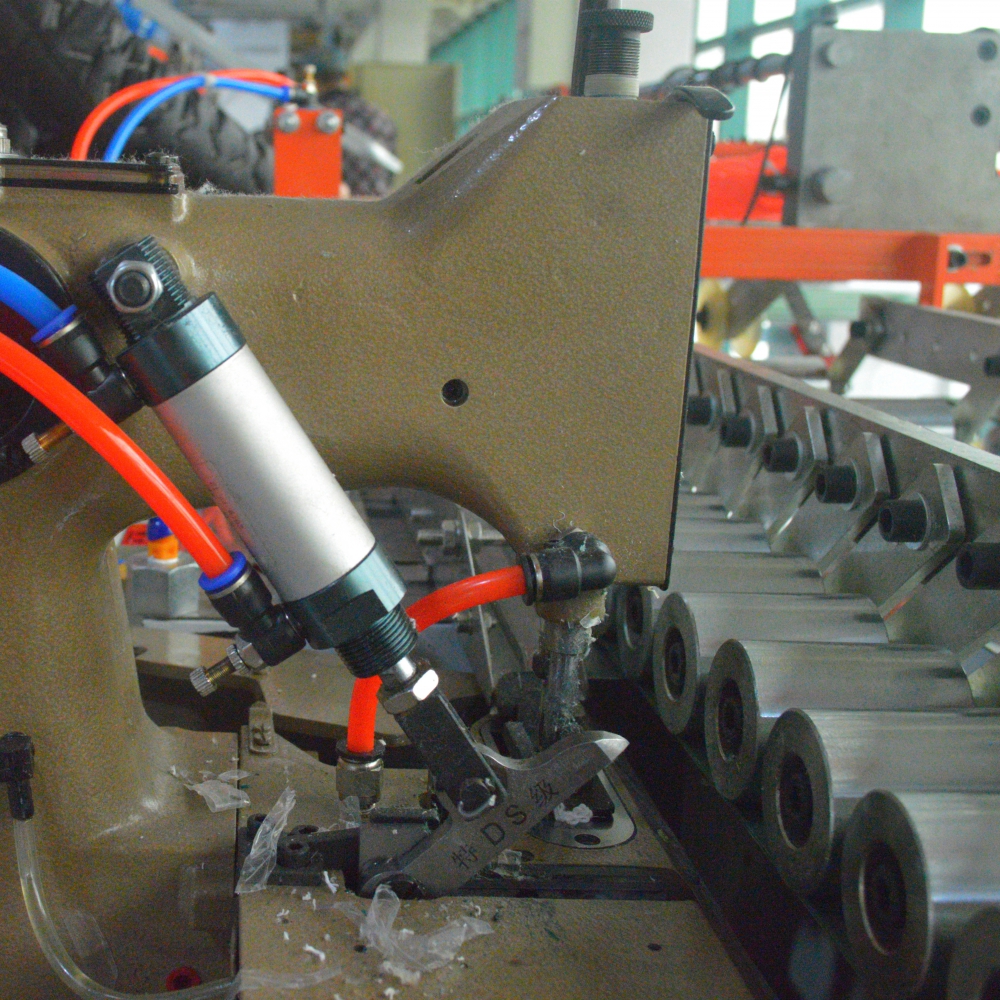

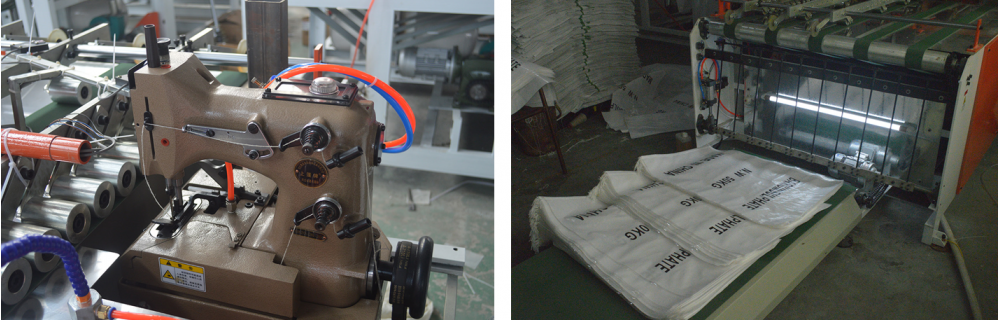

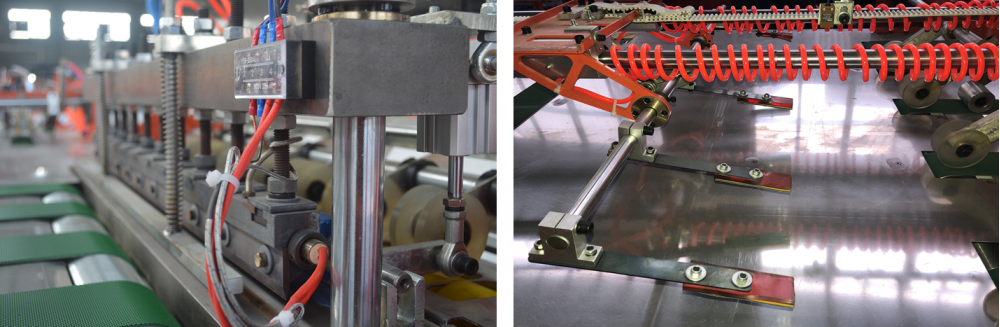

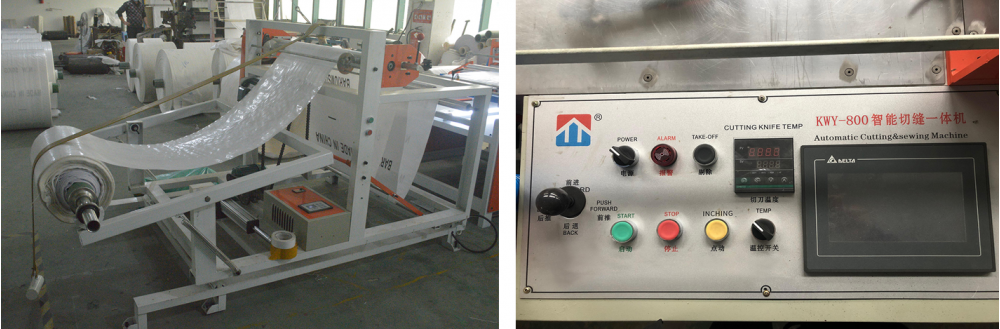

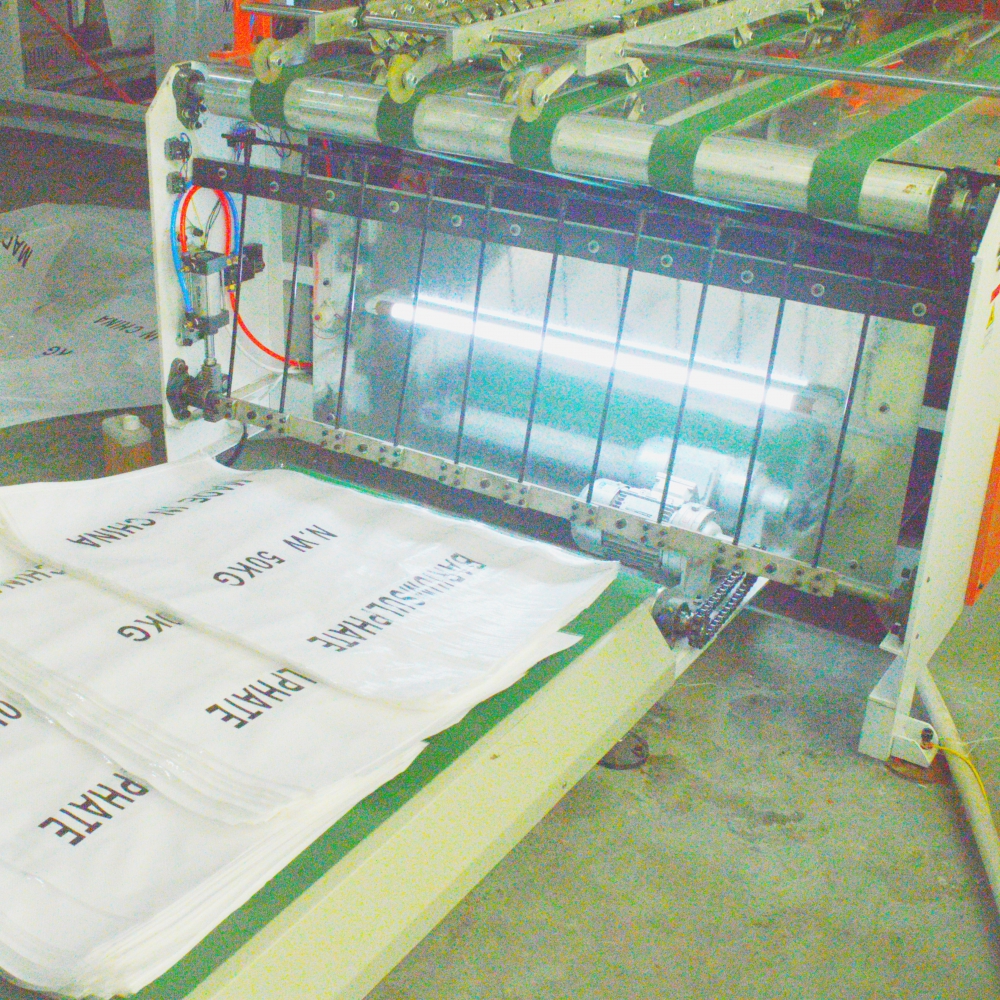

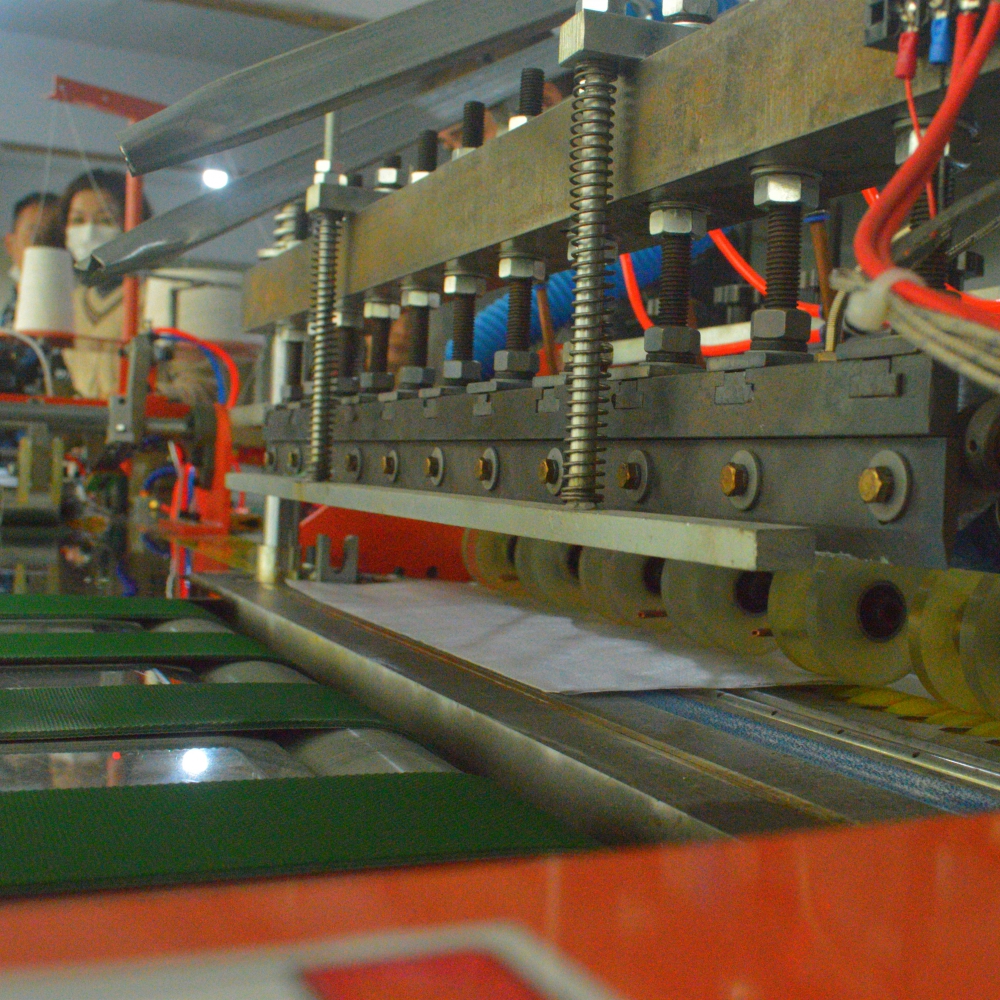

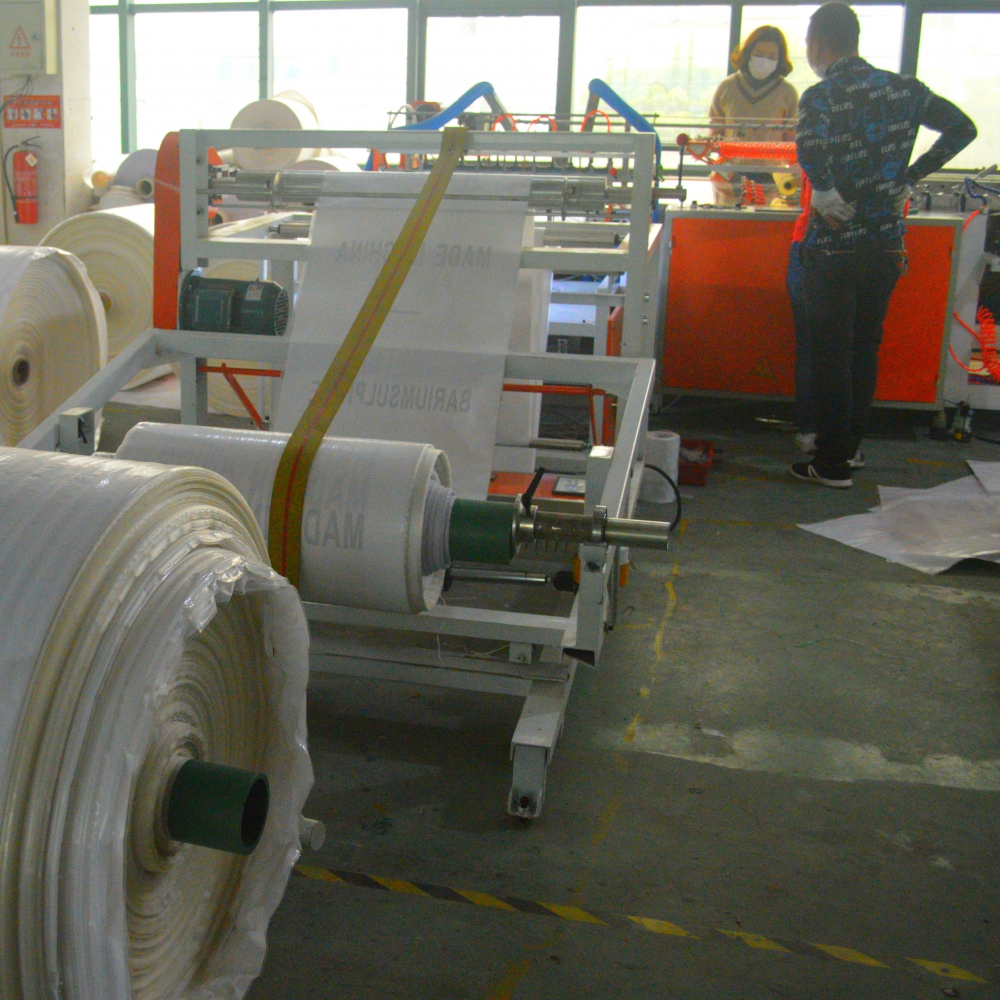

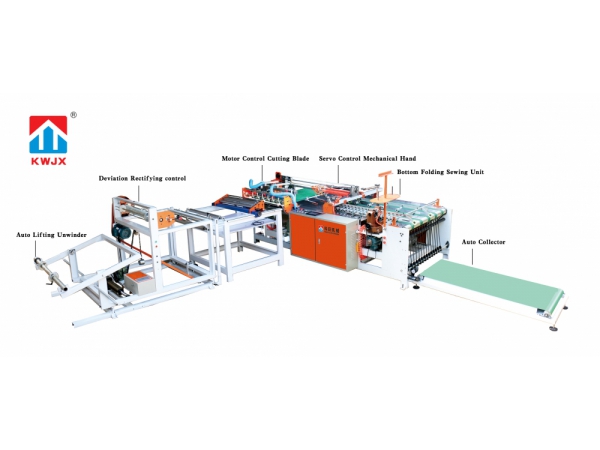

Machine details:
