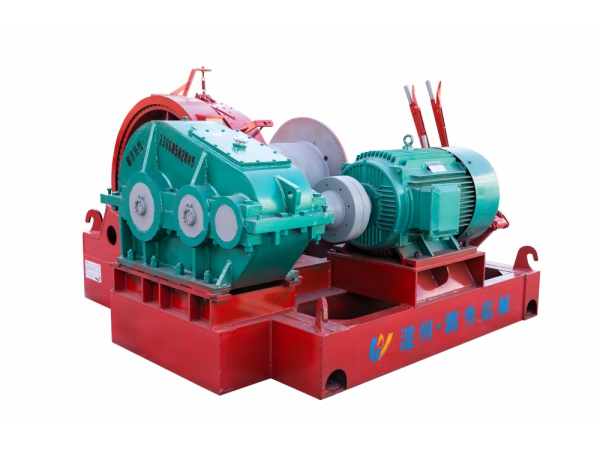

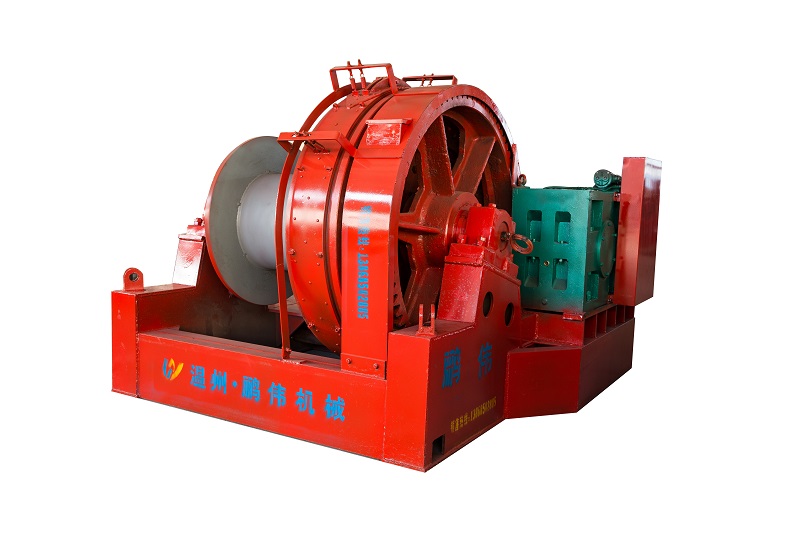

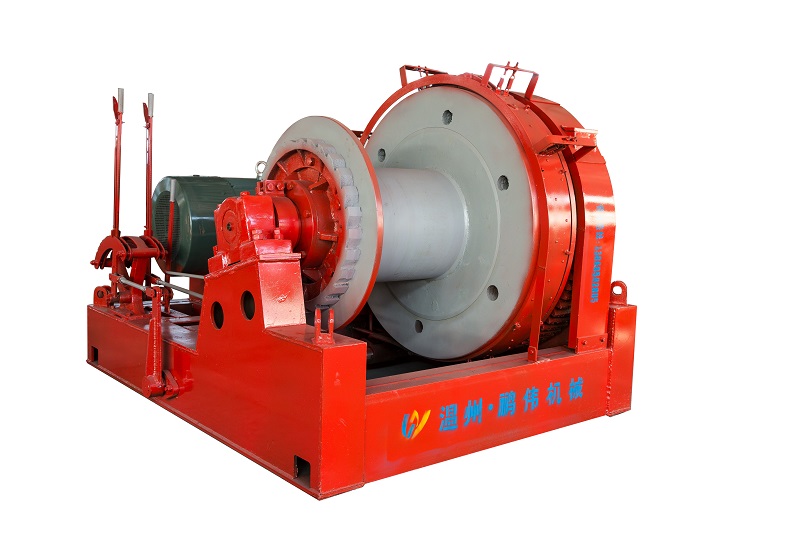

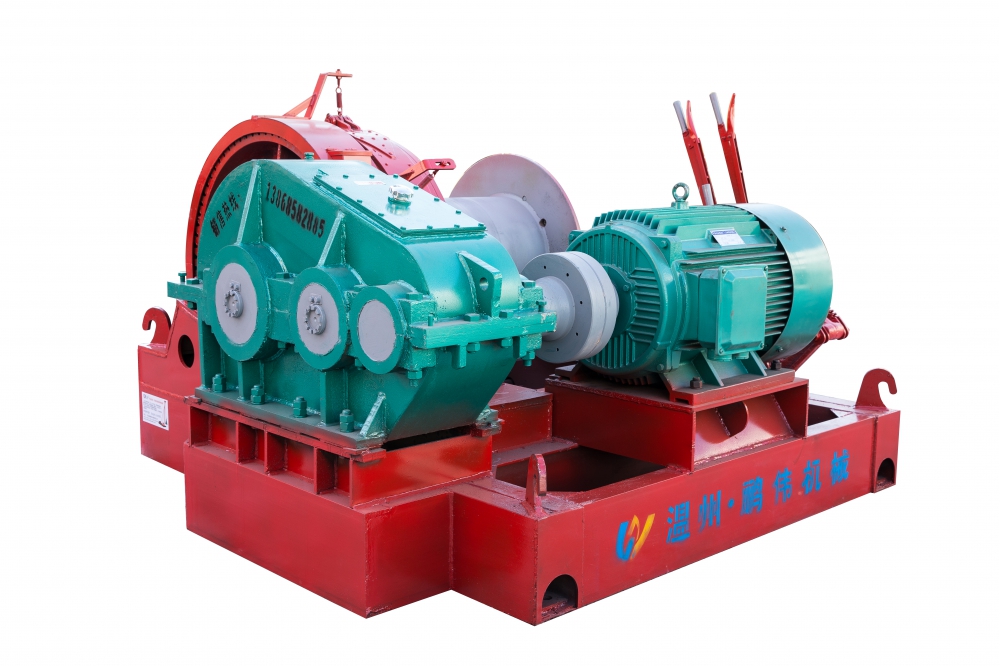

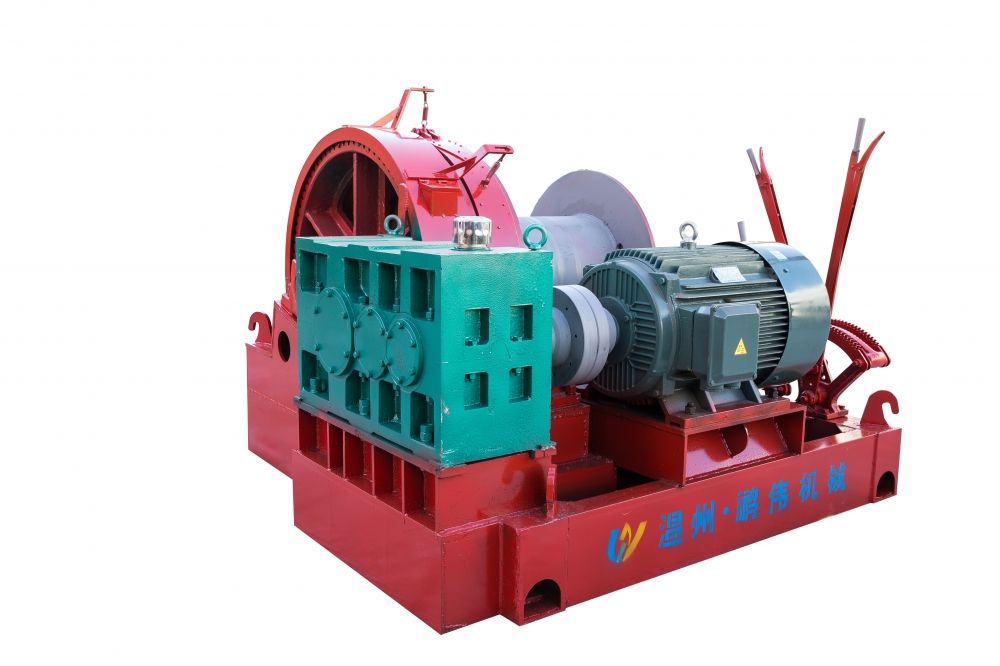

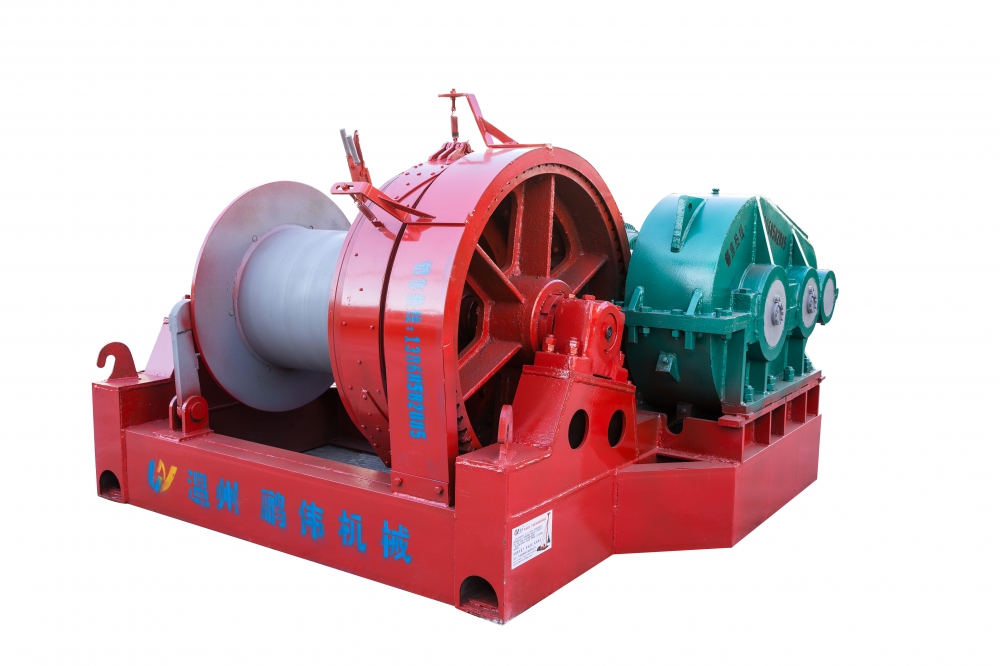

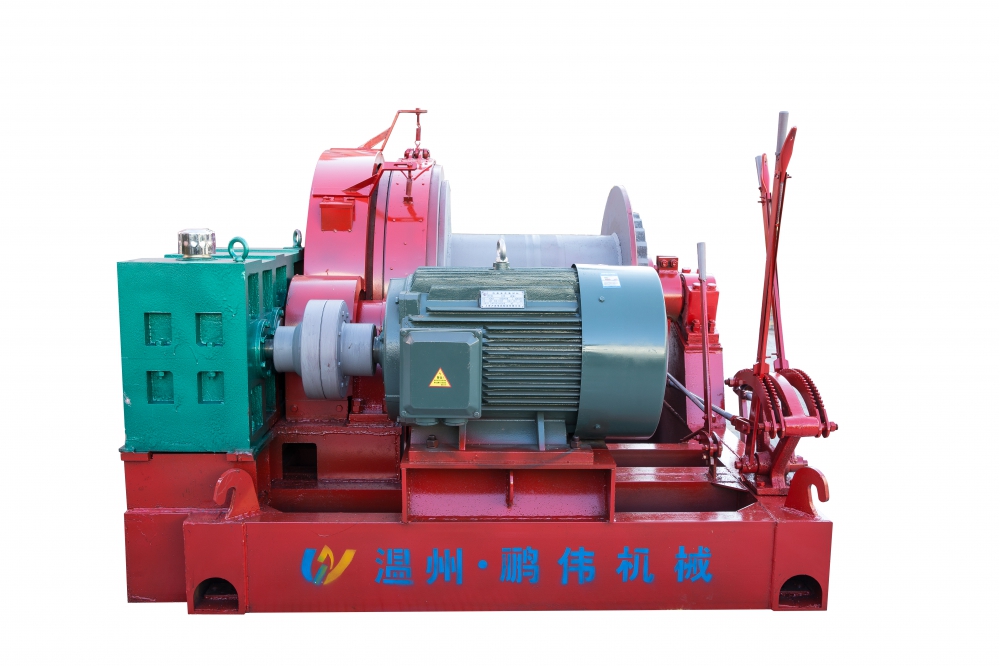

JKL fast rolling winch is a kind of hoisting machinery with high versatility. It can be used in construction sites or port terminals to lift heavy objects, or as traction power for installation projects in factories and mines. It can be used alone or in combination, it can also be combined with other machinery to form large and complex lifting equipment.
It is easy to operate, convenient to use, and has a wide range of uses. It is a necessary machinery for construction sites, ports, docks and ship transportation.
Features
1. Double clutch design, easy separation.
2. Full bearing structure, fast drop hammer speed.
3. The drum body and the friction disc can be separated, easy to maintenance.
4. Double oil seal sealing structure of reducer, stronger sealing.
5. Hard-tooth surface reducer has strong bearing capacity, stable rotation and low noise.
6. Wire rope brake device is added to increase braking torque.
Parameters
Model Basic parameters Rated traction（kN） Bottom rope speed（m/min） Wire rope diameter（mm） Rope capacity（m） Electric motor Dimensions（mm） Total Weight（kg） Model Power（kW） length width height JKL3 30 22 20 170 YE2-200L2-6 22 1650 1640 1300 1900 JKL5 50 22 22 170 YE2-225M-6 30 1650 1640 1300 2000 JKL6 60 32 28 200 YE2-280S-6 45 1850 1940 1300 3200 JKL6.2 70 32 30 200 YE2-280M-6 55 2150 2060 1350 3500 JKL8 80 32 32 200 YE2-280M-6 55 2290 2280 1490 5400 JKL10 100 30 32 250 YE2-280L-6 75 2150 2230 1600 6300 JKL12 120 28 36 250 YE2-315M-6 90 2450 2250 1750 7800 JKL16 160 28 40 150 YE2-315M-6 110 2680 2550 1810 10500 JKL20 200 18 40 150 YE2-315M-8 110 3150 2550 2130 12200 Note: The wire rope could be selected by the customer. Other specifications and models could be customized. Technical changes would not be notified separately, please refer to the actual situation.
