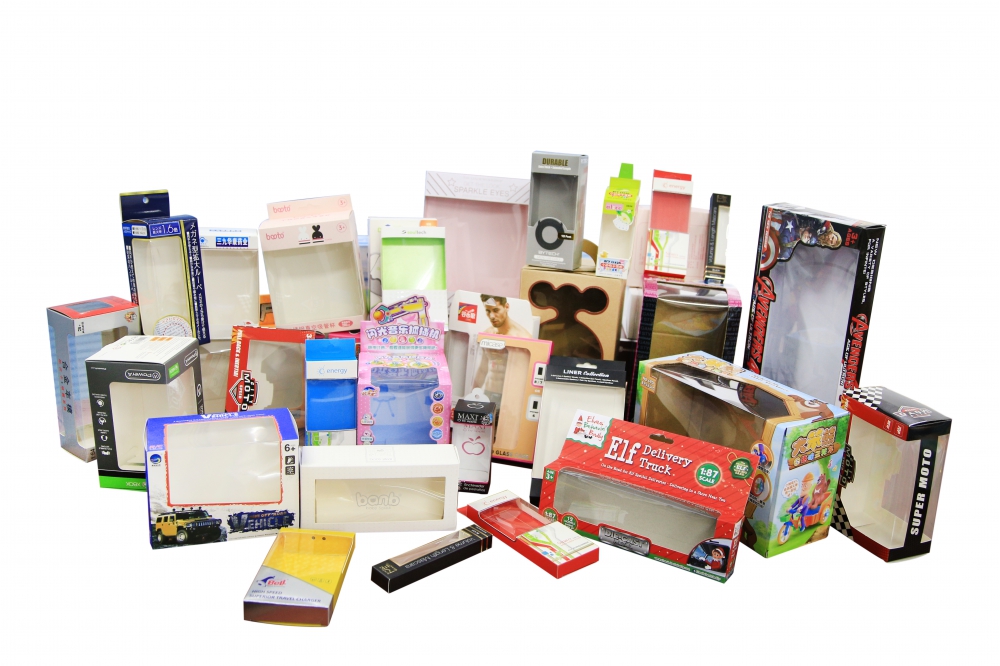

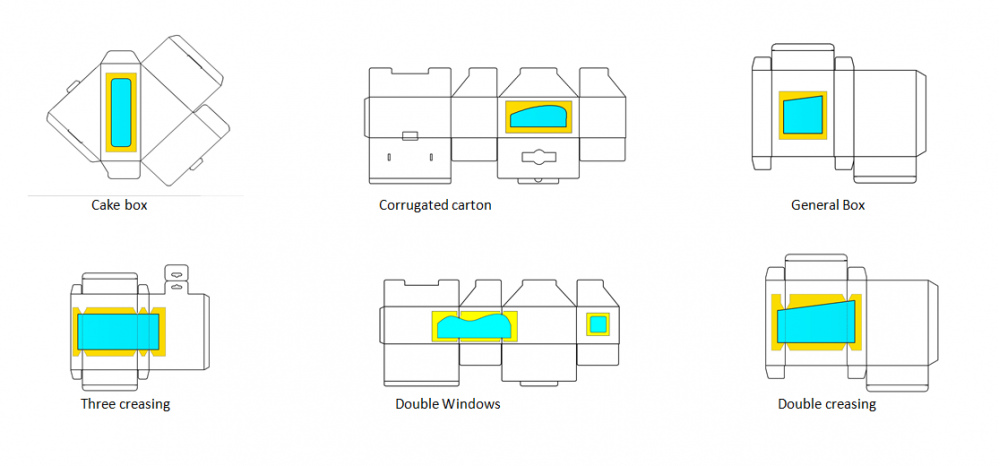

Producible Box Sample

Major Function
Horizontal knife cutting film+Single group film applicator
Servo motor paper feeding
Servo motor film feeding
Paper receiving stepper with batch counting
Paper vacuum adsorption transport
Double sheet / empty sheet gluing rising automatically
High precision point to point positioning
Film with creasing and cutting angle function
Follow lable of film printing surface
Film with punching holes
Film with transverse creasing (optional)
Film constant temperature leveling system (optional)

Specifications

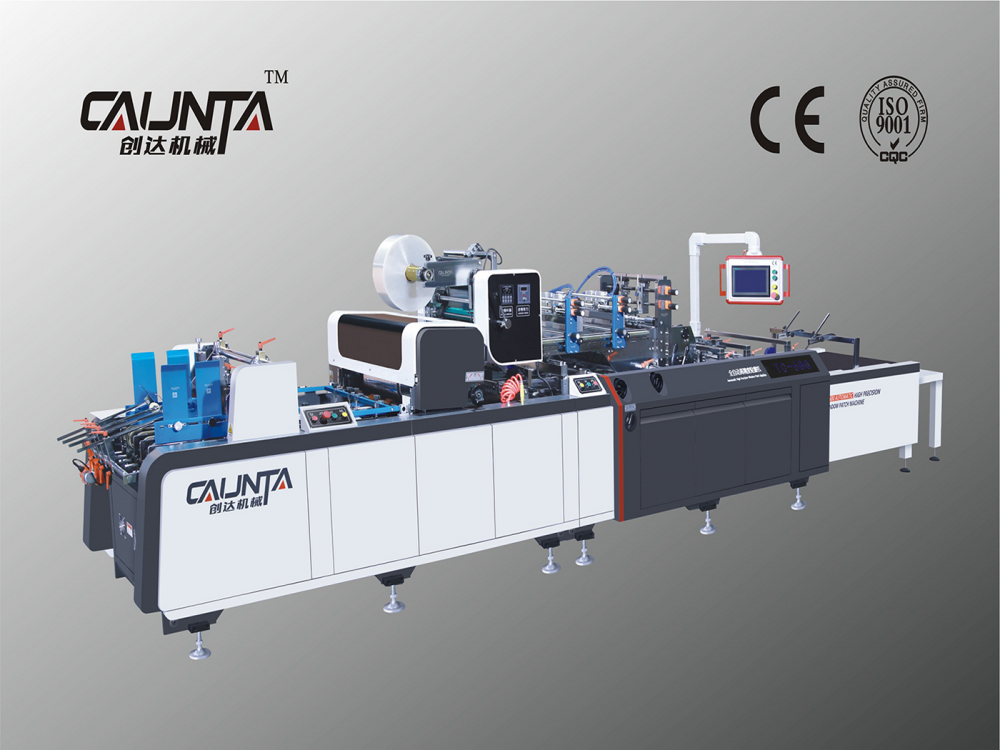

Model parameter	TC-680
Max. Paper Size	W650xL550mm
Min. Paper Size	110X110mm
Paper Weight	Kraft Paper：150-1200g/㎡ White Cardboard：230-1200g/㎡ Corrugated Paper：≤3mm
Max. Film Size	300x260mm
Min. Film Size	W30xL60mm
Max. Film Unwinding Diameter	400mm
Film Thickness	PVC:0.08-0.3mm APET/PET:0.06-0.3mm
Film Precision	±0.25mm
Maximum Speed	7000pcs/h
Quantity of Servo Motor	3 Sets Driving part：Paper feeding department 1 set ，film delivery department 1 set，film pasting belt 1 set
Quantity of Stepping Motor	1 Sets Driving Parts： Automatic paper receiving 1 set
Quantity of V-shaped Punching Mould	4 Kits
Quantity of Film Creasing Wheels	2 Kits
Power	380/415V 50/60Hz 12KW
Overall Dimension	L692xW133x165cm
Overall Weight	2800kg
